ZE750G
ZE750G

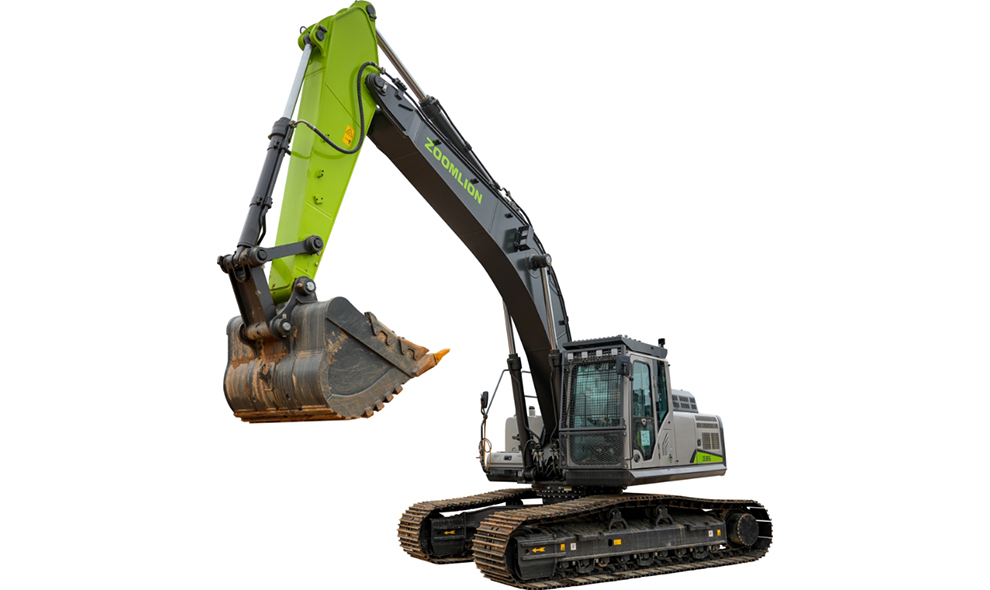

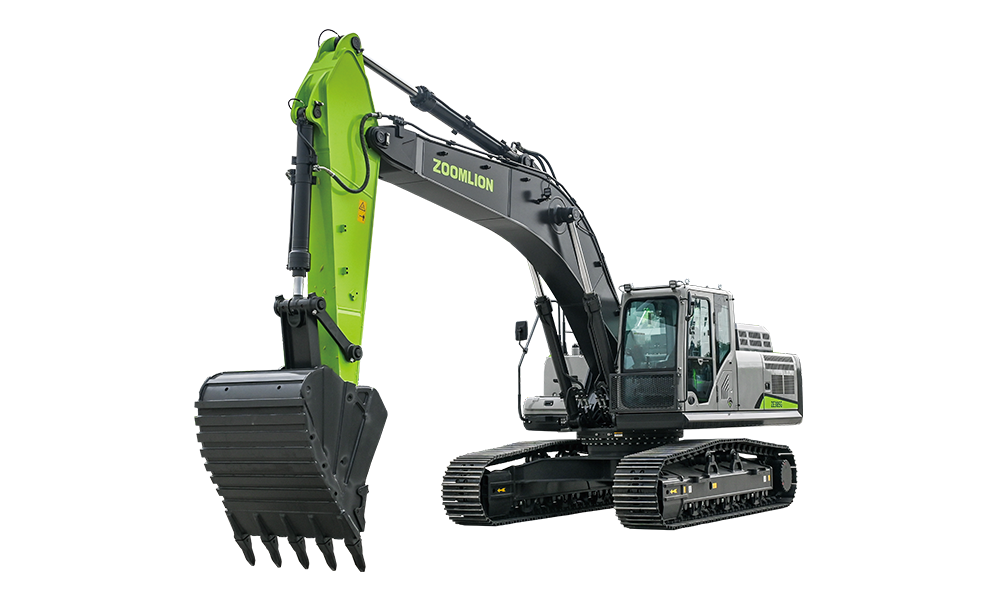

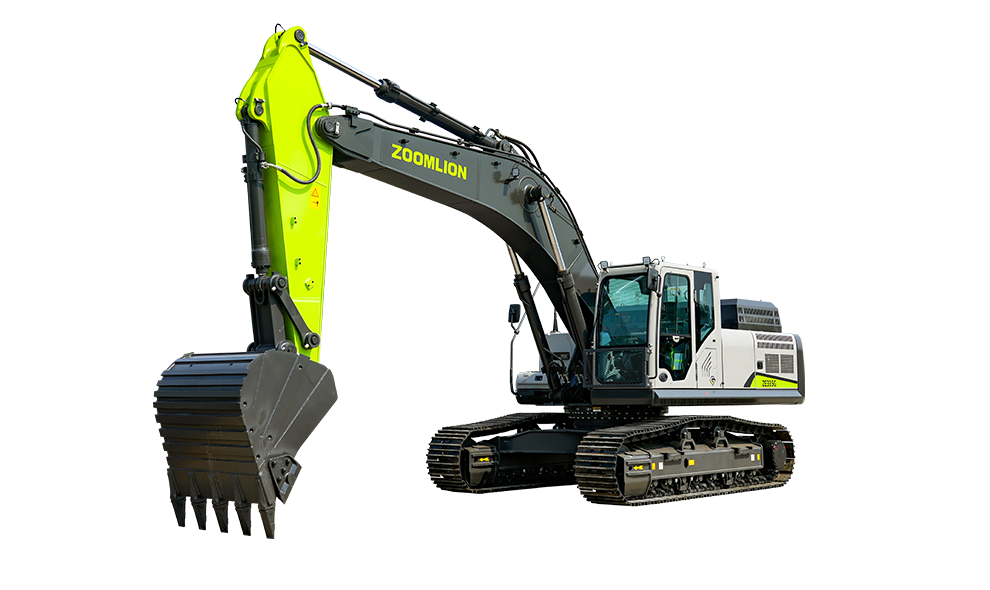

Large Excavator
ZE750G
strong power, low fuel consumption and low emissions

Zoomlion custom-imported Cummins high-power engine, with efficient and reliable emission post-treatment system, has strong power, low fuel consumption and low emissions, and meets national Ⅳ(Tier 4f、EU Stage V)emission standards.

Imported Kawasaki and Nabtesco complete set of hydraulic control system, with Zoomlion customized ESI electronic control system, to achieve a perfect match between power and hydraulic, faster response, fuel consumption reduced by 10%, work efficiency increased by 9%.

Modular design is adopted to meet one-stop inspection, Maintenance is more convenient; long-term hydraulic oil is selected, and doubling the replacement cycle,lower maintenance costs.


ZE750G
ZE750G
  • images
  • 74 t
    Operating weight
  • 373 kw
    Engine power
  • 3.6-5.4
    Bucket Capacity
  • 74 t
    Operating weight
  • 373 kw
    Engine power
  • 3.6-5.4
    Bucket Capacity
ZE750G
ZE750G
  • images
Advantage introduction
    • 10% reduction in fuel consumption;

    • work efficiency increased by 9%;

    • Mineral special extended and widened chassis;

    • long-term hydraulic oil is selected, and doubling the replacement cycle;

    • Intelligent diagnostic self test;


More Advantages
Param
ParameterUnitValue
Operating Weightkg74000
Bucket Capacity3.6-5.4
Model/X15
Engine PowerkW/rpm373/1800
DisplacementL15
Maximum torqueN·m/rpm2169/1400
Emission Standards/Tier 4f、EU Stage V
Swing Speedr/min7
Travel Speeds(Max/Min)km/h4.2/3.0
Maximum TractionkN536
Bucket Digging ForcekN397
Arm Digging ForcekN328


Operating weight 73000kg
Rated power 391kw
Standard capacity 4.1m³
Max. Digging Radius 11440mm
Max. Digging Depth 6695mm
Max. Dumping Height 7420mm
