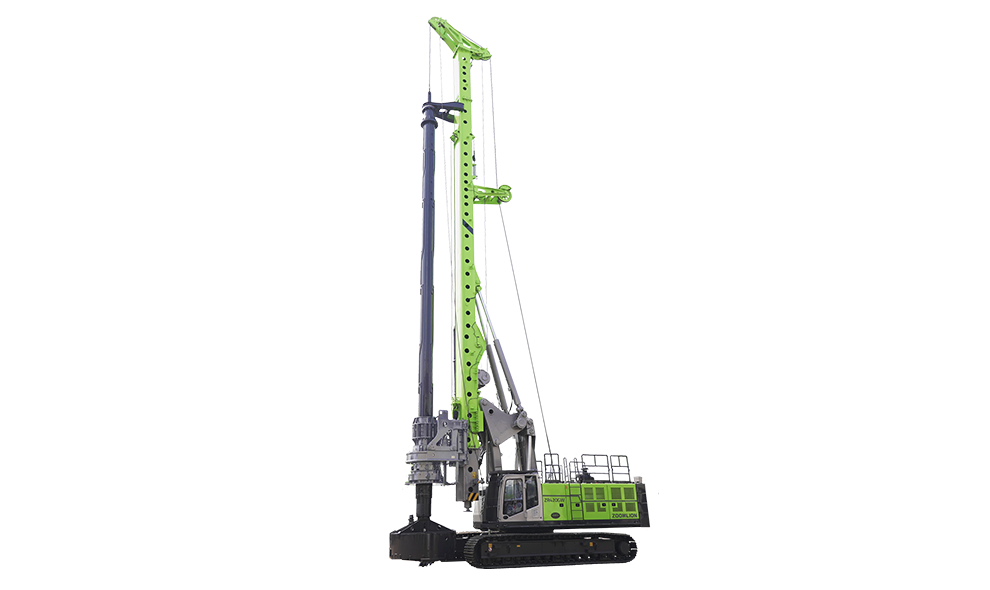

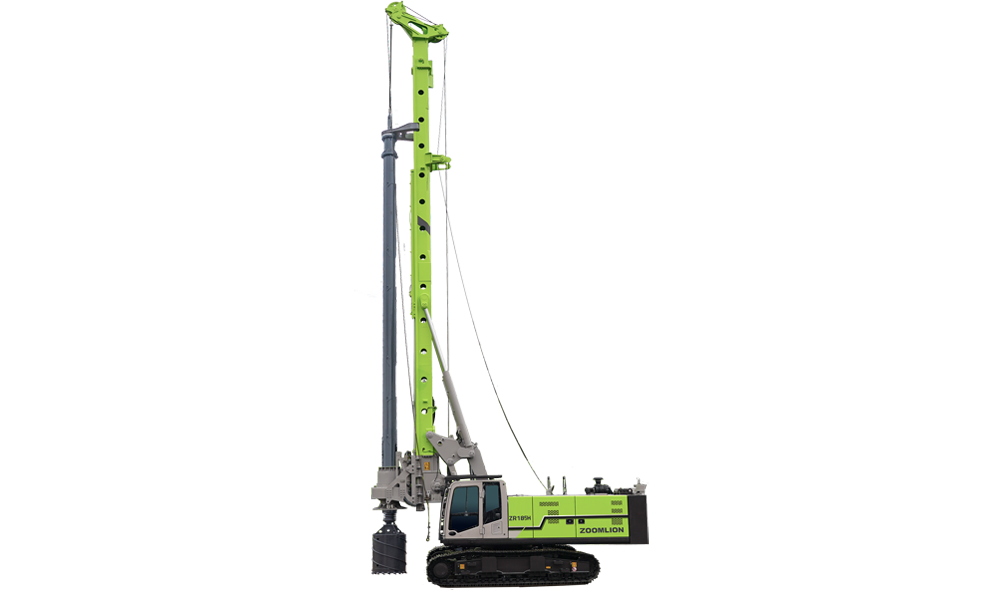

ZR360L

Rotary Drilling Rig

ZR360L

Foldable mast, overall height 3620 mm

Large mast section, double boom quadrilateral derricking mechanism, large diameter slewing ring and reinforced chassis, improving the stability and loading capacity of the machine

Three rotary drive reducers with large torque and high reserve coefficient, providing a stronger construction capacity

Large-flow main pump + multi-speed rotary drive + two-speed pressurized crowd cylinder, bringing a higher construction efficiency

New generation of electronic control platform + 360° monitoring + mobile APP information forwarding, making the operation safer and more convenient.

Get Pricing

2500 mm

Max. drlling diameter
100/65 m

Max. drlling depth
360 kN·m

Max. output torque
6-28 rpm

Rotary speed range

2500 mm

Max. drlling diameter
100/65 m

Max. drlling depth
360 kN·m

Max. output torque
6-28 rpm

Rotary speed range

Advantage introduction

The rear main winch with single-layer-rope drum and twin reducers mechanism, which extends service life of the steel wire rope significantly.
High construction efficiency thanks to big flow main pump, multi-gear rotary drive, and two-speed crowd cylinder.
More stable structure and stronger bearing capacity thanks to enhanced mast section, double movable booms with parallel luffing
mechanism, large slewing support, and reinforced chassis.
One key for folding cathead, fixed mast support, Equipment can be transferred easily and quickly.
Folding mast, overall transport height 3580mm.
New generation cab with better vision, more comfortable operation, new electrical controlpanel.360-degree full view monitoring.
Options: Auto-lubrication, spin-off.

More Advantages

Drilling

Rotary drive

Crowd system

Main winch

Aux.winch

Inclination angle of mast

Engine

Undercarriage

Overall main machine

Other

Max.drilling diameter	2500mm
Max.drilling depth	100/65m

Max. output torque	360kN ·m
Rotary speed range	6~28rpm

Crowd method	Cylinder
Crowd force push	300kN
Crowd force pull	360kN
Max. stroke crowd	6000mm

Max. line pull	340kN
Max. speed of line	72m/min
Diameter of wire rope	36mm

Max. line pull	90kN
Max. speed of line	70m/min
Diameter of wire rope	22mm

Forward/backward	5/90°
Left/right	±4°

Model	Cummins QSM11
Rate power of engine	298kW
Emission standard	Stage II
Displacement of engine	10.8L

Distance of tracks	3510~4860mm
Width of track shoe	800mm
Slewing radius	4684mm

Operation weight	108t
Max. traction force	560kN
Max. travelling speed	1.8km/h
Overall height	26.5m
Transport with Kelly bar	-
Transport height	-

Kelly bar types	Drilling depth (m)	Notes
Friction 508-6x18m	100
Inter-locking 508-4x18m	65	standard
Friction 508-6x16m	88
Inter-locking 508-4x16m	58

Max.drilling diameter	2500mm
Max.drilling depth	100/65m

Max. output torque	360kN ·m
Rotary speed range	6~28rpm

Crowd method	Cylinder
Crowd force push	300kN
Crowd force pull	360kN
Max. stroke crowd	6000mm

Max. line pull	340kN
Max. speed of line	72m/min
Diameter of wire rope	36mm

Max. line pull	90kN
Max. speed of line	70m/min
Diameter of wire rope	22mm

Forward/backward	5/90°
Left/right	±4°

Model	Cummins QSM11
Rate power of engine	298kW
Emission standard	Stage II
Displacement of engine	10.8L

Distance of tracks	3510~4860mm
Width of track shoe	800mm
Slewing radius	4684mm

Operation weight	108t
Max. traction force	560kN
Max. travelling speed	1.8km/h
Overall height	26.5m
Transport with Kelly bar	-
Transport height	-

Kelly bar types	Drilling depth (m)	Notes
Friction 508-6x18m	100
Inter-locking 508-4x18m	65	standard
Friction 508-6x16m	88
Inter-locking 508-4x16m	58
