Frame, riveted of longitudinal beams with double-layer (10+10mm) superimposed groove-shaped bending plates and five crossbeams, presents to more excellent performance of forming technology and deformation design adaptation. The use of 610L material bring the frame more reliable..
The front-suspension is the dependent leaf spring suspension, while the middle-suspension and the rear-suspension adopt the leaf spring. That enhances wheel alignment parameter stability, running stability and system reliability..
Advanced engine with output power of 480 Ps, has the performance of high-efficiency and fuel-save. By used of the three-stage oil bath air filter and the three-stage fuel filter, the dynamical system is operated to be more reliable. The usage of the imported air fan makes an excellent thermal equilibrium of machine. The split radiator is used to enhance the performance of the anti-seismic and the convenient maintenance..

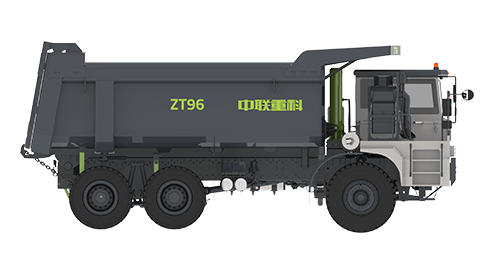

It is a product tailor-made for open-pit mines;
10+10 double-layer superimposed groove-shaped bending plates;
wheel alignment parameter stability, running stability and system reliability;
The assembly has high strength, strong load-bearing capacity；
Greatly meets the low-speed and heavy-duty requirements of users;
| Main Parameters | Unit | Value |
| Curb Weight | kg | 30000 |
| Rated Payload | kg | 62000 |
| Max. Speed | km/h | 51 |
| Max. Gradeability | r | 32 |
| Min. Turning Radius | % | 13 |
| Tires | 1 | 14.00-25 |
| Axle Payload | t | 26+35+35 |
| Engine Model | / | YC6K480-GT30 |
| Engine Displacement | L | 12.155 |
| Emission Standard | / | GB20891-2014Ⅲ |
| Rated Power | kW/rpm | 353/1900 |
| Max. Torque | N.m/rpm | 2200/(1100-1500) |
| Gearbox Model | / | FAST 8DS24OA |
| Capacity | m' | 34/40(SAE2:1) |
| Curb Weight | 30000kg |
| Rated Payload | 62000kg |
| Body volume | 34m³/40m³(SAE 2:1) |
| Engine power | 353kW(480HP) |
| Rated Power | 353/1900kW/rpm |
| Engine Model | YC6K480-GT30 |
