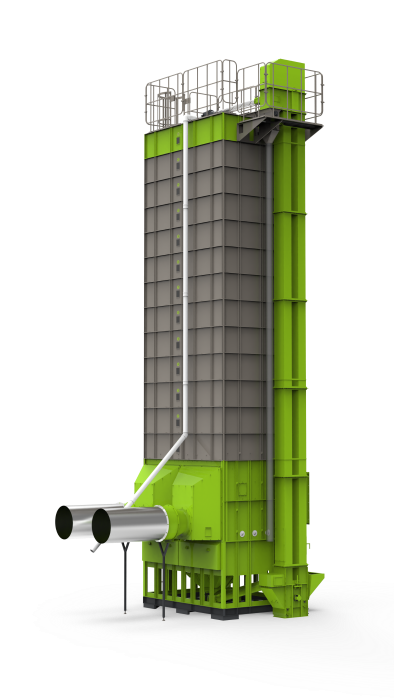

5HXG Series
5HXG Series
Grain Dryer
5HXG Series

10/15/20/30T Optional specifications

Applicable to dry various cereals

Low-speed delivery device

Intelligent electric control cabinet

Advanced thin-layer cross-flow drying process

Capable of matching biomass particles or rice husk heat sources

  • 9.74-16.57 kw
    Total power
  • 15-30 t
    Capacity
  • 9.74-16.57 kw
    Total power
  • 15-30 t
    Capacity
Advantage introduction
    • Uniform Drying & Premium Grain Quality: The 9-minute laminar drying stage combines uniform grain distribution, thin-layer

    • drying, and angled airflow dispersion for optimal consistency.

    • Uitra-Low Breakage: Achieved through high-polymer wear-resistant buckets, fiexible base scrapers, anti-jamming roller guards.

    • outward bolt heads, low-speed circulation, and anti-impact chutes.

    • Proven Durability: A decade of market-proven reliability with unwavering performance validation.Premium Configuration: Mlaintenance-free imported PEER bearings + Huada CRF hizh-temperature-resistant fans + Taibangmotors + Zhenjiang 3D bucket belts + dustproof/waterproof sensorsPrecision Engineering: aser-cut lathes + automated welding lines + electrophoretic coating systems + baking-finish processes +cable conduit protection

    • User-Friendly Operation: in-line moisture meter + operation monitoring + PLC touchscreen control + integrated electrical cabinet+ one-touch start/stop auto-drying + one-touch ventilation + easy-adjust airflow valves + simplified discharge controls.Compact Footprint: ideal for compact facilities.

    • High Adaptability: Interchangeable screen apertures + multi-fuel compatibility (gas/biomass/oil).


More Advantages
Param
ModelUnit5HXG-15W5HXG-20W5HXG-30W

Structural Type

/Batch Type CirculatingBatch Type CirculatingBatch Type Circulating
Drying Method/Direct heating/Indirect heatingDirect heating/Indirect heatingIndirect heating
Drying Process/Cross-flowCross-flowCross-flow
Machine Overall dimension(L*W*H)mm2060×2060×98752370×2240×106883080×2270×11330
Processing Capacityt152030
Hourly drying rate%/h0.5-1.20.6-1.20.6-1.2
Effective Volumem3
26.7836.7753.58
Hot Air Temperature Range30-12030-120

30-120

Air Supply Type/Negative pressureNegative pressureNegative pressure
Power supplyV/HzThree-phase four-wire system with grounding, 380V/50HzThree-phase four-wire system with grounding, 380V/50HzThree-phase four-wire system with grounding, 380V/50Hz
Total powerkW9.7411.5716.57
Heat Source Type/Biomass Hot Air Furnace、Electric Heat Pump、Oil/Gas Combustion、SteamBiomass Hot Air Furnace、Electric Heat Pump、Oil/Gas Combustion、SteamBiomass Hot Air Furnace、Electric Heat Pump、Oil/Gas Combustion、Steam
Safety device/Temperature sensor,Circuit breaker,Thermal relay,AC contactor,Overheat protection, electrical overload protection,Short circuit protection,Open circuit protection,Full load alarmTemperature sensor,Circuit breaker,Thermal relay,AC contactor,Overheat protection, electrical overload protection,Short circuit protection,Open circuit protection,Full load alarmTemperature sensor,Circuit breaker,Thermal relay,AC contactor,Overheat protection, electrical overload protection,Short circuit protection,Open circuit protection,Full load alarm
Heat Output (Thermal Power)KJ/h≥800000≥1000000≥1250000
