ZT26JE
ZT26JE

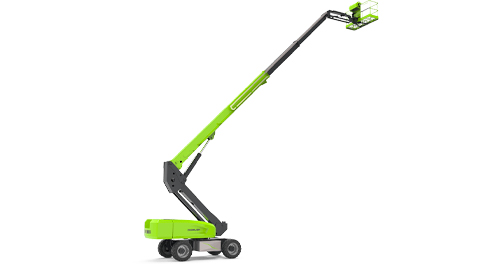

Electric Telescopic Boom Lifts
ZT26JE

Lithium-powered telescopic boom lifts, with 80-volt lithium battery that can be fully charged within 7 hours, are purpose-built for indoor applications with quiet, emission-free and cost-efficient solutions.


ZT26JE
ZT26JE
  • images
  • 28.70 m
    Work Height
  • 26.70 m
    Platform Height
  • 22.1 m
    Horizontal Outreach
  • 300/454 kg
    Platform Capacity (Unrestricted/Restricted)
  • 28.70 m
    Work Height
  • 26.70 m
    Platform Height
  • 22.1 m
    Horizontal Outreach
  • 300/454 kg
    Platform Capacity (Unrestricted/Restricted)
ZT26JE
ZT26JE
  • images
Advantage introduction
    • Customized lithium-ion battery features green, environmental protection, low noise and zero-emission, ideal for construction and plant maintenance.

    • Accurate and efficient traveling AC drive system provides strong power and stable control. Gradeability reaches 45% and motor is maintenance-free for its lifttime.

    • Large capacity lithium-ion batteries combined with excellent energy management system provide longer running time.

    • Low-temperature regenerative current control and power self-adaptive control effectively improve the safety of Li-ion battery and greatly prolong the batteries service life of at least 10%.

    • Provide a variety of standard charging plugs and 10A/16A/32A multi-power optional charging mode featuring strong charging adaptability.

    • Brand-new appearance with lightweight GFRP composite material hood and integrally formed coating features anti-corrosion, heat preservation, aging resistance and easy cleaning.

    • Assembled large-opening component box, open-close hood, and a variety of reserved inspection holes easy to service.

More Advantages
Metric / Imperial
Size
Performance
Power
Tire
Weight
Features
Work Height 28.70m
Platform Height 26.70m
Horizontal Outreach 22.1m
A - Stowed Length 11.91m
B - Stowed Width 2.49m
C - Stowed Height 2.82m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 2.80m
Tread 2.49m
G - Ground Clearance 0.41m
Platform Capacity (Unrestricted/Restricted) 300/454kg
Drive Speed (Stowed) 5.5km/h
Gradeability 45%(24°)
Turning Radius (Inside) 3.11m
Turning Radius (Outside) 6.16m
Turntable Swing 360°continuous
Platform Rotation ±90°
Tail Swing 1.61m
Jib Rotation 130°(﹣55°~75°)
Max. Wind Speed 12.5m/s
Charger 5KW/80V
Drive Motor 5.2KW
Lifting Motor 30KW
Auxiliary Power 12V DC
Hydraulic Tank 120L
Type 15-625 Foam-filled Tires
385/65-24 Solid Tires
Gross 17600kg
Standard

Horn

Proportional control

All motion alarm

Flashing beacon

Self-closing entry gate

Emergency descent system

Emergency stop button

Auto-leveling system

On-board diagnostic system

Tilt protection system

Oscillating axle

Load sensing system

4.3' Led display

Swing-out engine tray

Option

Platform work light

Anti-collision device

AC power to platform

Work Height 94ft 2in
Platform Height 87ft 7in
Horizontal Outreach 82ft 6in
A - Stowed Length 39ft 1in
B - Stowed Width 8ft 2in
C - Stowed Height 9ft 3in
D - Platform Length 8ft
E - Platform Width 3ft
F - Wheelbase 9ft 2in
Tread 6ft 11in
G - Ground Clearance 1ft 4in
Platform Capacity (Unrestricted/Restricted) 660/1000lb
Drive Speed (Stowed) 3.42mph
Gradeability 45%(24°)
Turning Radius (Inside) 10ft 2in
Turning Radius (Outside) 20ft 3in
Turntable Swing 360°continuous
Platform Rotation ±90°
Tail Swing 5ft 3in
Jib Rotation 130°(﹣55°~75°)
Max. Wind Speed 28mph
Charger 5KW/80V
Drive Motor 5.2KW
Lifting Motor 30KW
Auxiliary Power 12V DC
Hydraulic Tank 32 US gal
Type 15-625 Foam-filled Tires
385/65-24 Solid Tires
Gross 39462lb
Standard

Horn

Proportional control

All motion alarm

Flashing beacon

Self-closing entry gate

Emergency descent system

Emergency stop button

Auto-leveling system

On-board diagnostic system

Tilt protection system

Oscillating axle

Load sensing system

4.3' Led display

Swing-out engine tray

Option

Platform work light

Anti-collision device

AC power to platform
