DV3504
DV3504

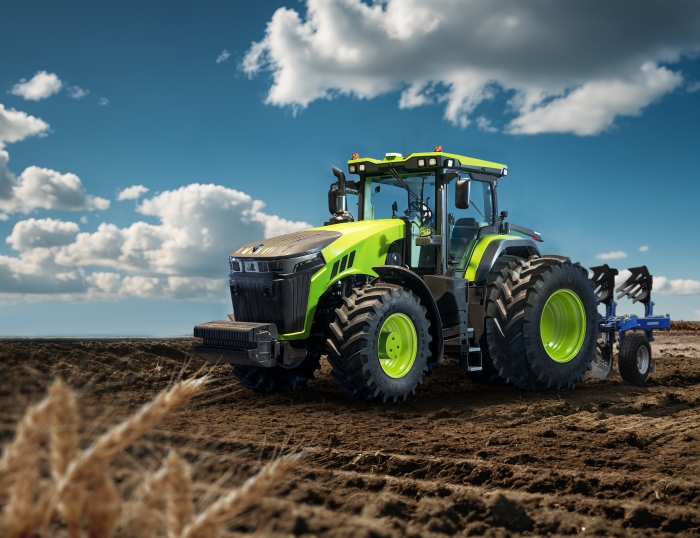

Wheeled Tractor
DV3504

MiDD-Meshed intelligened Direct Drive

Hybrid power/Range-extended electric tractor

Hydraulic output flow rate 160/220 L/min -0-40 km/h stepless speed change 360° Panoramic video surveillance

Intelligent pressure cabin & human machine interaction platform


DV3504
DV3504
DV3504
DV3504
DV3504
DV3504
DV3504
  • images
  • 350 hp
    Horse Power
  • CVT with AMT
    Number of gears
  • 13000 kg
    Weight
  • 350 hp
    Horse Power
  • CVT with AMT
    Number of gears
  • 13000 kg
    Weight
DV3504
DV3504
DV3504
DV3504
DV3504
DV3504
DV3504
  • images
Advantage introduction
    • Adopt the integrated design ofpower generation and start-up, which greatlyimproves the start-up capacity in cold areas and easily copes with lowtemperature conditions.

    • 2 gears, multi-mode electronic control shifting, to achieve 0-40km/hstepless speed change, to adapt to various precision operation speedrequirements.

    • Dual-motor power coupling technology is adopted, which has strong abilityto operate under heavy load and get out of trouble.

    • The driving adopts the motor direct drive technology, which makes the startsmoother and drive without power jumps.

    • The power output adopts motor direct drive technology, which realises moredirect power transmission, softer acceleration and effectively protects thesystems.

    • Adopt ergonomic design joystick, reversing and acceleration and decelera-tion control is more smoother and more efficient.

    • The cold and warm storage box is used in the cab to bring home care to thedriver.

    • High-definition cameras are set at the front of the hood and the rear of thecab to improve the driver's vision, make it more convenient to hook up theworking tools, and make the operation safer.

    • The wide cushion air suspension rotatable seat reduces tiredness and easilycopes with long-term work.


More Advantages
Param
ModelUnitDV3504
Overall dimension (L×W × H)mm6446×3050×3450
Wheelbasemm3100
Minimum mass during operationkg13000
Minimum ground clearancemm≥430 (Tilting traction)
Engine emission/National III
Rated powerkW257..4
Cluth type/Torsional Vibration Damper (Coupling)
Number of gears of the gearbox/CVT with AMT
Tyre size (front wheel / rear wheel)/600/70R30,710/70R42
Type of hydraulic lifting system/Split type
Maximum lifting capacitykN≥90
Tillage control method/Electrohydraulic control
Hydraulic output multiway valve/Five position electro-hydraulic proportional multi way valve
Hydraulic hitch/Three-point rear suspension,category 4N
Hydraulic output flow rate
L/min120/227
Traction forceKN≥113
PTO output powerr/min0-1000
Powertrain type/Hybrid
Safety shelf or cab/Air-conditioned cab
