ZT34J
ZT34J

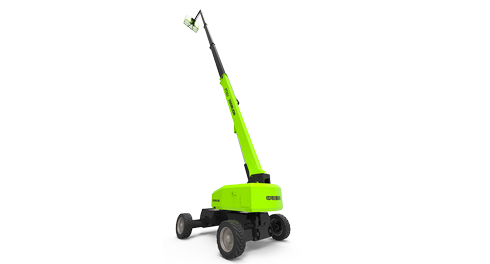

Diesel Telescopic Boom Lifts
ZT34J

Diesel-powered telescopic boom lifts can get the work done at height with super efficiency in large-scale, outdoor constructions and industrial applications.


ZT34J
ZT34J
  • images
  • 36 m
    Work Height
  • 34 m
    Platform Height
  • 24.2 m
    Horizontal Outreach
  • 300/454 kg
    Platform Capacity (Unrestricted/Restricted)
  • 36 m
    Work Height
  • 34 m
    Platform Height
  • 24.2 m
    Horizontal Outreach
  • 300/454 kg
    Platform Capacity (Unrestricted/Restricted)
ZT34J
ZT34J
  • images
Advantage introduction
    • Perform dual capacity design, up to 300/454kg (660/1000lb)

    • Rough terrain chassis features swing axle function, easy to achieve 45% gradeability

    • Creative outrigger telescopic method; strong field applicability, low telescopic failure rate, and effective prevention of abnormal tire wear (option)

    • Smooth & stable boom extension, the telescopic efficiency of the boom is increased by 30% compared with that of the double-cylinder telescopic boom

    • Better work envelop performance, 10% larger than competitor

More Advantages
Metric / Imperial
Size
Performance
Power
Tire
Weight
Features
Work Height 36m
Platform Height 34m
Horizontal Outreach 24.2m
A - Stowed Length 13.50m
B - Stowed Width 2.49m
C - Stowed Height 3m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 3.81m
Tread 2.49/3.87m
G - Ground Clearance 0.41m
Platform Capacity (Unrestricted/Restricted) 300/454kg
Drive Speed (Stowed) 5km/h
Gradeability 45%(24°)
Turning Radius (Inside) 3.3/7.7m
Turning Radius (Outside) 8.2/10.8m
Turntable Swing 360°continuous
Platform Rotation ±90°
Tail Swing 1.20m
Jib (Range of Articulation) 130°(﹣55°~75°)
Max. Wind Speed 12.5m/s
Engine Cummins QSF 2.8 54kW/2400rpm
Fuel Tank Capacity 200L
Control Voltage 12V DC
Hydraulic Tank Capacity 250L
Drive Mode 4WD
Steering Mode Four wheels/Front wheel/Crab
Type IN445/50D710 Foam-filled Tires
Gross 19300kg
Standard

Horn

Proportional control

Al motion alarm

Flashing beacon

Self-closing entry gate

Emergency descent system

Emergency stop button

Auto-leveling system

On-board diagnostic system

Tilt protection system

Oscillating axle

Load sensing system

4.3' Led display

Swing-out engine tray


Option

Platform work light

Anti-collision device

AC power to platform

Outrigger in-situ telescopic function


Work Height 118ft 1in
Platform Height 111ft 7in
Horizontal Outreach 79ft 5in
A - Stowed Length 44ft 3in
B - Stowed Width 8ft 2in
C - Stowed Height 9ft 10in
D - Platform Length 8ft
E - Platform Width 3ft
F - Wheelbase 12ft 6in
Tread 8ft 2in/12ft 8in
G - Ground Clearance 1ft 4in
Platform Capacity (Unrestricted/Restricted) 660/1000lb
Drive Speed (Stowed) 3.1mph
Gradeability 45%(24°)
Turning Radius (Inside) 10ft 10in/25ft 3in
Turning Radius (Outside) 26ft 11in/35ft 5in
Turntable Swing 360°continuous
Platform Rotation ±90°
Tail Swing 3ft 11in
Jib (Range of Articulation) 130°(﹣55°~75°)
Max. Wind Speed 28mph
Engine Cummins QSF 2.8 54kW/2400rpm
Fuel Tank Capacity 52.8 (us gal)
Control Voltage 12V DC
Hydraulic Tank Capacity 66 (us gal)
Drive Mode 4WD
Steering Mode Four wheels/Front wheel/Crab
Type IN445/50D710 Foam-filled Tires
Gross 42549lb
Standard

Horn

Proportional control

Al motion alarm

Flashing beacon

Self-closing entry gate

Emergency descent system

Emergency stop button

Auto-leveling system

On-board diagnostic system

Tilt protection system

Oscillating axle

Load sensing system

4.3' Led display

Swing-out engine tray


Option

Platform work light

Anti-collision device

AC power to platform

Outrigger in-situ telescopic function
