ZX27AE

Spider Lift

ZX27AE

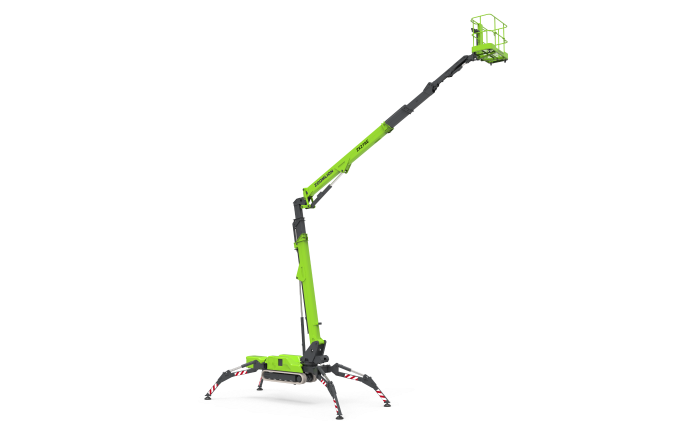

ZX27AE spider lift features lithium electric power, electric drive walking, compact structure, excellent off-road performance and passing performance, providing higher working height and longer battery life in the industry. It can meet the construction needs of various working conditions, especially in the indoor operation of large-scale buildings such as airport, railway stations, science and technology museums, shopping mall, gymnasiums and hotels. The chassis is small in width and light in weight ideal for narrow doorways and indoor compact space applications. It has low floor load pressure, strong off-road capability, and automatic leveling of outriggers, which can meet various complex indoor and outdoor conditions. It is a product with a wide range of applications, strong site adaptability and flexible operation.

Get Pricing

images

27 m

Work Height
14.2 m

Horizontal Outreach
12.7 m

Up and Over Height
230 kg（unrestricted）

Platform Capacity

27 m

Work Height
14.2 m

Horizontal Outreach
12.7 m

Up and Over Height
230 kg（unrestricted）

Platform Capacity

images

Advantage introduction

0.89m ultra-narrow width, quick-change work platform, easy access to compact spaces
Pure lithium-ion battery power features environmental protection and quiet operation
Accuate and efficient permanent magnet synchronous motor provides strong power and stable control
Non-marking rubber track suitable for all terrains
Central layout, great structural rigidity, and small boom deflection
Bus hydraulic valve control system offers stable and reliable movement
Advanced energy management system supports synchronous power supply from external power supply, providing long-lasting battery life

More Advantages

Metric / Imperial

Size

Performance

Power

Tire

Weight

Features

Work Height	27m
Platform Height	25m
Horizontal Outreach	14.2m
Up and Over Height	12.7m
Below Ground Reach	5.8m
A - Stowed Length (w/ platform）	6.15m
D - Stowed Length (w/o platform)	5.7m
B - Stowed Width	0.89m
C - Stowed Height	2.05m
E - Platform Length	1.4m
F - Platform Width	0.7m
G - Platform Height	1.25m
H - Crawler Size (Length×Width)	1.52m×0.25m
I - Max Length w/ Outrigger Extending (Standard)	4.95m
J - Max Width w/ Outrigger Extending (Standard)	4.48m
K - Max Length w/ Outrigger Extending (Narrow)	6.45m
L - Max Width w/ Outrigger Extending (Narrow)	2.88m
Outrigger Pad Size (Diameter)	0.26m
Approach Angle	15°
Depature Angle	24°

Platform Capacity	230kg（restricted）/120kg（unrestricted）
Drive Speed	2km/h&&
Gradeability	16.7°/30%
Allowable Tilting Angle When Driving	10°/17%
Turntable Swing	400° non-continuous
Platform Rotation	±90°
H-Tail Swing	0m
Max Leveling Angle	16°
Max Wind Speed	12.5m/s

Battery	315Ah 48V
Charger	48V/60A
Drive Motor	Permanent magnet synchronous motor 48V
Lift Motor	Permanent magnet synchronous motor 48V
Auxiliary Power	Electric pump
Hydraulic Tank Capacity	50L

Crawler type	K250×47×88 non-marking rubber crawler belt

Crawler type

K250×47×88 non-marking rubber crawler belt

Gross weight	4650kg
Ground Pressure When Driving	33.68kN/m²
Ground Pressure When Working (Standard)	2.05kN/m²
Ground Pressure When Working (Narrow)	2.45kN/m²
Pressure on Single Outrigger When Working	31.89KN

Standard

Horn

Proportional control

All motion alarm

Flashing beacon

Self-closing entry gate

Emergency descent system

Emergency stop button

Auto-leveling system

On-board diagnostic system

Tilt protection system

Load sensing system

4.3' Led display

Swing-out engine tray

Anemograph

Option

Platform work light

Anti-collision device

Work Height	88ft 7in
Platform Height	82ft
Horizontal Outreach	49ft 7in
Up and Over Height	41ft 8in
Below Ground Reach	19ft
A - Stowed Length (w/ platform）	20ft 2in
D - Stowed Length (w/o platform)	18ft 8in
B - Stowed Width	2ft 11in
C - Stowed Height	6ft 9in
E - Platform Length	4ft 7in
F - Platform Width	2ft 4in
G - Platform Height	4ft 1in
H - Crawler Size (Length×Width)	4ft 11in × 10in
I - Max Length w/ Outrigger Extending (Standard)	16ft 3in
J - Max Width w/ Outrigger Extending (Standard)	14ft 8in
K - Max Length w/ Outrigger Extending (Narrow)	21ft 2in
L - Max Width w/ Outrigger Extending (Narrow)	9ft 5in
Outrigger Pad Size (Diameter)	10ft
Approach Angle	15°
Depature Angle	24°

Platform Capacity	510lb (restricted)/265lb (unrestricted)
Drive Speed	2km/h&&
Gradeability	16.7°/30%
Allowable Tilting Angle When Driving	10°/17%
Turntable Swing	400° non-continuous
Platform Rotation	±90°
H-Tail Swing	0m
Max Leveling Angle	16°
Max Wind Speed	27.96mph

Battery	315Ah 48V
Charger	48V/60A
Drive Motor	Permanent magnet synchronous motor 48V
Lift Motor	Permanent magnet synchronous motor 48V
Auxiliary Power	Electric pump
Hydraulic Tank Capacity	50L

Crawler type	K250×47×88 non-marking rubber crawler belt
