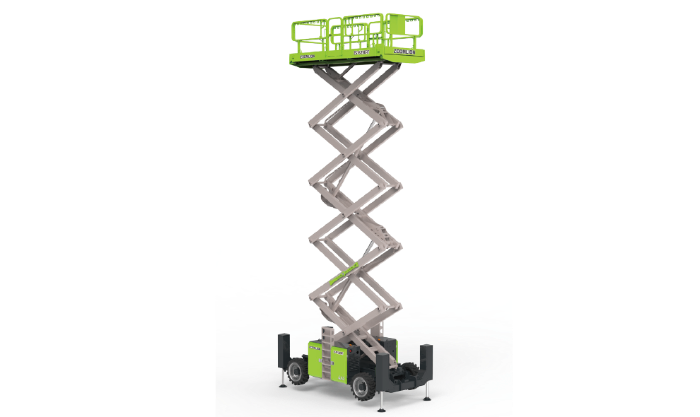

ZS1023RT/ZS1323RT adopts modern design such as modularization, light weight, commonalization and intelligence and provides large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 40%, it can adapt to all kinds of extreme access jobs. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. POST (power on self test), and maintenance alert for efficient fleet management.
High Performance
Strong capacity of 680kg with high working efficiency
4WD and axle oscillation provide great off-road capability
One-Click leveling function
Bilateral power system effective to lower noise
Cost Effectiveness
Knuckles lubrication-free and maintenance-free
Swing-out tray easy to service
| Work Height | 12m |
| A Platform Height-Elevated | 10m |
| B Platform Height-Stowed | 1.63m |
| C Platform Dimension (Length) | 3.98m |
| D Platform Dimension (Width) | 1.83m |
| Platform Extension | 1.3m |
| Overall Height (Rails Up) | 2.74m |
| E Overall Height (Rails Down) | 2.05m |
| F Overall Length | 4.88m/3.98m |
| G Overall Width | 2.3m |
| H Wheelbase | 2.9m |
| I Ground Clearance | 0.275m |
| Platform Capacity | 1150kg |
| Capacity on Deck Extension | 230kg |
| Drive Height | 10m |
| Max. Number of Workers | 7 |
| Drive Speed (Stowed) | 6.5km/h |
| Drive Speed (Raised) | 0.5km/h |
| Turning Radius (Inside) | 2.75m |
| Turining Radius (Outside) | 5.8m |
| Up/Down Time | 45/40s |
| Gradeability | 50%(28°) |
| Max. Working Slope (Lateral/Vertical) | 2°/3° |
| Drive | 4WD |
| Tire | 33×12-20/8 Solid Tire |
| Engine | V2403-CR-E5B-ZML-2 |
| Engine Power | 36.8kw/2700rpm |
| Fuel Tank Capacity | 105L |
| Diesel Tank | 100L |
| Gross | 7350kg/6450kg |
| Work Height | 39ft 4in |
| A Platform Height-Elevated | 32ft 10in |
| B Platform Height-Stowed | 5ft 4in |
| C Platform Dimension (Length) | 13ft 1in |
| D Platform Dimension (Width) | 6ft |
| Platform Extension | 4ft 3in |
| Overall Height (Rails Up) | 9ft |
| E Overall Height (Rails Down) | 6ft 9in |
| F Overall Length | 16ft/13ft 1in |
| G Overall Width | 7ft 7in |
| H Wheelbase | 9ft 6in |
| I Ground Clearance | 11in |
| Platform Capacity | 2535lb |
| Capacity on Deck Extension | 510lb |
| Drive Height | 32ft 10in |
| Max. Number of Workers | 7 |
| Drive Speed (Stowed) | 4mph |
| Drive Speed (Raised) | 0.3mph |
| Turning Radius (Inside) | 9ft |
| Turining Radius (Outside) | 19ft |
| Up/Down Time | 45/40s |
| Gradeability | 50%(28°) |
| Max. Working Slope (Lateral/Vertical) | 2°/3° |
| Drive | 4WD |
| Tire | 33×12-20/8 Solid Tire |
| Engine | V2403-CR-E5B-ZML-2 |
| Engine Power | 36.8kw/2700rpm |
| Fuel Tank Capacity | 27.7 (us gal) |
| Diesel Tank | 26.4 (us gal) |
| Gross | 16200lb/14220lb |
