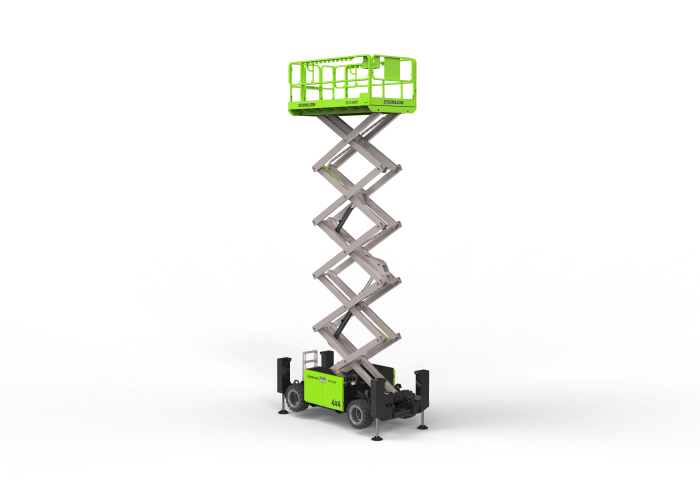

ZS1323RT

Rough Terrain Scissor Lift

ZS1323RT

ZS1023RT/ZS1323RT adopts modern design such as modularization, light weight, commonalization and intelligence and provides large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 40%, it can adapt to all kinds of extreme access jobs. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. POST (power on self test), and maintenance alert for efficient fleet management.

Get Pricing

Manual Download

15 m

Work Height
680 kg

Platform Capacity
50 %

Gradeability
230 kg

Capacity on Deck Extension

15 m

Work Height
680 kg

Platform Capacity
50 %

Gradeability
230 kg

Capacity on Deck Extension

Advantage introduction

High Performance

Strong capacity with high working efficiency;

4WD and axle oscillation provide great off-road capability;

Click-to-level function;

Bilateral power system effective to lower noise.

Cost Effectiveness

Knuckles lubrication-free and maintenance-free;

Swing-out tray easy to service.

More Advantages

Metric / Imperial

Size

Performance

Power

Weight

Work Height	15m
A Platform Height-Elevated	13m
B Platform Height-Stowed	1.83m
C Platform Dimension (Length)	3.98m
D Platform Dimension (Width)	1.83m
Platform Extension	1.3m
Overall Height (Rails Up)	2.95m
E Overall Height (Rails Down)	2.26m
F Overall Length	4.88m/3.98m
G Overall Width	2.3m
H Wheelbase	2.9m
I Ground Clearance	0.275m

Platform Capacity	680kg
Capacity on Deck Extension	230kg
Drive Height	13m
Max. Number of Workers	7
Drive Speed (Stowed)	6.5km/h
Drive Speed (Raised)	0.5km/h
Turning Radius (Inside)	2.75m
Turining Radius (Outside)	5.8m
Up/Down Time	48/52s
Gradeability	50%（28°）
Max. Working Slope (Lateral/Vertical)	2°/3°
Drive	4WD
Tire	33×12-20/8 Solid Tire

Engine	V2403-CR-E5B-ZML-2
Engine Power	36.8kw/2700rpm
Fuel Tank Capacity	105L
Diesel Tank	100L

Gross	7850kg/6950kg

Gross

7850kg/6950kg

Work Height	49ft 3in
A Platform Height-Elevated	42ft 8in
B Platform Height-Stowed	6ft
C Platform Dimension (Length)	13ft 1in
D Platform Dimension (Width)	6ft
Platform Extension	4ft 3in
Overall Height (Rails Up)	9ft 8in
E Overall Height (Rails Down)	7ft 5in
F Overall Length	16ft/13ft 1in
G Overall Width	7ft 7in
H Wheelbase	9ft 6in
I Ground Clearance	11in

Platform Capacity	1500lb
Capacity on Deck Extension	510lb
Drive Height	42ft 8in
Max. Number of Workers	7
Drive Speed (Stowed)	4mph
Drive Speed (Raised)	0.3mph
Turning Radius (Inside)	9ft
Turining Radius (Outside)	19ft
Up/Down Time	48/52s
Gradeability	50%（28°）
Max. Working Slope (Lateral/Vertical)	2°/3°
Drive	4WD
Tire	33×12-20/8 Solid Tire

Engine	V2403-CR-E5B-ZML-2
Engine Power	36.8kw/2700rpm
Fuel Tank Capacity	27.7 (us gal)
Diesel Tank	26.4 (us gal)

Gross	17310lb/15320lb

Gross

17310lb/15320lb
