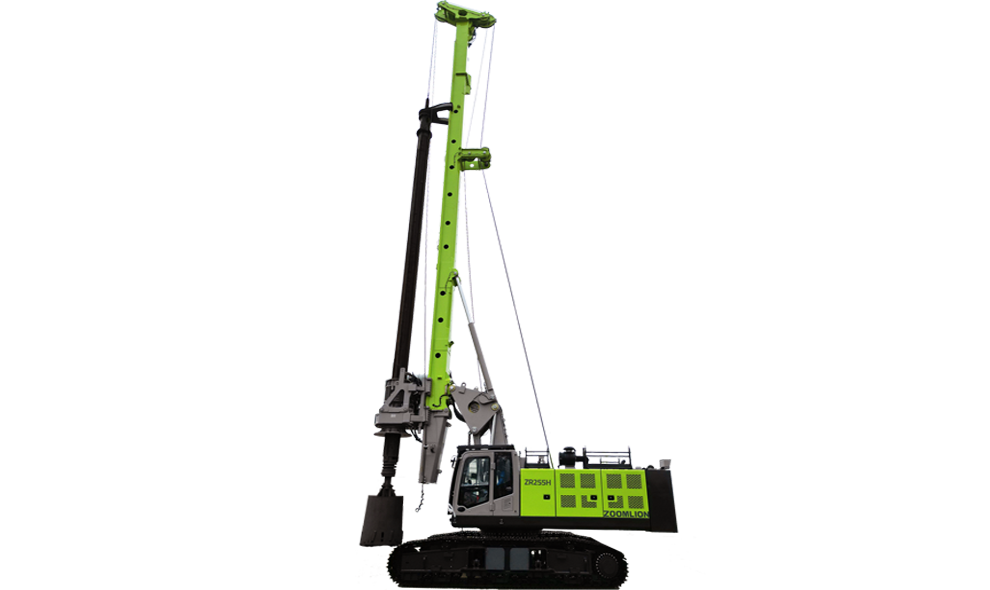

ZR255H
ZR255H
Rotary Drilling Rig
ZR255H

The rotary drive's torque reaches up to 260 kn-m,featuring multi-gear control for various  conditions   such   as   standard,soil,heavily   weathered,and    rocky    layers,as   wellas    soil   ejection,   ensuring  strong  adaptability,especially  effective  in  soil  discharge;The rotary drive's torque reaches up to 260 kn-m,featuring multi-gear control for various  conditions   such   as   standard,soil,heavily   weathered,and    rocky    layers,as   wellas    soil   ejection,   ensuring  strong  adaptability,especially  effective  in  soil  discharge

  • 6-30 Rpm
    Rotation speed
  • 260 kN.m
    Max. output torque
  • 56/70 m
    Max.drilling depth
  • 2000 mm
    Max.drilling diameter
  • 6-30 Rpm
    Rotation speed
  • 260 kN.m
    Max. output torque
  • 56/70 m
    Max.drilling depth
  • 2000 mm
    Max.drilling diameter
Advantage introduction

    The    fifth-generation    rotary     drive,with    a    two-stage     buffering    system    and     three-tier    shock    absorption   measures,substantially   reduces   vibrations    during operation;Equipped   with   the   functions   of   one   click   soil   throwing,one   click   hole   scanning,and   automatic    positioning  of  anchor  suspension,reducing  the   labor  intensity  of  the  operator

More Advantages
Drilling
Rotary drive
Crowd system
Main winch
Aux.winch
Inclination angle of mast
Engine
Chassis
Overall main machine
Max.drilling diameter 2000mm
Max.drilling depth 56/70
Max. output torque 260kN.m
Rotary speed range 6-30 Rpm
Crowd method Cylinder
Crowd force push 220kN
Crowd force pull 260kN
Max. stroke crowd 5.3m
Max. line pull 240kN
Max. speed of line 70m/min
Diameter of wire rope 32mm
Max. line pull 90kN
Max. speed of line 80m/min
Diameter of wire rope 22mm
Forward/backward /
Left/right /
Model Cummins QSL8.9
Rate power of engine 264/2200kW
Emission standard Stage Ⅲ
Displacement of engine 8.9L
Distance of tracks 5850mm
Width of track shoe 800mm
Slewing radius 4472mm
Operation weight 84t
Max. traction force /
Max. travelling speed /
Overall height 23220mm
Transport with Kelly bar yes
Transport height 3572mm
Max.drilling diameter 2000mm
Max.drilling depth 56/70
Max. output torque 260kN.m
Rotary speed range 6-30 Rpm
Crowd method Cylinder
Crowd force push 220kN
Crowd force pull 260kN
Max. stroke crowd 5.3m
Max. line pull 240kN
Max. speed of line 70m/min
Diameter of wire rope 32mm
Max. line pull 90kN
Max. speed of line 80m/min
Diameter of wire rope 22mm
Forward/backward /
Left/right /
Model Cummins QSL8.9
Rate power of engine 264/2200kW
Emission standard Stage Ⅲ
Displacement of engine 8.9L
Distance of tracks 5850mm
Width of track shoe 800mm
Slewing radius 4472mm
Operation weight 84t
Max. traction force /
Max. travelling speed /
Overall height 23220mm
Transport with Kelly bar yes
Transport height 3572mm
