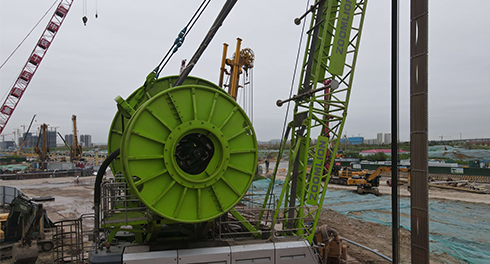

ZC40
ZC40
Trench Cutter
ZC40

This product adopts full telecontrol system, with higher intelligence and better comfort. The mud pipe, hydraulic pipe and cable following system is fully automatic, with adaptive control of tensioning tension depth and real-time follow-up of milling device.

Get Pricing
ZC40
ZC40
  • images
  • 2x100 kN·m
    Max. milling torque
  • 450 m³/h
    Max. Slag discharge flow
  • 30-40 t
    Weight of milling device
  • 1.8 m
    Max. cutting width
  • 2x100 kN·m
    Max. milling torque
  • 450 m³/h
    Max. Slag discharge flow
  • 30-40 t
    Weight of milling device
  • 1.8 m
    Max. cutting width
ZC40
ZC40
  • images
Advantage introduction

    • High power of milling and slagging system, high speed milling without overload.

    • Large push plate, thousand graded tilt sensor, realize slotting accuracy within 3‰.

    • Milling device Z-axis angle fine-tuning mechanism, the equipment is more convenient for slotting and seating.

    • Special chassis, layered design, staggered layout, convenient maintenance.

    • Truss support, wire rope variable amplitude structure, large working amplitude, can realize tool holder reverse stand, milling slot specification switching more convenient.

More Advantages
Performance parameters
Parameters of main winch
Parameters of milling device
Engine parameters
Travelling mechanism
Complete machine
Max, milling torque 2×100kN.m
Max.slag discharge flow 450m3/h
Weight of milling device 30~40t
Max. cutting width 1.8m
Cutting depth 80/120m
Cutting precision 3‰
Max. lifting force 720kN
Max. lifting speed 15m/min
Max. feed speed 2m/min
Max. working range 6200mm
Max.pulling force 180kN
Max.rope speed 62m/min
Max. feed rope speed 8m/min
Diameter of wire rope 26mm
Max. output torque 100kN.m
Max. output speed 25rpm
Rated power of mud pump 120kW
Through-flow diameter of mud pump 150mm
Rated flow of mud pump 450m³/h
Specifications of milling wheels 0.8/1.0/1.2/1.5/1.8m
Form of milling wheels Dipper/Round teeth
Max.weight of miling device 40t
Length of miling device 13m
Rotational angle ±15
Frame thickness 730mm
Model CAT C27
Rated power of engine 653/1800kW/rpm
Emission standard Stage Ⅲ
Displacement of engine 27.03L
Contact length of crawler 5860mm
Distance of tracks(min.-max.) 4050~5500mm
Width of track shoe 1000mm
Traction force 952kN
Overall dimension(length, width and height) 12783*7298*23034mm
Overall dimension(length, width and height) 13083*3500*3341mm
Mast structure type Lattice
Slewing radius of the rear 6374mm
Operation weight 172t
