ZR185
ZR185

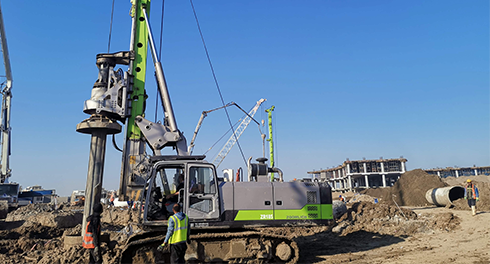

Rotary Drilling Rig
ZR185

Saving time：The whole machine can be transported with Kelly bar Higher efficiency：full set of imported hydraulic system; Adoption of large displacement main pump and optimizing power system. 2 speeds ( high + low) for lifting and lowering rotary head.Comfortable, safe, intelligent：New generation cab, optimize control panel & monitor screen position. “One button for soil-discharge, one button for hole-cleaning”

Get Pricing
ZR185
ZR185
  • images
  • 1500 mm
    Max. drlling diameter
  • 56/44
    Max. drlling depth
  • 185 kN·m
    Max. output torque
  • 5-33 rpm
    Rotary speed range
  • 1500 mm
    Max. drlling diameter
  • 56/44
    Max. drlling depth
  • 185 kN·m
    Max. output torque
  • 5-33 rpm
    Rotary speed range
ZR185
ZR185
  • images
Advantage introduction

    • The whole machine can be transported with Kelly bar to realize quick transfer between operation and transportation.

    • Only one trailer for transporting the whole machine, each time the transportation cost is saved by 30%.

    • Stronger construction ability thanks to rotary drive with large torque.

    • High construction efficiency thanks to big flow main pump, multi-gear rotary drive, and two-speed crowd cylinder.

    • More stable structure and stronger bearing capacity thanks to enhanced mast section, lower center of gravity, large slewing support. and reinforced chassis.

    • New generation cab with better vision. More comfortable operation, new electrical controlpanel.360-degree full view monitoring.

    • Options: Remote control，auto-lubrication, spin-off.

More Advantages
Drilling
Rotary drive
Crowd system
Main winch
Aux.winch
Inclination angle of mast
Engine
Undercarriage
Overall main machine
Other
Max.drilling diameter 1500mm
Max.drilling depth 56/44m
Max. output torque 185kN ·m
Rotary speed range 5~33rpm
Crowd method Cylinder
Crowd force push 160kN
Crowd force pull 160kN
Max. stroke crowd 4500mm
Max. line pull 160kN
Max. speed of line 80m/min
Diameter of wire rope 26mm
Max. line pull 80kN
Max. speed of line 80m/min
Diameter of wire rope 22mm
Forward/backward 5/90°
Left/right ±3.5°
Model Cummins QSC8.3
Rate power of engine 181kW
Emission standard Stage Ⅲ
Displacement of engine 8.3L
Distance of tracks 3000~4000mm
Width of track shoe 700mm
Slewing radius 3950mm
Operation weight 55t
Max. traction force 330kN
Max. travelling speed 2.1km/h
Overall height 18.8/(20.3)m
Transport with Kelly bar Yes
Transport height 3588mm
Kelly bar TypesDrilling depth(m)Notes
Friction 406-5x12m56
Inter-locking 406-4x12m44standard
Friction 406-5x13.5m62with extra mast extension
Max.drilling diameter 1500mm
Max.drilling depth 56/44m
Max. output torque 185kN ·m
Rotary speed range 5~33rpm
Crowd method Cylinder
Crowd force push 160kN
Crowd force pull 160kN
Max. stroke crowd 4500mm
Max. line pull 160kN
Max. speed of line 80m/min
Diameter of wire rope 26mm
Max. line pull 80kN
Max. speed of line 80m/min
Diameter of wire rope 22mm
Forward/backward 5/90°
Left/right ±3.5°
Model Cummins QSC8.3
Rate power of engine 181kW
Emission standard Stage Ⅲ
Displacement of engine 8.3L
Distance of tracks 3000~4000mm
Width of track shoe 700mm
Slewing radius 3950mm
Operation weight 55t
Max. traction force 330kN
Max. travelling speed 2.1km/h
Overall height 18.8/(20.3)m
Transport with Kelly bar Yes
Transport height 3588mm
Kelly bar TypesDrilling depth(m)Notes
Friction 406-5x12m56
Inter-locking 406-4x12m44standard
Friction 406-5x13.5m62with extra mast extension
