ZS0508C
ZS0508C

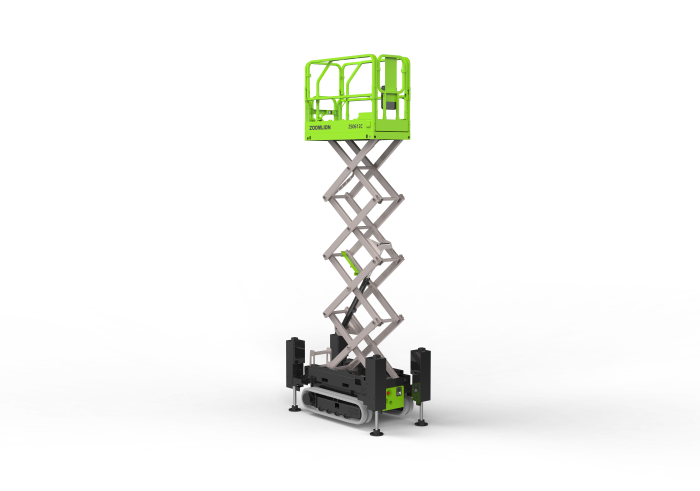

Crawler Scissor Lifts
ZS0508C

Crawler scissor lift  adopts rubber crawler featuring small ground pressure and great obstacle crossing ability, ideal for harsh working conditions. The crawler scissor can realize pivot steering with good maneuverability. Breaking the traditional crawler operation mode, it uses a single handle to control steering and walking, and features a simple operation. AC motor driver provides high efficiency and long running time. Maintenance-free battery for option.

ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
  • images
  • 6.5 m
    Work Height
  • 0.6 m
    Platform Extension
  • 1.74 m
    Overall Height (Rails Down)
  • 240 kg
    Platform Capacity
  • 6.5 m
    Work Height
  • 0.6 m
    Platform Extension
  • 1.74 m
    Overall Height (Rails Down)
  • 240 kg
    Platform Capacity
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
ZS0508C
  • images
Advantage introduction
    • Rubber crawler provides small ground pressure and great obstacle crossing ability;

    • Pivot steering with good maneuverability;

    • Simple single handle control for steeting and walking.

    • Knuckles lubrication-free and maintenance-free;

    • AC motor full lifecycle maintenance-free.

More Advantages
Metric / Imperial
Size
Performance
Power
Weight
Features
Work Height 6.5m
A Platform Height-Elevated 4.5m
B Platform Height-Stowed 0.99m
C Platform Length 1.29m
D Platform Width 0.7m
Platform Extension 0.6m
E Overall Height (Rails Up) 2.1m
Overall Height (Rails Down) 1.74m
F Overall Length 1.46m
G Overall Width 0.81m
H Ground Clearance 0.07m
Platform Capacity 240kg
Capacity on Deck Extension 100kg
Max. Number of Workers 1
Drive Speed (Stowed) 2km/h
Drive Speed (Raised) 0km/h
Turning Radius 0m
Drive Motor 24V/2×0.77KW
Up/Down Time 23/25s
Gradeability 25%(14°)
Max. Working Slope (Lateral/Vertical) 1.7°/1.7°
Drive Rear Wheels
Brake Rear Wheels
Battery 2×12V/115Ah
Charger 24V/30A
Gross 895kg
Standard

BMS (Battery Management System)

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

Horn

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

AC power to platform

Option

Platform work lights

Airline to platform

Overhead protection bar

Work Height 21ft4in
A Platform Height-Elevated 14ft9in
B Platform Height-Stowed 3ft 3in
C Platform Length 4ft3in
D Platform Width 2ft4in
Platform Extension 2ft
E Overall Height (Rails Up) 6ft11in
Overall Height (Rails Down) 5ft9in
F Overall Length 4ft9in
G Overall Width 2ft8in
H Ground Clearance 3in
Platform Capacity 530lb
Capacity on Deck Extension 220lb
Max. Number of Workers 1
Drive Speed (Stowed) 1.25mph
Drive Speed (Raised) 0mph
Turning Radius 0in
Drive Motor 24V/2×0.77KW
Up/Down Time 23/25s
Gradeability 25%(14°)
Max. Working Slope (Lateral/Vertical) 1.7°/1.7°
Drive Rear Wheels
Brake Rear Wheels
Battery 2×12V/115Ah
Charger 24V/30A
Gross 1975lb
Standard

BMS (Battery Management System)

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

Horn

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

AC power to platform

Option

Platform work lights

Airline to platform

Overhead protection bar
