ZS0607HD-Li

ZS0607HD-Li

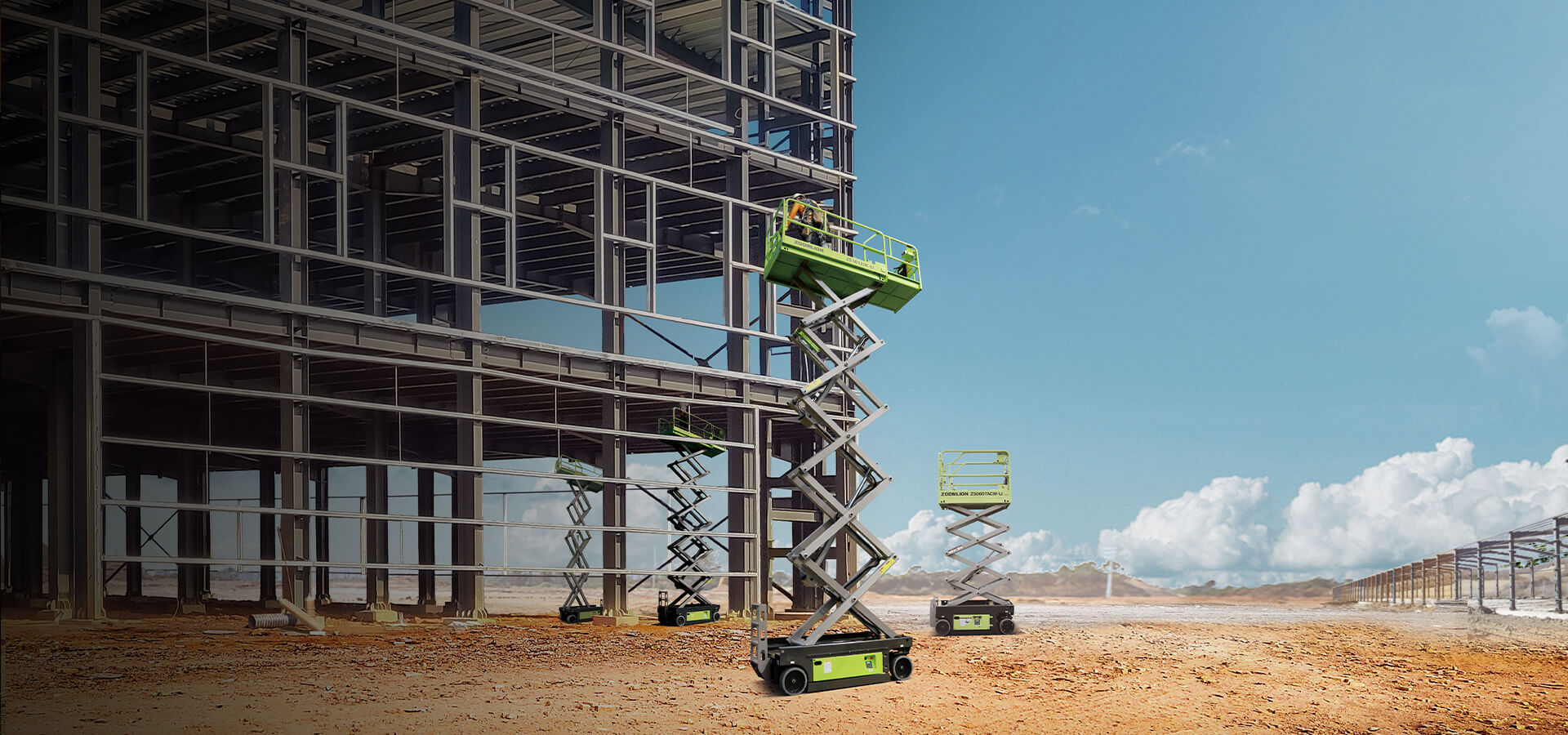

HD/HD-Li Scissor Series

ZS0607HD-Li

Hydraulic pump-driven HD scissor lifts equipped with li-ion battery increases battery life by 30% comparing to that of lead acid battery. Maintenance-free li-ion battery has 3 times longer lift than lead acid battery. Promise 5 years warranty and 100% recyclability. Battery lift time remains in ultimate weather condition even under the severe cold conditions of -20 °C (－4℉). Effective charging and longer runtime provides reliable and stable operation, and helps the rental compay for refined management, cost decreasing and benefit increasing.

Get Pricing

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

images

7.8 m

Work Height
0.91 m

Platform Extension
1.79 m

Overall Height (Rails Down)
230 kg

Platform Capacity

7.8 m

Work Height
0.91 m

Platform Extension
1.79 m

Overall Height (Rails Down)
230 kg

Platform Capacity

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

ZS0607HD-Li

images

Advantage introduction

Work height of 7.8m with high working efficiency;
Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20℃ cold working conditions;
Light weight and compact dimension ideal for space restricted applications.
Knuckles lubrication-free and maintenance-free;
Swing-out tray easy to service
Battery Management System (BMS) + Machine control system provide dual protection;

More Advantages

Metric / Imperial

Size

Performance

Power

Weight

Features

Work Height	7.8m
A - Platform Height-Elevated	5.8m
B - Platform Height-Stowed	1.05m
C - Platform Length	1.65m
D - Platform Width	0.74m
Platform Extension	0.91m
E - Overall Height (Rails Up)	2.20m
Overall Height (Rails Down)	1.79m
F - Overall Length	1.85m
G - Overall Width	0.76m
H Wheelbase	1.37m
I - Ground Clearance (Stowed)	0.06m
J - Ground Clearance (Raised)	0.016m

Platform Capacity	230kg
Capacity on Deck Extension	113kg
Max. Number of Workers	2
Drive Speed (Stowed)	3.5km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Inside)	0.1m
Turning Radius (Outside)	1.6m
Up/Down Drive Motor	24V/3.3KW
Up/Down Time	20s/24s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Rear Wheels
Tire	ф305mm×114mm

Battery	160Ah Li-ion
Charger	24V/30A
Charger (Option)	-

Gross

1425kg

Standard

BMS （Battery Management System）

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

AC power to platform

Drivable at full height

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

Horn

Option

Platform work lights

Airline to platform

Overhead protection bar

Work Height	25ft 7in
A - Platform Height-Elevated	19ft
B - Platform Height-Stowed	3ft 5in
C - Platform Length	5ft 5in
D - Platform Width	2ft 5in
Platform Extension	3ft
E - Overall Height (Rails Up)	7ft 3in
Overall Height (Rails Down)	5ft 10in
F - Overall Length	6ft 1in
G - Overall Width	2ft 6in
H Wheelbase	4ft 6in
I - Ground Clearance (Stowed)	2.4in
J - Ground Clearance (Raised)	0.65in

Platform Capacity	510lb
Capacity on Deck Extension	250lb
Max. Number of Workers	2
Drive Speed (Stowed)	2.2mph
Drive Speed (Raised)	0.5mph
Turning Radius (Inside)	4in
Turning Radius (Outside)	5ft 3in
Up/Down Drive Motor	24V/3.3KW
Up/Down Time	20s/24s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Rear Wheels
Tire	ф12in×4.5in

Battery	160Ah Li-ion
Charger	24V/30A
Charger (Option)	-

Gross

3140lb

Standard

BMS （Battery Management System）

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

AC power to platform

Drivable at full height

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

Horn

Option

Platform work lights

Airline to platform

Overhead protection bar
