40X-5RZ(Three-axles)
40X-5RZ(Three-axles)

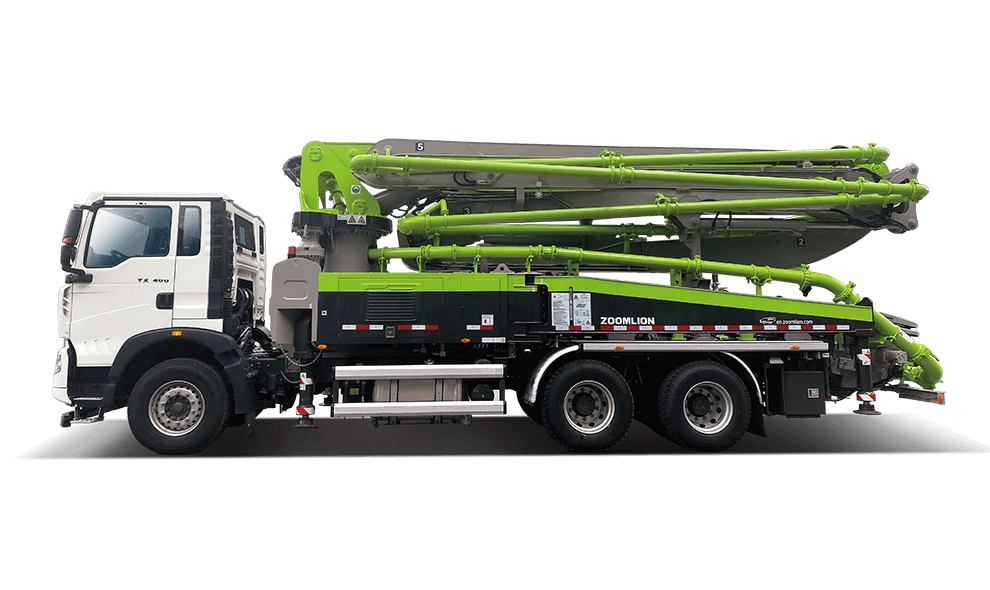

Truck Mounted Pump
40X-5RZ(Three-axles)

Energy Saving: Self-adaptive variable power distribution control technolog

High-Efficiency: Good site adaptability (one side support)

High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard. Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.

Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.


  • 39.5 m
    Maximum vertical reach
  • 160/100 m3/h
    Maximum theorical output
  • 70/110 bar
    Maximum theorical pressure on concrete
  • 39.5 m
    Maximum vertical reach
  • 160/100 m3/h
    Maximum theorical output
  • 70/110 bar
    Maximum theorical pressure on concrete
Advantage introduction
    • Energy Saving: Self-adaptive variable power distribution control technolog

    • High-Efficiency: Good site adaptability (one side support)

    • High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.

    • Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.

    • Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.

More Advantages
BOOM
PUMP
Reach height 39.50m
Horizontal reach ( gross/net ) 35.15/31.50m
Reach depth 23.15m
Unfolding height 8.13m
Sections 5
Folding system RZ
End hose length 3m
Delivery line DN125mm
Max. output 160/100m³/h
Max. pressure 70/100bar
Delivery cylinder Φ230
Stroke 2100mm
Reach height 39.50m
Horizontal reach ( gross/net ) 35.15/31.50m
Reach depth 23.15m
Unfolding height 8.13m
Sections 5
Folding system RZ
End hose length 3m
Delivery line DN125mm
Max. output 160/100m³/h
Max. pressure 70/100bar
Delivery cylinder Φ230
Stroke 2100mm
