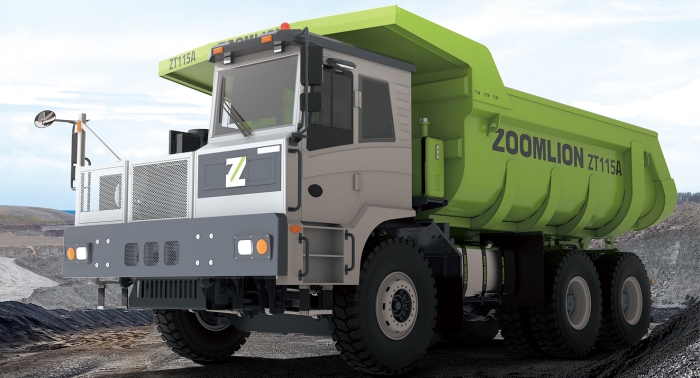

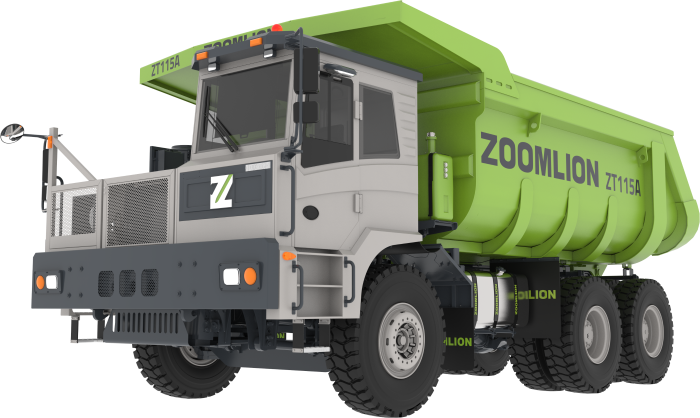

ZT115A
ZT115A
Mining Dump Truck
ZT115A
SUITABLE FOR THE CONDITION OF LONG-TERM LOW-SPEED AND HIGH- TORQUE

The ZT115A(MT) adopts 8-speed high-torque manual transmission. ZT115A(AT) adopts 6-speed high-torque flexible automatic transformer,The ootimized gear control strateg improves the engine load rate in common workine conditionsthereby enhancing the machine's overall fuel economy

ZT115A
ZT115A
ZT115A
ZT115A
ZT115A
  • images
  • 426 kW
    Engine Power
  • 36
    Body Capacity
  • 75000 kg
    Rated load
  • 34000 kg
    Curb Weight
  • 426 kW
    Engine Power
  • 36
    Body Capacity
  • 75000 kg
    Rated load
  • 34000 kg
    Curb Weight
ZT115A
ZT115A
ZT115A
ZT115A
ZT115A
  • images
Advantage introduction

    CONFIGURATION & EFFICIENCY:
    The engine has a maximum powerof 426kW (1900rpm). It provides stronger power and more stable output, allowing you to work faster and more efficiently.


    SAFETY & RELIABILITY:

    The ZT115A use of full hydraulic steering, combined with a double-acting steering cylinder, makes the steering lighter and more flexible, greatly reducing the driver’s control intensity and bringing a better driving experience. Steering trapezoidal for reduced tyre wear in large corners.


    COMFORT & INTELLIGENCE:

    The offset narrow-body cab provides a wide field of vision. It is fully equipped with display instruments, alarms, lightings, control switches, radios, electric wiper and washer, air conditioner (cool & warm) and adjustable shockabsorbing seat. The cab also adopts a composite floor structure made of thickened steel plate and rubber-plastic sponge, which features outstanding noise reduction capabilities and blowout to drivers' safety.


More Advantages
Param

Main   Parameters

Unit

Value

Curb weight

t

34

Rated payload

t

75

Max. speed

km/h

41(MT) /   45.6(AT)

Max.   gradeability

%

33

Min. turning   radius

m

12

Capacity   (struck)

36

Capacity (heaped   2:1)

43

Tires

/

16.00R25

Engine model

/

YC6K580-GT30

Engine   displacement

L

12.939

Emission standard

/

China Non-road   Stage III

Rated power

kW

426

Max. torque

N · m/rpm

2500 N ·   m/1100~1500 r/min

Transmission   (MT)

/

ZOOMLION Z8S265A Transmission +FAST EATON clutch

Transmission   (AT)

/

FC6A250

Steering system

/

Fully hydraulic
