Emission stage II/Ⅳ
Lightweight and flexible vehicle, turning radius less than 3.5m
Best adapted to small plots and greenhouses, and does not bog down when entering paddy fields
Strong lifting power makes it easier for farm equipment to get into the ground
The short wheelbase of the tractor, equipped with shuttle shift, compact structure, and fexible operation,ensures high operational efficiency.
Equipped with a lifting, belt with strong pressure function, the machine effortlessly enters the soil, ensuringhigh operational efficiency. lt is also equipped with 2 sets of hydraulic outputs to meet the diverse needs ofmachinery operatons.
With an oversized 53L fuel tank, it ensures long continuous operation, reduces refueling time, and enhances operational efficiency.
Equipped with a full Quanchai engine, providing strong power, high reliability, large torque reservecoefficient, and good adaptability.
It features a 9.5 -inch dry dual-action clutch with imported friction materials, ensuring, high reliability and alarge torque reserve coefficient, while reducing cutch operatingforce foreasier operation.
The gearbox adopts imported oil seals with excellent sealing and waterproof performance, ensuring highreliability.
With a brand new streamlined exterior design, the tractor has low air resistance during high-speed travel.The wide operating visibility and the use of SMC composite material for the hood and foor ensure no rustno fading, and durability.
With 8F+8R gear configuration and shuttle shift, it offers convenient forward and reverse operations. Theinfinitely adjustable rear wheel track meets the operational requirements of different agriculturalconditions, providing reasonable speed configuration, reliable strength, and wide adaptability.
It is versatile and cost-effective, suitable for both field operations and transportation, ensuring high overallmachine utilizaton.
The infinitely adjustable wheel track meets various operational needs.
The entire machine has a flat shock-absorbingfloor,ensuring good driving comfort.

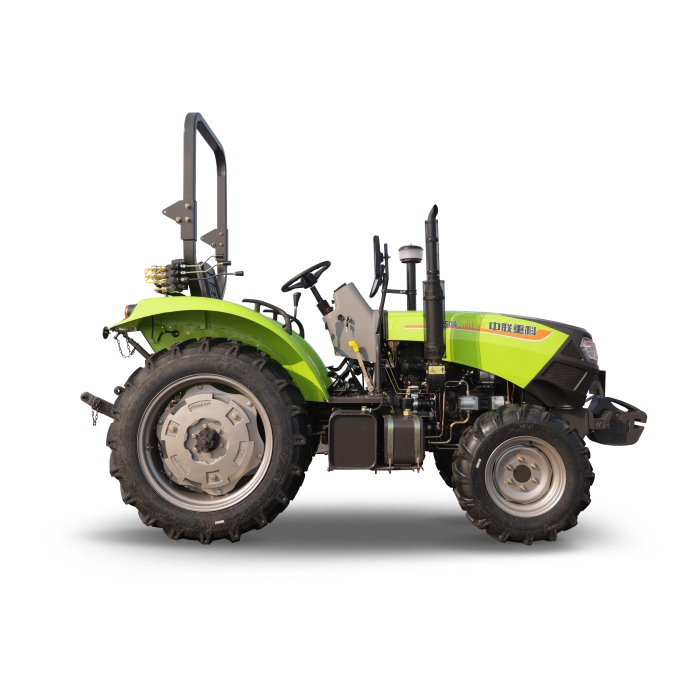

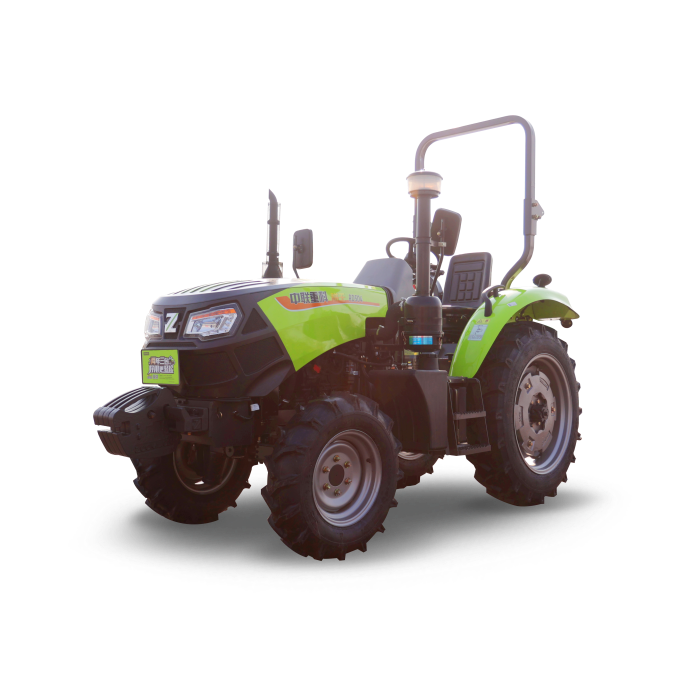

| Model | Unit | RD504 |
| Overall dimension (L×W × H) | mm | 3654x1362x2620 |
| Wheelbase | mm | 1790 |
| Weight | kg | 1900 |
| Minimum ground clearance | mm | 420 |
| Engine emission | / | National II |
| Rated power | kw | 36.8 |
| Number of gears of the gearbox | / | 8F+8R |
| Tyre size (front wheel / rear wheel) | / | 8.3-20/12.4-28 8-18/13.6-26 |
| Maximum lifting capacity | kg | 1236 |
| PTO output power | kW | 30 |
| Power output speed | r/min | 540/720 |
| Safety shelf or cab | / | Safety shelf |
