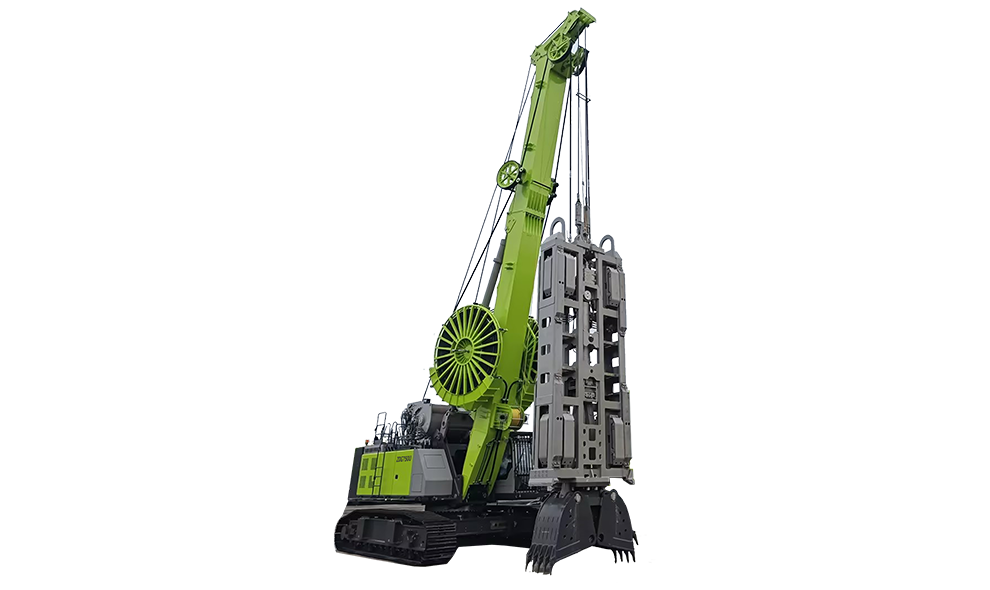

ZDG750U
ZDG750U
Hydraulic Diaphragm Wall Grab
ZDG750U

ZDG750U diaphragm wall hydraulic grab integrates the company's rich experience in the field of track chassis and hydraulic grab. Advanced technology, excellent performance, reliable quality, easy to operate, is an efficient, multi-purpose basic construction machinery. The products are widely used in the foundation construction of urban high-rise buildings, subway station construction, basement, sewage treatment plant, protective wall, oil and gas underground storage tank, bridge foundation, foundation square pile and other deep foundation construction, and in the flood control projects such as water conservancy dam foundation and seepage wall.

Get Pricing
  • 5610 mm
    Max. working radius
  • 75/85 m
    Max. wall depth
  • 1.5 m
    Max. wall thickness
  • 750 kN
    Max. hoisting force
  • 5610 mm
    Max. working radius
  • 75/85 m
    Max. wall depth
  • 1.5 m
    Max. wall thickness
  • 750 kN
    Max. hoisting force
Advantage introduction

    • The upper structure of single-layer rope double winding, easy maintenance, long wire rope life, quick joint disassembly fast

    • The new generation of Cummins X12 engine has strong power output, low fuel consumption and good environmental protection

    • Large capacity bucket head, high single trenching efficiency

    • It is equipped with modular counterweight, convenient combination, adapt to the stationary formation, and effectively reduce fuel consumption

    • Coil depth adaptive follow-up function, effectively improve follow-up performance and hose life

    • High stiffness mast structure, heavy rotary support design, high working stability

    • Hydraulic leakage monitoring of the whole machine to ensure the safety of the grab hydraulic system

    • Function key panel, common operations at your fingertips

More Advantages
Operating parameters
Main winch
Grab system
Engine
Undercarriage
Distance of tracks center
Overall main machine
Max. hoisting force 750kN
Max. wall thickness 1.5m
Max.wall depth 85m
Max. Working radius 5610mm
Max. line pull force 2x375kN
Max. Lifting speed 70m/min
Djameter of wire rope 36mm
Size of buckets available 0.8/1/1.2/1.5m
Panel length 2.8m
Weight of Grab 37t
Bucket capacity 1.3~2.5m3
Height of grab 9m
Grab cylinder force 2000 (35 Mpa)kN
Turning angle of grab Optional
Panel thickness 760mm
Model Cummins X12
Rated power of engine 321kW
Emission standard Euro III
Traction force 720kN
Overall dimension(length, width and height) 10760*5000*18154mm
Overall dimension(length, width and height) 14807*3650*3477mm
Mast structure Box-shaped arm
Slewing radius of the rear 4370mm
Operation weight(without grab) 135t
Max. hoisting force 750kN
Max. wall thickness 1.5m
Max.wall depth 85m
Max. Working radius 5610mm
Max. line pull force 2x375kN
Max. Lifting speed 70m/min
Djameter of wire rope 36mm
Size of buckets available 0.8/1/1.2/1.5m
Panel length 2.8m
Weight of Grab 37t
Bucket capacity 1.3~2.5m3
Height of grab 9m
Grab cylinder force 2000 (35 Mpa)kN
Turning angle of grab Optional
Panel thickness 760mm
Model Cummins X12
Rated power of engine 321kW
Emission standard Euro III
Traction force 720kN
Overall dimension(length, width and height) 10760*5000*18154mm
Overall dimension(length, width and height) 14807*3650*3477mm
Mast structure Box-shaped arm
Slewing radius of the rear 4370mm
Operation weight(without grab) 135t
