ZLF5290GXFPM120
ZLF5290GXFPM120

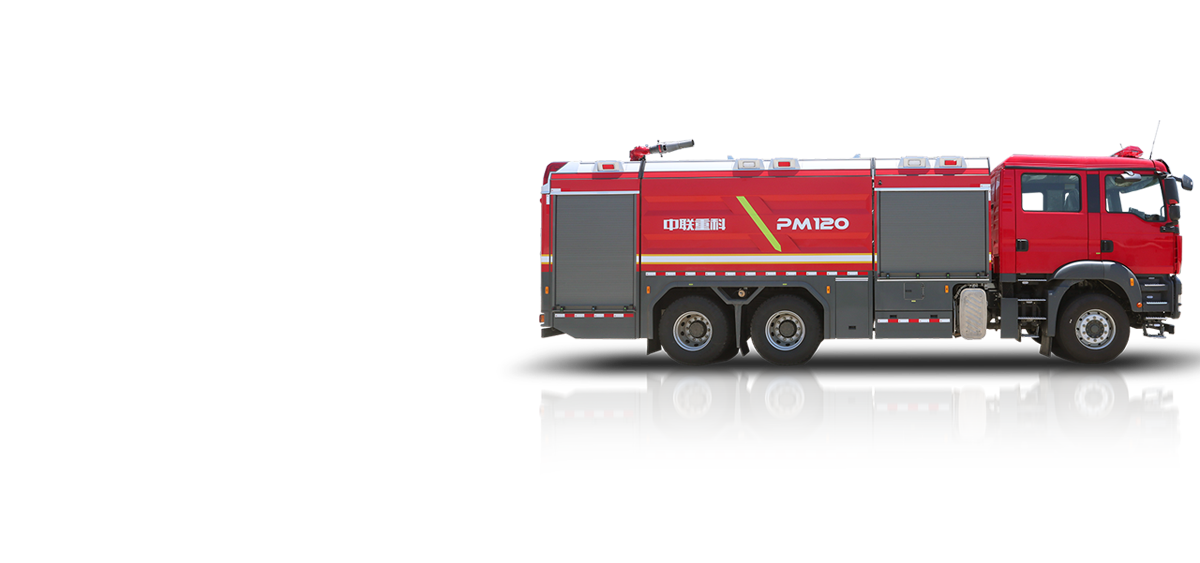

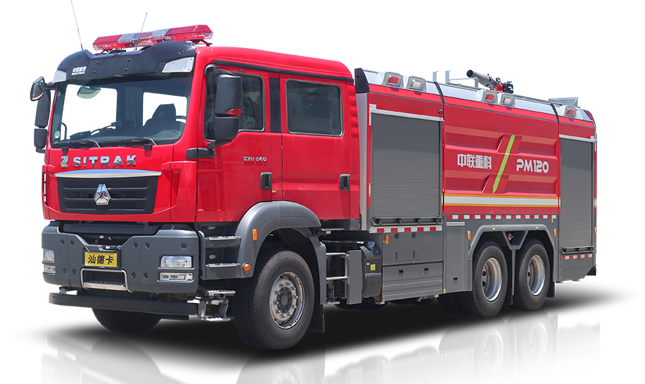

Foam/water tank fire truck
ZLF5290GXFPM120
Excellent, powerful,humanized operation

Zoomlion PM120 foam fire truck, with a large liquid load, is equipped with a conventional type of Class B foam system, which is suitable for fighting Class A fires in industrial and civil buildings, as well as Class B fires in petrochemical, coalification, oil depots, etc; All aluminum alloy body, light weight, high strength, good anti-corrosion performance, can carry various emergency rescue equipment with the car. This vehicle can also provide relay water supply and is a necessary main equipment for urban emergency rescue fire teams and enterprise dedicated fire units.

  • 7800@1.0 L/min@MPa
    Fire pump flow rate
  • 2880 L/min
    Fire monitor flow rate
  • 9100(water)3200(foam) L
    Tank capacity
  • 7800@1.0 L/min@MPa
    Fire pump flow rate
  • 2880 L/min
    Fire monitor flow rate
  • 9100(water)3200(foam) L
    Tank capacity
Advantage introduction

    1.  Powerful fire extinguishing system

    The fire pump has large flow, medium and low pressure multi working mode, is equipped with Class B foam system, and has dual fire extinguishing functions of independent operation and supporting other vehicle coupling operations.


    2.  Scientific equipment configuration

    The equipment layout is designed based on practical experience, with large capacity and easy access. It can carry a variety of firefighting and emergency rescue equipment with the vehicle, meeting various conventional firefighting and emergency rescue tasks.


    3.  Excellent anti-corrosion design

    The vehicle body is made of all aluminum alloy material, with all hard pipes made of stainless steel or aluminum alloy, and a special anti rust and anti-corrosion tank treatment process, which gives the vehicle excellent anti-corrosion performance.


    4.  Integrated and user-friendly operation

    An integrated operation panel designed based on functionality and usage habits, with a user-friendly interactive interface, easy and simple operation, and one click start of fire extinguishing operation function.


More Advantages
Param

Performance

Unit

Parameter

Dimensions (length x width x height)

mm

9900×2530×3590

GVW

kg

29000

Water tank capacity

L

9100

Foam tank capacity

L

3200

Fire monitor flow rate

L/min

2880

Fire monitor spraying reach

m

≥60(Water)/55(Foam)
