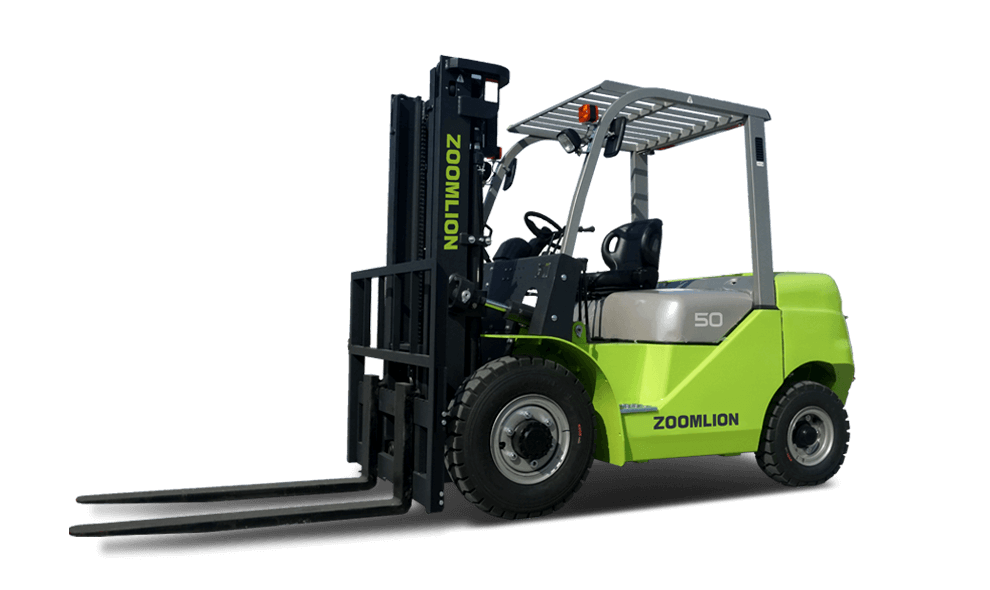

FD50mini
FD50mini
Internal Combustion Forklift
FD50mini

Reinforced mast with wide view design improves efficiency and safety;

Engine is with large torque and capacity, which is powerful and can meet different operation demands;

Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;

Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.

  • 2240-2445 mm
    Min. Turning Radius
  • 470/520 mm/s
    Max. Lifting Speed(loaded/empty)
  • 7000 mm
    Max. Lifting Height
  • 4000-5000 kg
    Rated Capacity
  • 2240-2445 mm
    Min. Turning Radius
  • 470/520 mm/s
    Max. Lifting Speed(loaded/empty)
  • 7000 mm
    Max. Lifting Height
  • 4000-5000 kg
    Rated Capacity
Advantage introduction
    • It can be equipped with Japanese engine, with strong power and low failure rate.

    • Spacious driving space. The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.

    • Conical design is adopted for pipe joints to prevent oil leakage.

More Advantages
Performance
Speed
Gradeability
Power
Size
Rated capacity 5000
Load centre 500mm
Lifting height 3000mm
Free lifting height 140mm
Tilting angle 6°/12°
Turning radius 2760mm
Front overhang 570mm
Tread 530mm
Wheelbase 2000mm
Fork spread(Min./Max.) -
Working aisle width with pallet(Ast) -
Service weight -
Operating pressure for attachment 20MPa
Travel (Laden) 18Km/h
Travel(Unladen) 19Km/h
Lifting(Laden) 410mm/s
Lifting(Unladen) 430mm/s
Lowering (Laden) <600mm/s
Lowering(Unladen) ≥300mm/s
Laden 0.2
Unladen -
Driven motor -
Pump motor -
Battery 90Ah/24V
Controller -
Rear Wheel 300-15-18PR
Front Wheel 7.00-12-12PR
Overall Dimension(L×H×W) 3100x2350x1490
Weight 6600
Rated capacity 5000
Load centre 500mm
Lifting height 3000mm
Free lifting height 140mm
Tilting angle 6°/12°
Turning radius 2760mm
Front overhang 570mm
Tread 530mm
Wheelbase 2000mm
Fork spread(Min./Max.) -
Working aisle width with pallet(Ast) -
Service weight -
Operating pressure for attachment 20MPa
Travel (Laden) 18Km/h
Travel(Unladen) 19Km/h
Lifting(Laden) 410mm/s
Lifting(Unladen) 430mm/s
Lowering (Laden) <600mm/s
Lowering(Unladen) ≥300mm/s
Laden 0.2
Unladen -
Driven motor -
Pump motor -
Battery 90Ah/24V
Controller -
Rear Wheel 300-15-18PR
Front Wheel 7.00-12-12PR
Overall Dimension(L×H×W) 3100x2350x1490
Weight 6600
