32X-4Z
32X-4Z

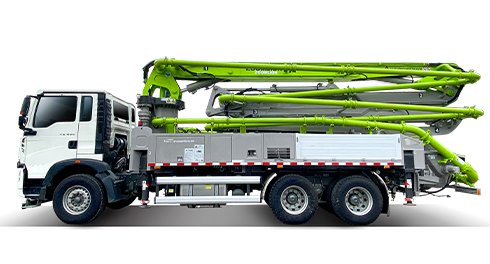

Truck Mounted Pumps
32X-4Z

Energy Saving: Self-adaptive variable power distribution control technolog

High-Efficiency: Good site adaptability (one side support)

High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.  Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.

Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.


32X-4Z
32X-4Z
  • images
  • 31.4 m
    Maximum vertical reach
  • 66 bar
    Maximum theorical pressure on concrete
  • 120 m3/h
    Maximum theorical output
  • 31.4 m
    Maximum vertical reach
  • 66 bar
    Maximum theorical pressure on concrete
  • 120 m3/h
    Maximum theorical output
32X-4Z
32X-4Z
  • images
Advantage introduction
    • Energy Saving: Self-adaptive variable power distribution control technolog

    • High-Efficiency: Good site adaptability (one side support)

    • High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.

    • Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.

    • Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.

More Advantages
BOOM
PUMP
CHASSIS
Maximum vertical reach 31.4m
Maximum horizontal reach 27.4m
Maximum depth reach 19.1m
Minimum unfolding height 7.36m
Section numbers 4
Boom type Z
Pipeline diameter 125mm
Maximum theorical output 120m3/h
Maximum theorical pressure on concrete 66bar
Concrete cylinders (diam. × stroke) 230mm x 1650mm
Hydraulic circuit Open
Chassis brand Multiple Choices
Maximum vertical reach 31.4m
Maximum horizontal reach 27.4m
Maximum depth reach 19.1m
Minimum unfolding height 7.36m
Section numbers 4
Boom type Z
Pipeline diameter 125mm
Maximum theorical output 120m3/h
Maximum theorical pressure on concrete 66bar
Concrete cylinders (diam. × stroke) 230mm x 1650mm
Hydraulic circuit Open
Chassis brand Multiple Choices
