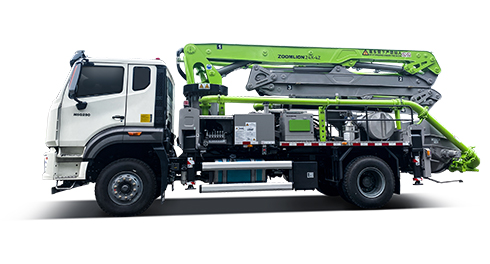

24X-4Z(Two-axles)
24X-4Z(Two-axles)
Truck Mounted Pumps
24X-4Z(Two-axles)

Energy Saving: Self-adaptive variable power distribution control technolog

High-Efficiency: Good site adaptability (one side support)

High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.

Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.

Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.

24X-4Z(Two-axles)
24X-4Z(Two-axles)
  • images
  • 23.2 m
    Maximum vertical reach
  • 100/60 m3/h
    Maximum theorical output
  • 60/100 bar
    Maximum theorical pressure on concrete
  • 23.2 m
    Maximum vertical reach
  • 100/60 m3/h
    Maximum theorical output
  • 60/100 bar
    Maximum theorical pressure on concrete
24X-4Z(Two-axles)
24X-4Z(Two-axles)
  • images
Advantage introduction
    • Energy Saving: Self-adaptive variable power distribution control technolog

    • High-Efficiency: Good site adaptability (one side support)

    • High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.

    • Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.

    • Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.

More Advantages
BOOM
PUMP
CHASSIS
Maximum vertical reach 23.2m
Maximum horizontal reach 19.7m
Maximum depth reach 13.8m
Minimum unfolding height 4.8m
Section numbers 4
Boom type Z
Pipeline diameter 125mm
Maximum theorical output 100/60m3/h
Maximum theorical pressure on concrete 60/100bar
Concrete cylinders (diam. × stroke) 230mm x 1650mm
Hydraulic circuit Open
Chassis brand Multiple Choices
Maximum vertical reach 23.2m
Maximum horizontal reach 19.7m
Maximum depth reach 13.8m
Minimum unfolding height 4.8m
Section numbers 4
Boom type Z
Pipeline diameter 125mm
Maximum theorical output 100/60m3/h
Maximum theorical pressure on concrete 60/100bar
Concrete cylinders (diam. × stroke) 230mm x 1650mm
Hydraulic circuit Open
Chassis brand Multiple Choices
