ZA20JERT
ZA20JERT

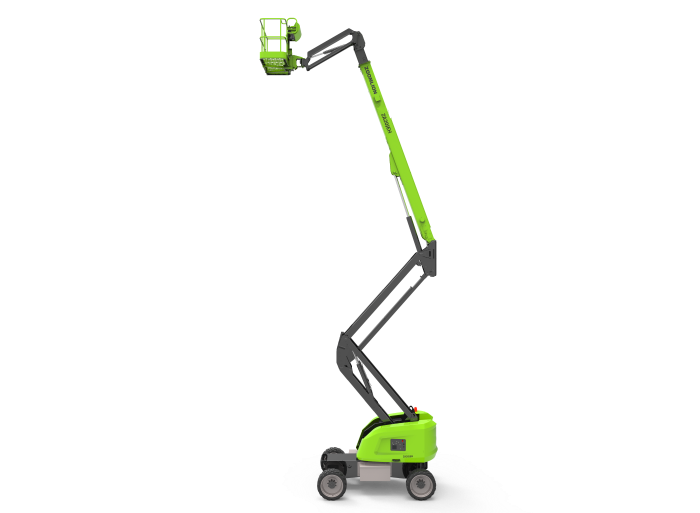

Rough Terrain Electric Articulating Boom Lifts
ZA20JERT

RT Electric Articulating Boom Lifts feature strong rough terrainability, providing exceptional off-road performance and quiet working conditions around jobsites.


  • 21.38m
    Work Height
  • 19.38m
    Platform Height
  • 12.1m
    Horizontal Outreach
  • 8.25m
    Up and Over Height
  • 21.38m
    Work Height
  • 19.38m
    Platform Height
  • 12.1m
    Horizontal Outreach
  • 8.25m
    Up and Over Height
Advantage introduction
    •

    • Provide greater work height of 21.38m and lift capacity of250kg/360kg than competitor

    • Fast lift system directly lowers the boom from the highest positionto the ground, no need to fold the boom to improve work efficiency

    • Accurate and efficient traveling AC drive system and on-boardmotion AC drive system provides strong power, stable control andmaintenance-free motor

    • Independent auxiliary power system for more secure application

    • Large reduction ratio reducer provides stronger gradeability

    • Large-capacity lithium battery features long-lasting battery life,and number of charge and discharge cycles reaches 2500 times.the whole life cycle is maintenance-free, and a 5-year warranty isprovided

More Advantages
Metric / Imperial
Size
Performance
Power
Tire
Weight
Work Height 21.38m
Platform Height 19.38m
Horizontal Outreach 12.1m
Up and Over Height 8.25m
A - Stowed Length 8.8m
B - Stowed Width 2.46m
C - Stowed Height 2.52m
D - Platform Length 2.44m
E - Platform Width 2.44m
F - Wheelbase 2.52m
G - Ground Clearance 0.4m
Platform Capacity 250kg/360kg
Drive Speed 6.1km/h
Gradeability 45%
Axles Oscillation 0.20m
Turning Radius (Inside) 2.78m
Turning Radius (Outside) 5.49m
Turntable Swing 360° continuous
Platform Rotation ±90°
H-Tail Swing 0.64m
Max. Working Slope 3°/5°
Max. Wind Speed 12.5m/s
Battery 24×2V/440Ah
Charger 48V/60A
Drive Motor AC 32V
Lift Motor AC 32V
Auxiliary Power 12V DC Electrical pump
Hydraulic Tank Capacity 75L
Type 33×12 D610 Foam-filled tire
Gross 9250kg
Work Height 70ft 1in
Platform Height 70ft 1in
Horizontal Outreach 39ft 8in
Up and Over Height 27ft 1in
A - Stowed Length 27ft 1in
B - Stowed Width 8ft 1in
C - Stowed Height 8ft 1in
D - Platform Length 2.44m
E - Platform Width 3ft
F - Wheelbase 3ft
G - Ground Clearance 1ft 4in
Platform Capacity 550 lb/793 lb
Drive Speed 3.79 mph
Gradeability 45%
Axles Oscillation 8in
Turning Radius (Inside) 9ft 1in
Turning Radius (Outside) 18ft
Turntable Swing 360° continuous
Platform Rotation ±90°
H-Tail Swing 360° continuous
Max. Working Slope 3°/5°
Max. Wind Speed 28mph
Battery 24×2V/440Ah
Charger 48V/60A
Drive Motor AC 32V
Lift Motor AC 32V
Auxiliary Power 12V DC Electrical pump
Hydraulic Tank Capacity 19.8 (us gal)
Type 33×12 D610 Foam-filled tire
Gross 20392 lb
