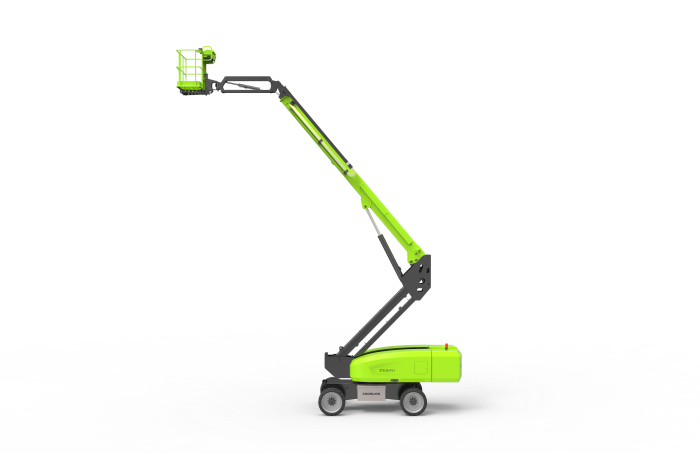

ZT42JE
ZT42JE
Electric Telescopic Boom Lifts
ZT42JE

Lithium-powered telescopic boom lifts, with 80-volt lithium battery that can be fully charged within 7 hours, are purpose-built for indoor applications with quiet, emission-free and cost-efficient solutions.



Advantage introduction
    • Customized lithium-ion battery features green, environmental protection, low noise and zero-emission, ideal for construction and plant maintenance.

    • Accurate and efficient traveling AC drive system provides strong power and stable control. Gradeability reaches 45% and motor is maintenance-free for its lifttime.

    • Large capacity lithium-ion batteries combined with excellent energy management system provide longer running time.

    • Low-temperature regenerative current control and power self-adaptive control effectively improve the safety of Li-ion battery and greatly prolong the batteries service life of at least 10%.

    • Provide a variety of standard charging plugs and 10A/16A/32A multi-power optional charging mode featuring strong charging adaptability.

    • Brand-new appearance with lightweight GFRP composite material hood and integrally formed coating features anti-corrosion, heat preservation, aging resistance and easy cleaning.

    • Assembled large-opening component box, open-close hood, and a variety of reserved inspection holes easy to service.



More Advantages
Metric / Imperial
Size
Performance
Power
Tire
Weight
Work Height 44m
Platform Height 42m
Horizontal Outreach 25m
A - Stowed Length 14.95m
B - Stowed Width 2.49m
C - Stowed Height 2.86m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 3.81/4.15m
Tread 2.46/4.07m
G - Ground Clearance 0.4m
Platform Capacity (Unrestricted/Restricted) 300/454kg
Drive Speed (Stowed) 5km/h
Gradeability 45%(24°)
Turning Radius (Inside) 6.96/2.15m
Turning Radius (Outside) 9.26m/5.71m
Turntable Swing 360° continuous
Platform Rotation ±90°
Tail Swing 1.4m
Jib Rotation 130°(﹣55°~75°)
Max. Wind Speed 12.5m/s
Charger 80V/80A
Drive Motor 5.4KW
Lifting Motor 30KW
Auxiliary Power 12V DC
Hydraulic Tank 250L
Type Foam-filled tire
Gross 22120kg
Work Height 144ft 4in
Platform Height 125ft
Horizontal Outreach 82ft
A - Stowed Length 49ft 1in
B - Stowed Width 8ft 1in
C - Stowed Height 9ft 5in
D - Platform Length 8ft
E - Platform Width 3ft
F - Wheelbase 12ft 6in/13ft 4in
Tread 8ft 1in/13ft 4in
G - Ground Clearance 1ft 4in
Platform Capacity (Unrestricted/Restricted) 660/1000lb
Drive Speed (Stowed) 3.1mph
Gradeability 45%(24°)
Turning Radius (Inside) 6.96/2.15m
Turning Radius (Outside) 9.26m/5.71m
Turntable Swing 360° continuous
Platform Rotation ±90°
Tail Swing 4ft 7in
Jib Rotation 130°(﹣55°~75°)
Max. Wind Speed 28mph
Charger 80V/80A
Drive Motor 5.4KW
Lifting Motor 30KW
Auxiliary Power 12V DC
Hydraulic Tank 66 gal
Type Foam-filled tire
Gross 48766lb
