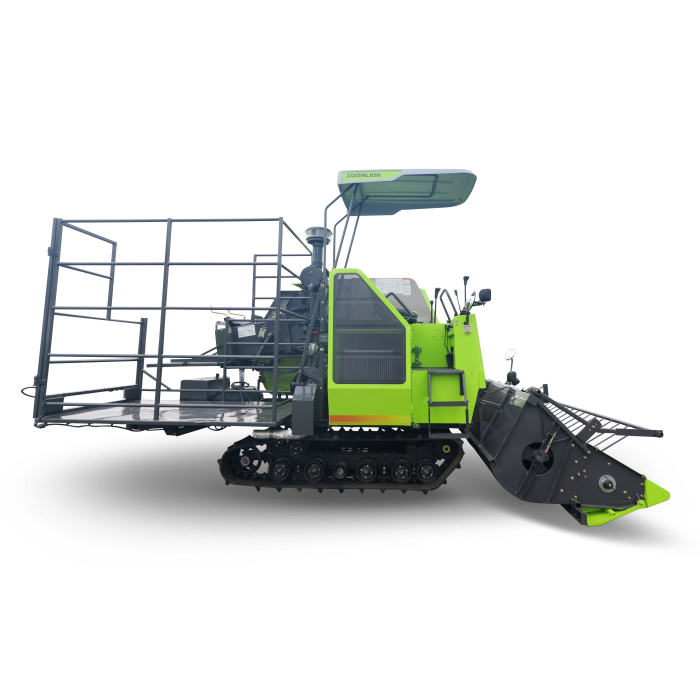

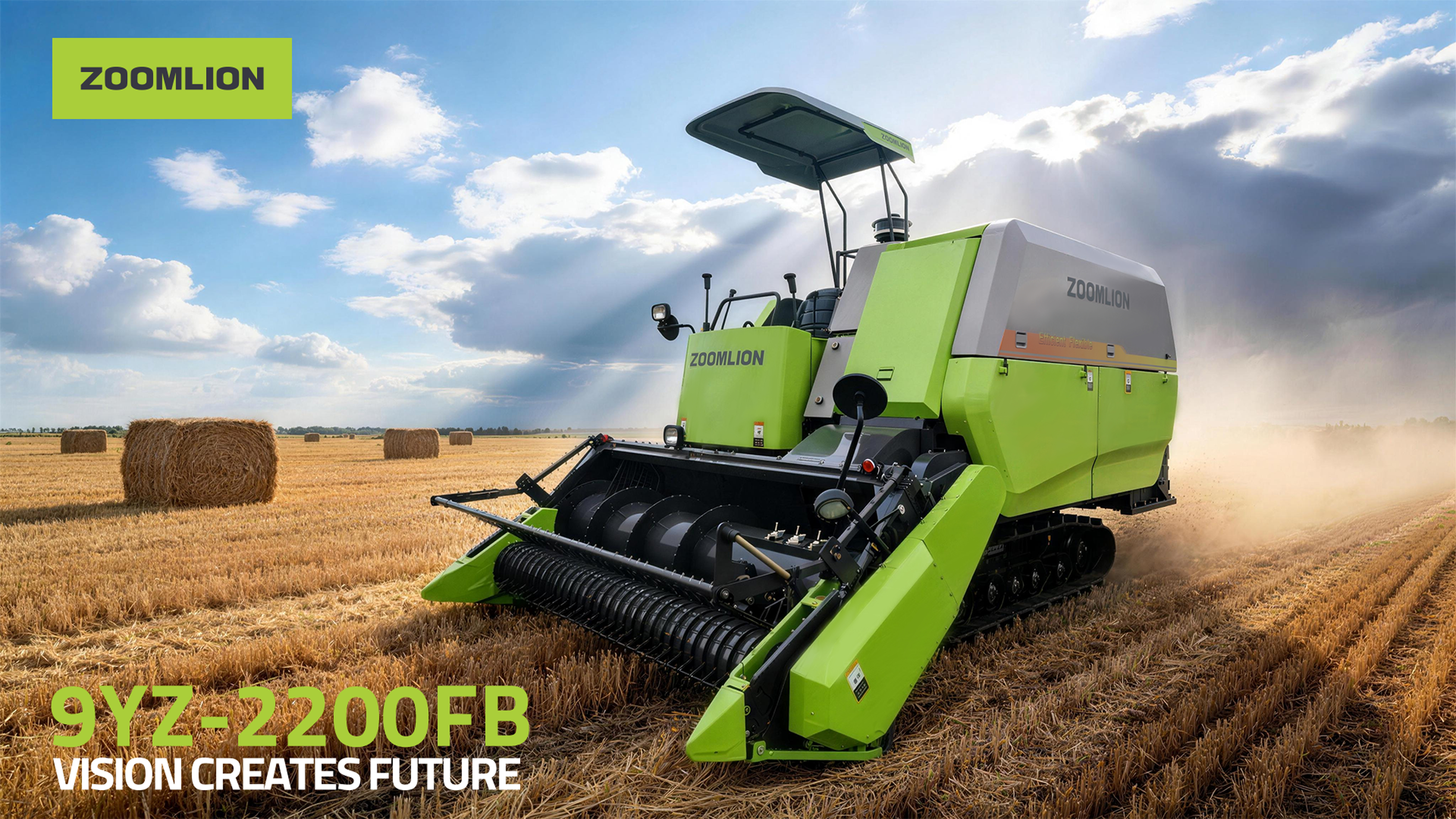

9YZ-2200FB
9YZ-2200FB
Baler
9YZ-2200FB

2.2m picking width

German Rasper D-type knotter, 10 seconds to form a bale

1000-1800 bales/day

3.56m3 large hay storage bin, more efficient operation

Standard 400mm wide track, 258mm ground clearance

Assemble the Internet of Things terminal to realize satellite positioning

9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
  • images
  • 2200 mm
    Pickup width
  • 60/66 kw
    Matched power
  • 350~1200 mm
    Bale length
  • 2200 mm
    Pickup width
  • 60/66 kw
    Matched power
  • 350~1200 mm
    Bale length
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
9YZ-2200FB
  • images
Advantage introduction
    • The grass collection box is enlarged, the effective volume is increased by 7.6%;

    • Upgraded to National lV engine, the power is increased by 10%, the power is more powerful andthe emissions are more environmentally friendly;

    • The electrical system has been upgraded, the self-detection capability has been improved, and thewhole machine has become more intelligent;

    • Assemble the Internet of Things terminal to realize satellite positioning and trajectory query of theentire machine in the background;

    • Real-time monitoring of various vehicle parameters and real-timeuploading of emission data, which provides convenience for vehicle management and after-salesservice;

    • The structural arrangement of power post-processing, hydraulic and electrical components is op-timized, making maintenance and repair more convenient.


More Advantages
Param
ModelUnit9YZ-2200FB

Pickup width

mm2200

Structural type

/Crawler self-propelled
Type of knot-tying device/Type D
Number of knot-tying devicePcs.2
Compression chamber sectional dimension(W*H)mm480*360
Reciprocating times of baling pistiont/min100
Overall dimension (L x W x H)mm5150*2500*2830
Matched powerkW

60/66

Weightkg3300
Bale lengthmm350-1200
Capacity of grass tankm33.83
Crawler size/400*90*51
Diesel tank capacityL55
Hydraulic tank capacityL27
Baling efficiencybale/day1000-1800
Baling density(Wheat)kg/m3≥100
Baling density(Rice)kg/m3≥130
