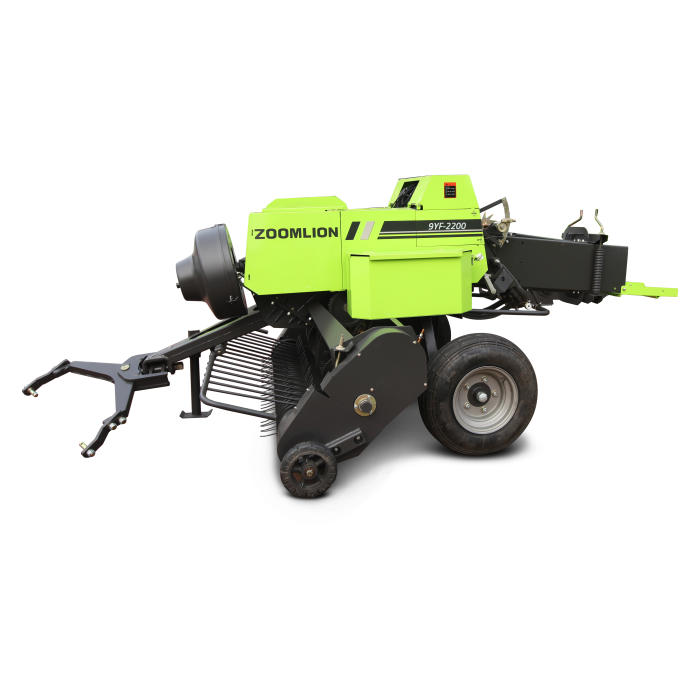

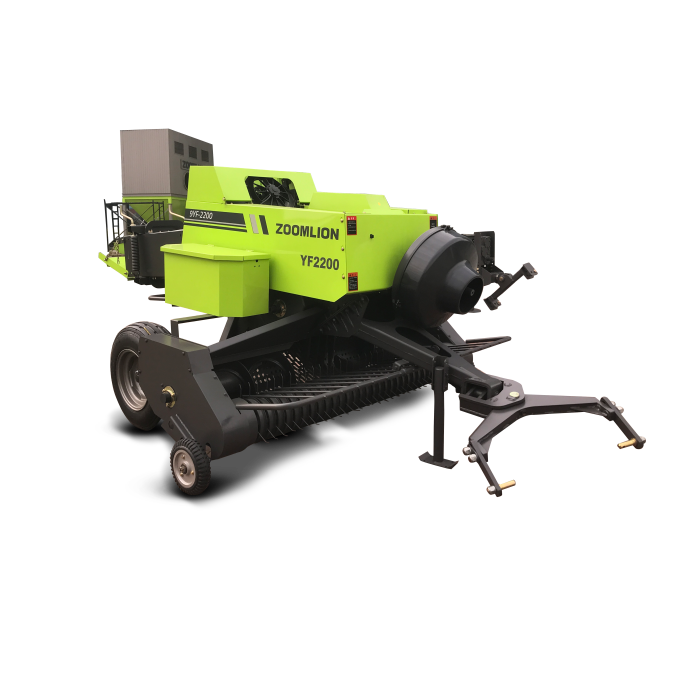

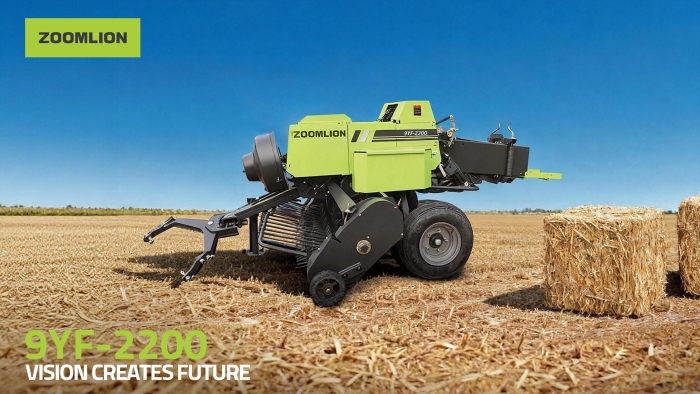

9YF-2200
9YF-2200
Baler
9YF-2200

2.2m picking width

540 r/min drive shaft speed

Three-stage sealing and dustproof high-end bearing

Enlarged feed chamber

High strength manganese steel frame

Intermediate herringbone enhanced traction frame

9YF-2200
9YF-2200
9YF-2200
9YF-2200
9YF-2200
9YF-2200
9YF-2200
  • images
  • 65~100 hp
    Matched power
  • 2240 mm
    Pickup width
  • 1740 kg
    Weight
  • 65~100 hp
    Matched power
  • 2240 mm
    Pickup width
  • 1740 kg
    Weight
9YF-2200
9YF-2200
9YF-2200
9YF-2200
9YF-2200
9YF-2200
9YF-2200
  • images
Advantage introduction
    • Suitable for baling operation of wheat, corn and other crops straw, as well as hay;

    • A perfecttool enabling scaled straw off-field operation, with fast operation speed, clean collection,.tidy bale, high compactness and no bale breaking;

    • Intermediate herringbone enhanced traction frame enabling UDLR three-stage 360°all-terrain traction operation;

    • Enlarged feed chamber, with multi mechanism adjusting straw bale compactness;

    • The low flat spring tooth floating type wide cut pickup applies to different terrain operation;

    • Heavy D type knot-tying device from Lasbury(Germany) features with high baling rates (z98%);

    • The high strength manganese steel frame has high strength, good reliability and betteradaptability;

    • The compression system is equipped with special high-end bearing and blade, with goodreliability and excellent performance;

    • Three-stage sealing and dustproof high-end bearing with good reliability and longer servicelife is adopted at key parts of the machine;

    • Mesh type rack dust extraction baseplate.


More Advantages
Param
ModelUnit9YF-2200
Overall dimension (L×W × H)mm

4800x2870x1750

Total weight

kg1740
Bale section (width x height)mm440X355
Bale lengthmm350~1200
Piston frequencytime/min100
Pickup widthmm2240
Spring toothed bar and number/3 bars and 48 teeth
Space between spring toothmm

66

Feeder rake/

4-fork feeding mechanism

Overload protection/Shear bolt
Cording box capacity/6 rolls
Cord type/

Plastic rope / Nylon rope

Matched powerkW/hp50~70kw/(65~100hp)
Drive shaft speedr/min540


Diameter of bale -
PTO output of the tractor -
Width of pickup -
Overall dimension (LXWXH) -
Weight -
Compression chamber sectional dimension (W × H) -
Capacity of grass tank -
