ZS1623RT
ZS1623RT

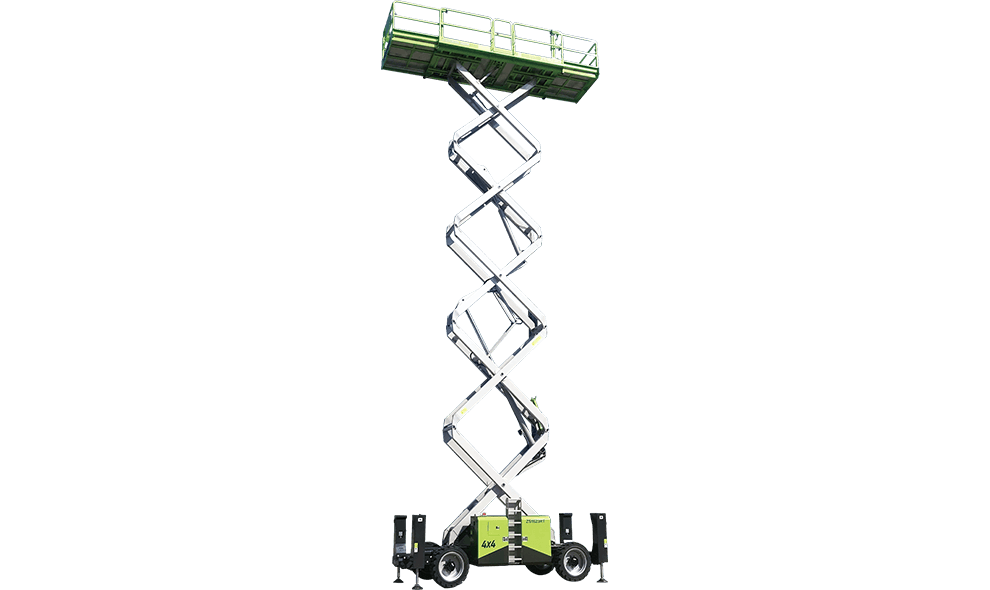

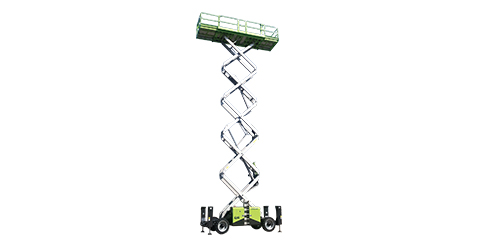

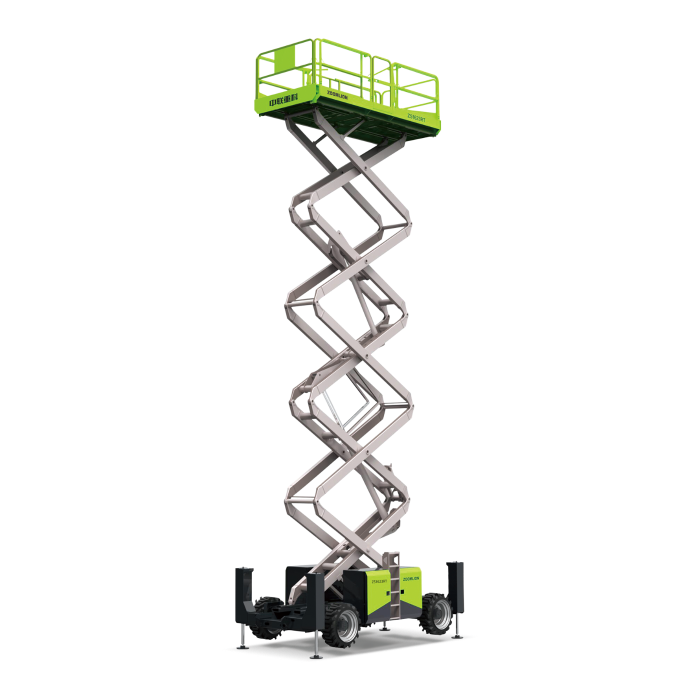

Rough Terrain Scissor Lift
ZS1623RT

ZS1623RT adopts modern design such as modularization, light weight, commonalization and intelligence and provides large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 40%, it can adapt to all kinds of extreme access jobs. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. POST (power on self test), and maintenance alert for efficient fleet management.

ZS1623RT
ZS1623RT
ZS1623RT
  • images
  • 18 m
    Work Height
  • 1.3 m
    Platform Extension
  • 680 kg
    Platform Capacity
  • 18 m
    Work Height
  • 1.3 m
    Platform Extension
  • 680 kg
    Platform Capacity
ZS1623RT
ZS1623RT
ZS1623RT
  • images
Advantage introduction
    • Strong capacity of 680kg (1500lb) with high working efficiency;

    • 4WD and axle oscillation provide great off-road capability;

    • One-Click leveling function;

    • Bilateral power system effective to lower noise.

    • Knuckles lubrication-free and maintenance-free;

    • Swing-out tray easy to service.

More Advantages
Metric / Imperial
Size
Performance
Power
Weight
Features
Work Height 18m
A Platform Height-Elevated 16m
B Platform Height-Stowed 2.03m
C Platform Dimension (Length) 3.98m
D Platform Dimension (Width) 1.83m
Platform Extension 1.3m
Overall Height (Rails Up) 3.16m
E Overall Height (Rails Down) 2.47m
F Overall Length 4.88m
G Overall Width 2.3m
H Wheelbase 2.9m
I Ground Clearance 0.275m
Platform Capacity 680kg
Capacity on Deck Extension 230kg
Drive Height 9m
Max. Number of Workers 4
Drive Speed (Stowed) 6.5km/h
Drive Speed (Raised) 0.5km/h
Turning Radius (Inside) 2.75m
Turining Radius (Outside) 5.8m
Up/Down Time 60/65s
Gradeability 40%(22°)
Max. Working Slope (Lateral/Vertical) 2°/3°
Drive 4WD
Tire 33×12-20/8 Solid Tire
Engine Kubota v2403-M-DI
Engine Power 36kw/2600rpm
Fuel Tank Capacity 105L
Diesel Tank 100L
Gross 8650kg
Standard

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Horn

Hour meter

Extension deck (bidirectional)

Scissor maintenance prop

AC power to platform

Option

Platform work lights

Airline to platform

Work Height 59ft
A Platform Height-Elevated 52ft 6in
B Platform Height-Stowed 6ft 8in
C Platform Dimension (Length) 13ft 1in
D Platform Dimension (Width) 6ft
Platform Extension 4ft 3in
Overall Height (Rails Up) 10ft 4in
E Overall Height (Rails Down) 8ft 1in
F Overall Length 16ft
G Overall Width 7ft 7in
H Wheelbase 9ft 6in
I Ground Clearance 11in
Platform Capacity 1500lb
Capacity on Deck Extension 510lb
Drive Height 29ft 6in
Max. Number of Workers 4
Drive Speed (Stowed) 4mph
Drive Speed (Raised) 0.3mph
Turning Radius (Inside) 9ft
Turining Radius (Outside) 19ft
Up/Down Time 60/65s
Gradeability 40%(22°)
Max. Working Slope (Lateral/Vertical) 2°/3°
Drive 4WD
Tire 33×12-20/8 Solid Tire
Engine Kubota v2403-M-DI
Engine Power 36kw/2600rpm
Fuel Tank Capacity 27.7 (us gal)
Diesel Tank 26.4 (us gal)
Gross 19070lb
Standard

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Horn

Hour meter

Extension deck (bidirectional)

Scissor maintenance prop

AC power to platform

Option

Platform work lights

Airline to platform
