ZS1012HA-Li

HA/HA-Li Series Scissor Lifts

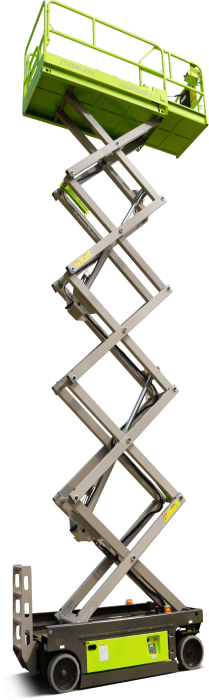

ZS1012HA-Li

Hydraulic pump-driven HA-Li scissor lifts equipped with li-ion battery increases battery life by 30% comparing to that of lead acid battery. Maintenance-free li-ion battery has 3 times longer lift than lead acid battery. Promise 5 years warranty and 100% recyclability. Battery lift time remains in ultimate weather condition even under the severe cold conditions of -20 °C (－4℉). Effective charging and longer runtime provides reliable and stable operation, and helps the rental compay for refined management, cost decreasing and benefit increasing.

Get Pricing

11.80 m

Work Height
0.91 m

Platform Extension
2 m

Overall Height (Rails Down)
350 kg

Platform Capacity

11.80 m

Work Height
0.91 m

Platform Extension
2 m

Overall Height (Rails Down)
350 kg

Platform Capacity

Advantage introduction

High Performance

Support dual mode and outdoor operation
Equipped with permanent magnet synchronous motor, energy saving, fast response and accurate control
Lithium-ion batteries features long service life could apply to -20℃ cold working conditions
Slide valve, energy-saving and no jamming
Better protection, fewer parts and more reliable

Cost Effectiveness

Knuckles lubrication-free and maintenance-free
AC motor maintenance-free
Swing-out tray easy to service

Intelligent Connectivity

Battery Management System (BMS) + Machine control system provide dual protection

More Advantages

Metric / Imperial

Size

Performance

Power

Weight

Features

Work Height	11.80m
A - Platform Height-Elevated	9.80m
B - Platform Height-Stowed	1.39m
C - Platform Length	2.30m
D - Platform Width	1.12m
Platform Extension	0.91m
E Overall Height (Rails Up)	2.53m
Overall Height (Rails Down)	1.86m
F Overall Length	2.49m
G Overall Width	1.15m
H Wheelbase	1.85m
I Ground Clearance (Stowed)	0.11m
J Ground Clearance (Raised)	0.02m

Platform Capacity	350kg
Capacity on Deck Extension	113kg
Max. Number of Workers	Indoor: 2 Outdoor: 1
Drive Speed (Stowed)	3.5km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Inside)	0.1m
Turning Radius (Outside)	2.2m
Lifting Motor	24V/3.3KW
Drive Motor	-
Up/Down Time	60s/35s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф381mm×127mm

Battery	230Ah Li-ion
Charger	24V/30A
Charger (Option)	24V/60A

Gross	2900kg

Gross

2900kg

Standard

BMS （Battery Management System）

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Horn

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

Load sensing system

Drivable at full height

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

AC power to platform

Option

Platform work lights

Airline to platform

Overhead protection bar

Work Height	38ft 9in
A - Platform Height-Elevated	32ft 2in
B - Platform Height-Stowed	4ft 7in
C - Platform Length	7ft 7in
D - Platform Width	3ft 8in
Platform Extension	3ft
E Overall Height (Rails Up)	8ft 4in
Overall Height (Rails Down)	6ft 1in
F Overall Length	8ft 2in
G Overall Width	3ft 9in
H Wheelbase	6ft 1in
I Ground Clearance (Stowed)	4.5in
J Ground Clearance (Raised)	0.75in

Platform Capacity	770lb
Capacity on Deck Extension	250lb
Max. Number of Workers	Indoor: 2 Outdoor: 1
Drive Speed (Stowed)	2.2mph
Drive Speed (Raised)	0.5mph
Turning Radius (Inside)	4in
Turning Radius (Outside)	7ft 3in
Lifting Motor	24V/3.3KW
Drive Motor	-
Up/Down Time	60s/35s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф15in×5in

Battery	230Ah Li-ion
Charger	24V/30A
Charger (Option)	24V/60A

Gross	6395lb
