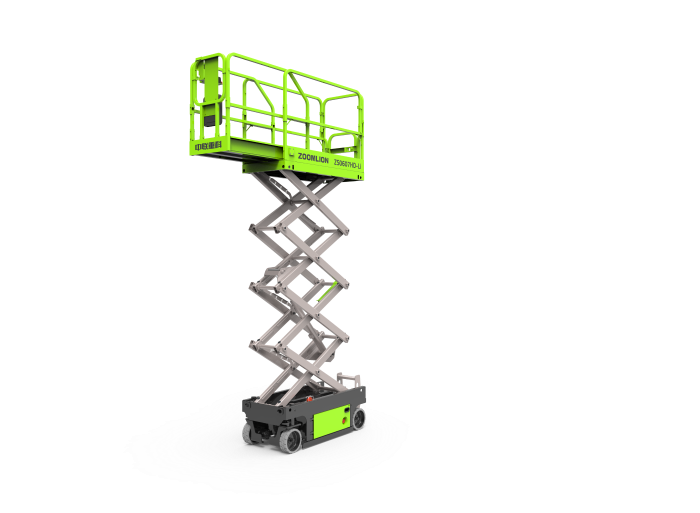

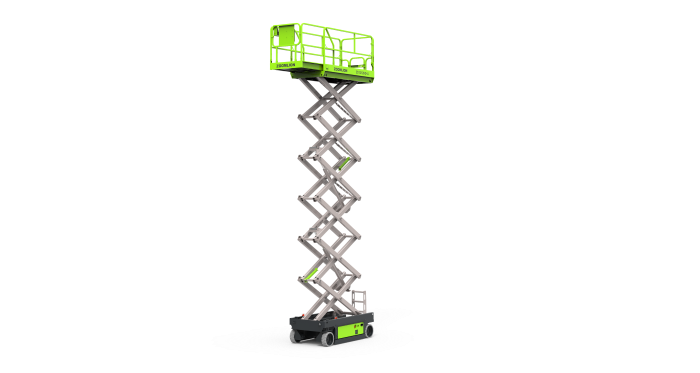

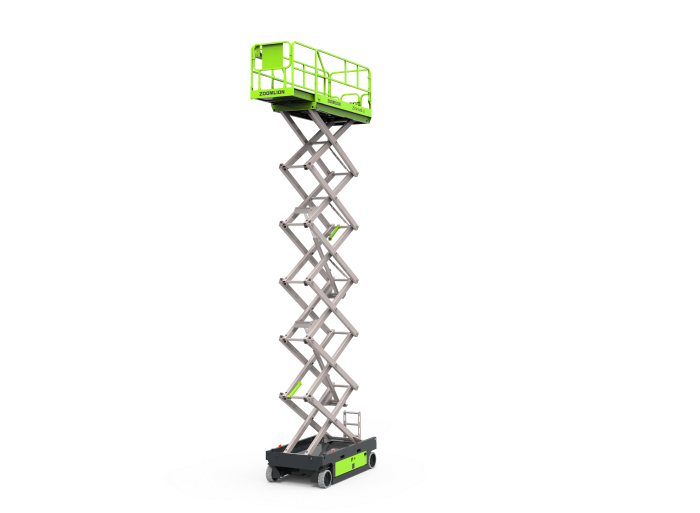

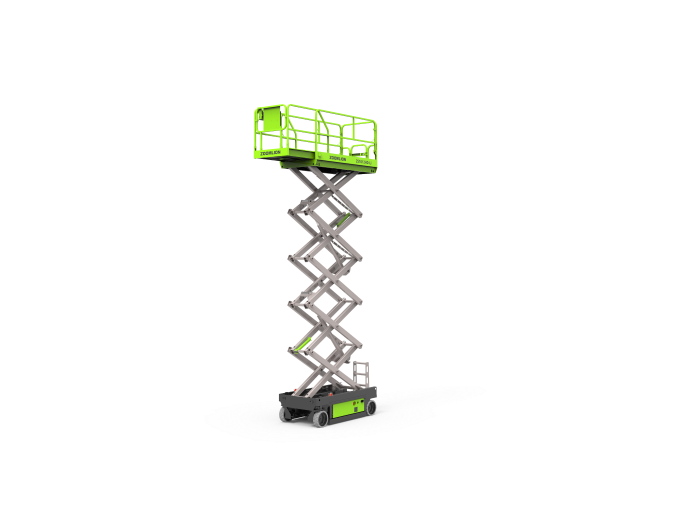

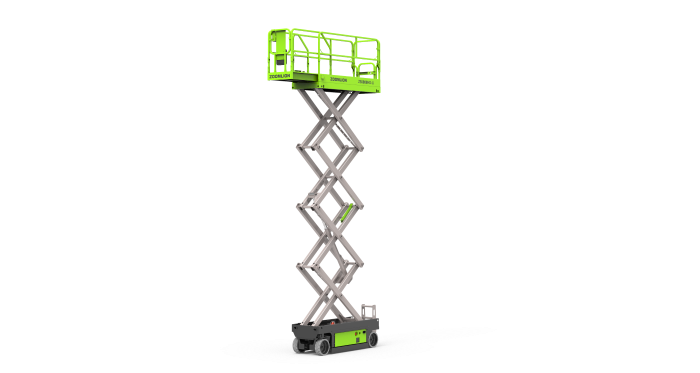

Hydraulic pump-driven HA-Li scissor lifts equipped with li-ion battery increases battery life by 30% comparing to that of lead acid battery. Maintenance-free li-ion battery has 3 times longer lift than lead acid battery. Promise 5 years warranty and 100% recyclability. Battery lift time remains in ultimate weather condition even under the severe cold conditions of -20 °C (-4℉). Effective charging and longer runtime provides reliable and stable operation, and helps the rental compay for refined management, cost decreasing and benefit increasing.
High Performance
1. Optimized design increases 20% more duty cycles with longer runtime
2. IP67 protection level with longer lifespan
3. Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20℃ cold working conditions
4. Precision control for stable operation
5. Large ground clearance (Pothole Protection retracted), great trafficability
Cost Effectiveness
1. Knuckles lubrication-free and maintenance-free;
2. AC motor maintenance-free;
3. Swing-out tray easy to service
Intelligent Connectivity
1. Battery Management System (BMS) + Machine control system provide dual protection
Work Height | 7.8m |
A - Platform Height-Elevated | 5.8m |
B - Platform Height-Stowed | 1.05m |
C - Platform Length | 1.65m |
D - Platform Width | 0.74m |
Platform Extension | 0.91m |
E Overall Height (Rails Up) | 2.20m |
Overall Height (Rails Down) | 1.79m |
F Overall Length | 1.85m |
G Overall Width | 0.76m |
H Wheelbase | 1.37m |
I Ground Clearance (Stowed) | 0.06m |
J Ground Clearance (Raised) | 0.016m |
Platform Capacity | 230kg |
Capacity on Deck Extension | 113kg |
Max. Number of Workers | 2 |
Drive Speed (Stowed) | 4km/h |
Drive Speed (Raised) | 0.8km/h |
Turning Radius (Inside) | 0.1m |
Turning Radius (Outside) | 1.6m |
Lifting Motor | 24V/3.3KW |
Drive Motor | 2×0.65KW |
Up/Down Time | 20s/24s |
Gradeability | 25%(14°) |
Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
Control | Proportional Control |
Drive | Front Wheels |
Brake | Front Wheels |
Tire | ф323mm×100mm |
Battery | 160Ah Li-ion |
Charger | 24V/30A |
Charger (Option) | - |
Gross | 1455kg |
BMS (Battery Management System)
Proportional controls
All motion alarm
Fold-down handrails
Flashing beacon
Self-closing entry gate
Horn
Autobrake system
Emergency descent system
Emergency stop button
On-board diagnostic
Over tilt protective system
Active pothole protection system
Load sensing system
Drivable at full height
Hour meter
Extension deck (unidirectional)
Charging protection system
Scissor maintenance prop
Forklift pockets
AC power to platform
Platform work lights
Airline to platform
Overhead protection bar
Work Height | 25ft 7in |
A - Platform Height-Elevated | 19ft |
B - Platform Height-Stowed | 3ft 5in |
C - Platform Length | 5ft 5in |
D - Platform Width | 2ft 5in |
Platform Extension | 3ft |
E Overall Height (Rails Up) | 7ft 3in |
Overall Height (Rails Down) | 5ft 10in |
F Overall Length | 6ft 1in |
G Overall Width | 2ft 6in |
H Wheelbase | 4ft 6in |
I Ground Clearance (Stowed) | 2.4in |
J Ground Clearance (Raised) | 0.65in |
Platform Capacity | 510lb |
Capacity on Deck Extension | 250lb |
Max. Number of Workers | 2 |
Drive Speed (Stowed) | 2.5mph |
Drive Speed (Raised) | 0.5mph |
Turning Radius (Inside) | 4in |
Turning Radius (Outside) | 5ft 3in |
Lifting Motor | 24V/3.3KW |
Drive Motor | 2×0.65KW |
Up/Down Time | 20s/24s |
Gradeability | 25%(14°) |
Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
Control | Proportional Control |
Drive | Front Wheels |
Brake | Front Wheels |
Tire | ф13in×4in |
Battery | 160Ah Li-ion |
Charger | 24V/30A |
Charger (Option) | - |
Gross | 3210lb |
BMS (Battery Management System)
Proportional controls
All motion alarm
Fold-down handrails
Flashing beacon
Self-closing entry gate
Horn
Autobrake system
Emergency descent system
Emergency stop button
On-board diagnostic
Over tilt protective system
Active pothole protection system
Load sensing system
Drivable at full height
Hour meter
Extension deck (unidirectional)
Charging protection system
Scissor maintenance prop
Forklift pockets
AC power to platform
Platform work lights
Airline to platform
Overhead protection bar
