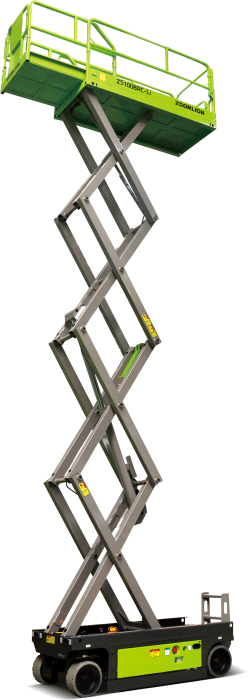

ZS0808AC-Li
ZS0808AC-Li
AC/AC-Li Scissor Series
ZS0808AC-Li

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.


  • 10.00 m
    Work Height
  • 0.91 m
    Platform Extension
  • 1.9 m
    Overall Height (Rails Down)
  • 230 kg
    Platform Capacity
  • 10.00 m
    Work Height
  • 0.91 m
    Platform Extension
  • 1.9 m
    Overall Height (Rails Down)
  • 230 kg
    Platform Capacity
Advantage introduction
    • High Performance

    • AC system offers higher working efficiency;

    • IP67 reached that AC motor offers longer lifespan;

    • Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20℃ cold working conditions.

    • Cost Effectiveness

    • Knuckles lubrication-free and maintenance-free;

    • AC motor full lifecycle maintenance-free;

    • Swing-out tray easy to service.

    • Intelligent Connectivity

    • Battery Management System (BMS) + Machine control system provide dual protection

More Advantages
Metric / Imperial
Size
Performance
Power
Weight
Features
Work Height 10.00m/7.8m
A - Platform Height-Elevated 8.00m/5.8m
B - Platform Height-Stowed 1.26m
C - Platform Length 2.30m
D - Platform Width 0.81m
Platform Extension 0.91m
E - Overall Height (Rails Up) 2.4m
Overall Height (Rails Down) 1.9m
F - Overall Length 2.49m
G - Overall Width 0.81m
H - Wheelbase 1.85m
I - Ground Clearance (Stowed) 0.11m
J - Ground Clearance (Raised) 0.02m
Platform Capacity 230kg
Capacity on Deck Extension 113kg
Max. Number of Workers 2/1
Drive Speed (Stowed) 4km/h
Drive Speed (Raised) 0.8km/h
Turning Radius (Inside) 0.1m
Turning Radius (Outside) 2.1m
Lifting Motor 24V/3.3KW
Drive Motor 2x0.75KW
Up/Down Time 31s/40s
Gradeability 25%(14°)
Max. Working Slope (Lateral/Vertical) 1.5°/3°
Control Proportional Control
Drive Front Wheels
Brake Front Wheels
Tire ф381mm×127mm
Battery 160Ah Li-ion
Charger 24V/30A
Charger (Option) 24V/60A
Gross 2090kg
Standard

BMS (Battery Management System)

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

AC power to platform

Drivable at full height

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

Horn

Option

Platform work lights

Airline to platform

Overhead protection bar

Work Height 32ft 10in/25ft 7in
A - Platform Height-Elevated 26ft 3in/19ft
B - Platform Height-Stowed 4ft 2in
C - Platform Length 7ft 7in
D - Platform Width 2ft 8in
Platform Extension 3ft
E - Overall Height (Rails Up) 7ft 11in
Overall Height (Rails Down) 6ft 3in
F - Overall Length 8ft 2in
G - Overall Width 2ft 8in
H - Wheelbase 6ft 1in
I - Ground Clearance (Stowed) 4.5in
J - Ground Clearance (Raised) 0.75in
Platform Capacity 510lb
Capacity on Deck Extension 250lb
Max. Number of Workers 2/1
Drive Speed (Stowed) 2.5mph
Drive Speed (Raised) 0.5mph
Turning Radius (Inside) 4in
Turning Radius (Outside) 6ft 11in
Lifting Motor 24V/3.3KW
Drive Motor 2x0.75KW
Up/Down Time 31s/40s
Gradeability 25%(14°)
Max. Working Slope (Lateral/Vertical) 1.5°/3°
Control Proportional Control
Drive Front Wheels
Brake Front Wheels
Tire ф15in×5in
Battery 160Ah Li-ion
Charger 24V/30A
Charger (Option) 24V/60A
Gross 4610lb
Standard

BMS (Battery Management System)

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

AC power to platform

Drivable at full height

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

Horn

Option

Platform work lights

Airline to platform

Overhead protection bar
