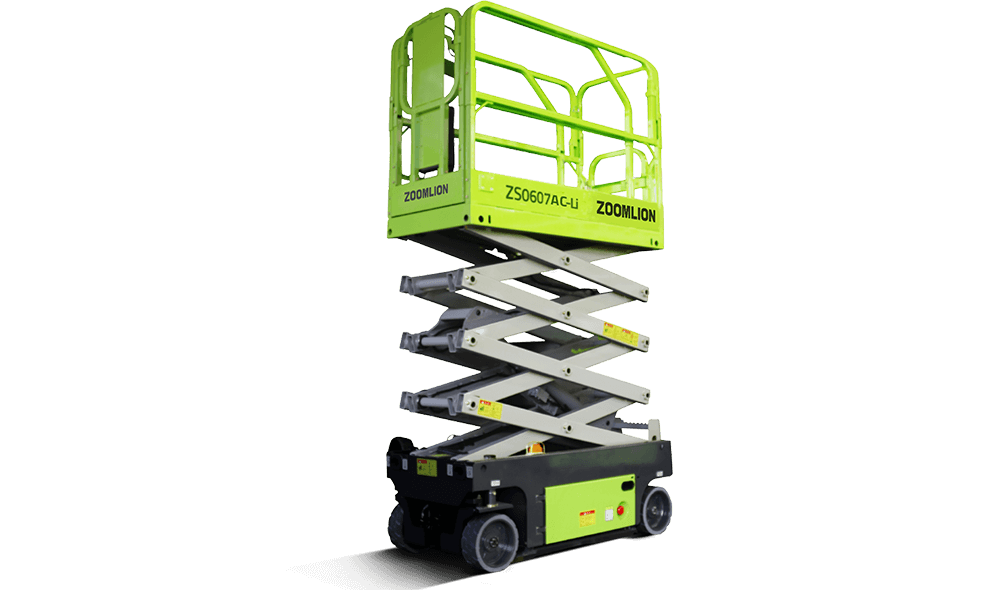

ZS0607ACW-Li

AC/AC-Li Scissor Series

ZS0607ACW-Li

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.

Get Pricing

images

7.8 m

Work Height
0.91 m

Platform Extension
1.79 m

Overall Height (Rails Down)
230 kg

Platform Capacity

7.8 m

Work Height
0.91 m

Platform Extension
1.79 m

Overall Height (Rails Down)
230 kg

Platform Capacity

images

Advantage introduction

High Performance

AC system offers higher working efficiency
IP67 rated waterproof protection on AC wheel motors for longer lifespan
Lithium-ion batteries features long service life that the running time increases by 30%, andcould apply to -20 C cold working conditions

Cost Effectiveness

Knuckles lubrication-free and maintenance-free
AC motor full lifecycle maintenance-free
Swing-out tray easy to service

Intelligent Connectivity

Battery Management System (BMS)+ Machine control system provide dual protection

More Advantages

Metric / Imperial

Size

Performance

Power

Weight

Features

Work Height	7.8m
A - Platform Height-Elevated	5.8m
B - Platform Height-Stowed	1.05m
C - Platform Length	1.65m
D - Platform Width	0.74m
Platform Extension	0.91m
E - Overall Height (Rails Up)	2.20m
Overall Height (Rails Down)	1.79m
F - Overall Length	1.85m
G - Overall Width	0.81m
H - Wheelbase	1.37m
I - Ground Clearance (Stowed)	0.06m
J - Ground Clearance (Raised)	0.016m

Platform Capacity	230kg
Capacity on Deck Extension	113kg
Max. Number of Workers	2/1
Drive Speed (Stowed)	4km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Inside)	0.1m
Turning Radius (Outside)	1.6m
Lifting Motor	24V/3.3KW
Drive Motor	2x0.65KW
Up/Down Time	20s/24s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф323mm×100mm

Battery	160Ah Li-ion
Charger	24V/30A
Charger (Option)	-

Gross	1620kg

Gross

1620kg

Standard

BMS （Battery Management System）

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

AC power to platform

Drivable at full height

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

Horn

Option

Platform work lights

Airline to platform

Overhead protection bar

Work Height	25ft 7in
A - Platform Height-Elevated	19ft
B - Platform Height-Stowed	3ft 5in
C - Platform Length	5ft 5in
D - Platform Width	2ft 5in
Platform Extension	3ft
E - Overall Height (Rails Up)	7ft 3in
Overall Height (Rails Down)	5ft 10in
F - Overall Length	6ft 1in
G - Overall Width	2ft 8in
H - Wheelbase	4ft 6in
I - Ground Clearance (Stowed)	2.4in
J - Ground Clearance (Raised)	0.65in

Platform Capacity	510lb
Capacity on Deck Extension	250lb
Max. Number of Workers	2/1
Drive Speed (Stowed)	2.5mph
Drive Speed (Raised)	0.5mph
Turning Radius (Inside)	4in
Turning Radius (Outside)	5ft 3in
Lifting Motor	24V/3.3KW
Drive Motor	2x0.65KW
Up/Down Time	20s/24s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф13in×4in

Battery	160Ah Li-ion
Charger	24V/30A
Charger (Option)	-

Gross	3570lb
