ZE1250G
ZE1250G
Large Excavator
ZE1250G
Fuel-efficient power intelligent hydraulics

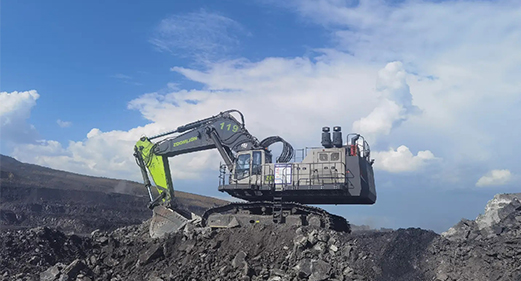

ZE1250G is a crawler backhoe hydraulic excavator for mining, mainly used in medium and large open pit mines (coal mines, non-ferrous metal mines, building materials mines) and large foundation projects of earth and rock stripping and material loading. The machine has the characteristics of reliability, durability, energy saving, and high efficiency. The working environment temperature is -40℃ ~ 50℃. The product uses a positive flow control system, equipped with an internationally well-known brand high-power engine, providing an effective guarantee for customer efficiency.

ZE1250G
  • video
  • 116000 kg
    Operating weight
  • 567/1800 kw/rpm
    Rated power
  • 7.1-10
    Capacity(Range)
  • 116000 kg
    Operating weight
  • 567/1800 kw/rpm
    Rated power
  • 7.1-10
    Capacity(Range)
ZE1250G
  • video
Advantage introduction
    • Large-torque swing and travel assemblies

    • Custom Cummins engine, output power 567kW, Strong power

    • 3 variable piston pump, flow up to 532L/min

    • Large displacement swing motor

    • large diameter main valve + auxiliary valve


More Advantages
Basic Technical Data
Operating Range
Max. Dumping Height
Operating weight 116000kg
Rated power 567kw/1800rpm
Standard capacity 7.1-10m³
Max. Digging Radius 13800mm
Max. Digging Depth 5380mm
Operating weight 116000kg
Rated power 567kw/1800rpm
Standard capacity 7.1-10m³
Max. Digging Radius 13800mm
Max. Digging Depth 5380mm
