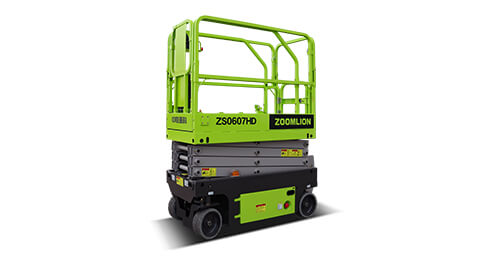

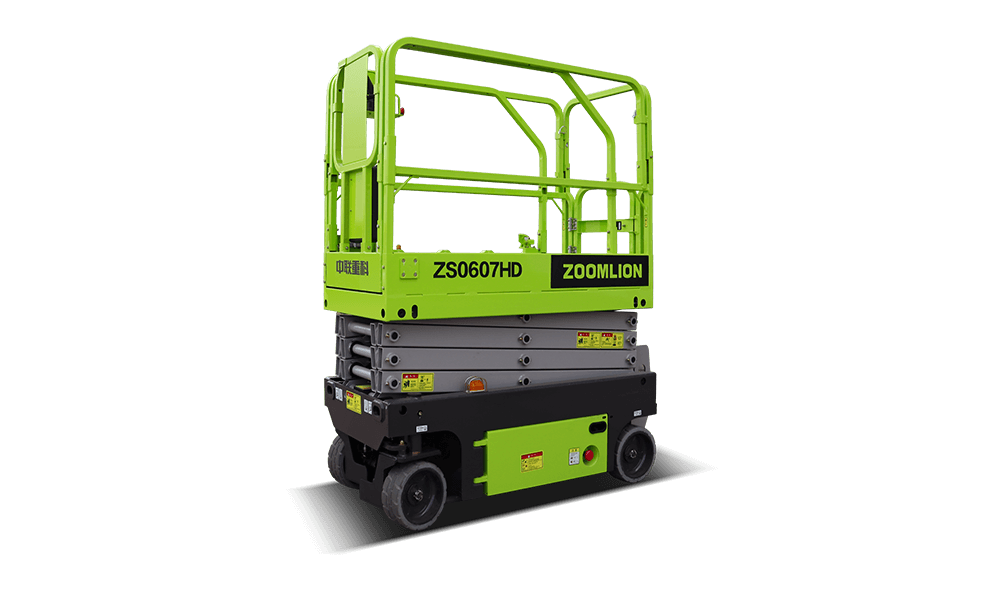

ZS0607HD

HD/HD-Li Series Scissor Lifts

ZS0607HD

Eco-friendly scissors feature cutting-edge driving system with high-quality batteries.

Get Pricing

images

7.8 m

Work Height
0.91 m

Platform Extension
1.79 m

Overall Height (Rails Down)
230 kg

Platform Capacity

7.8 m

Work Height
0.91 m

Platform Extension
1.79 m

Overall Height (Rails Down)
230 kg

Platform Capacity

images

Advantage introduction

Cost Effectiveness

Optimized design increases 20% more duty cycles with longer runtime
Precision control for stable operation
Large ground clearance (Pothole Protection retracted), great trafficability

Easy Maintenance & Service

Common components and modular design, easy to maintenance
Bilateral swing-out trays [battery & hydraulic), simple to service
Robust & build to last, reliable and safe

More Advantages

Metric / Imperial

Size

Performance

Power

Weight

Features

Work Height	7.8m
A - Platform Height-Elevated	5.8m
B - Platform Height-Stowed	1.05m
C - Platform Length	1.65m
D - Platform Width	0.74m
Platform Extension	0.91m
E - Overall Height (Rails Up)	2.20m
Overall Height (Rails Down)	1.79m
F - Overall Length	1.85m
G - Overall Width	0.76m
H Wheelbase	1.37m
I - Ground Clearance (Stowed)	0.06m
J - Ground Clearance (Raised)	0.016m

Platform Capacity	230kg
Capacity on Deck Extension	113kg
Max. Number of Workers	Indoor: 2
Drive Speed (Stowed)	3.5km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Inside)	0.1m
Turning Radius (Outside)	1.6m
Up/Down Drive Motor	24V/3.3KW
Up/Down Time	20s/24s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Rear Wheels
Tire	ф305mm×114mm

Battery	4×6V/170Ah (HOPPECKE) 4×6V/180Ah (QUIMO)
Charger	24V/30A
Charger (Option)	-

Gross	1425kg

Gross

1425kg

Standard

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Emergency descent system

Active pothole protection system

Hour meter

Forklift pockets

Horn

AC power to platform

Drivable at full height

Scissor maintenance prop

Charging protection system

Extension deck (unidirectional)

Autobrake system

On-board diagnostic

Emergency stop button

Over tilt protective system

Maintenance-free battery

Load sensing system

Option

Airline to platform

Platform work lights

Overhead protection bar

Work Height	25ft 7in
A - Platform Height-Elevated	19ft
B - Platform Height-Stowed	3ft 5in
C - Platform Length	5ft 5in
D - Platform Width	2ft 5in
Platform Extension	3ft
E - Overall Height (Rails Up)	7ft 3in
Overall Height (Rails Down)	5ft 10in
F - Overall Length	6ft 1in
G - Overall Width	2ft 6in
H Wheelbase	4ft 6in
I - Ground Clearance (Stowed)	2.4in
J - Ground Clearance (Raised)	0.65in

Platform Capacity	510lb
Capacity on Deck Extension	250lb
Max. Number of Workers	Indoor: 2
Drive Speed (Stowed)	2.2mph
Drive Speed (Raised)	0.5mph
Turning Radius (Inside)	4in
Turning Radius (Outside)	5ft3in
Up/Down Drive Motor	24V/3.3KW
Up/Down Time	20s/24s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Rear Wheels
Tire	ф12in×4.5in

Battery	4×6V/170Ah (HOPPECKE) 4×6V/180Ah (QUIMO)
Charger	24V/30A
Charger (Option)	-

Gross	3140lb
