ZA10RJE
ZA10RJE

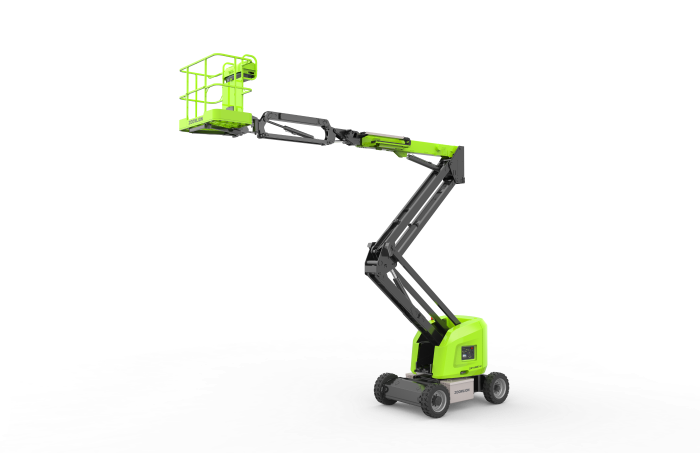

Electric Articulating Boom Lifts
ZA10RJE

Electric articulating boom lifts deliver eco-friendly footprint, precise maneuvering, greater endurance and extreme flexibility.


Get Pricing
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
  • images
  • 11.55 m
    Work Height
  • 6.85 m
    Horizontal Outreach
  • 4.6 m
    Up and Over Height
  • 230 kg
    Platform Capacity
  • 11.55 m
    Work Height
  • 6.85 m
    Horizontal Outreach
  • 4.6 m
    Up and Over Height
  • 230 kg
    Platform Capacity
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
ZA10RJE
  • images
Advantage introduction

    • Center layout, great structural rigidity, and small boom deflection

    • Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control

    • ±90° Jib rotation offers great up and over height

    • Compact dimension of 1.19m (3ft 11in) stowed width, ideal for narrow working conditions

    • Tubular batteries feature long working time and lifespan, and easy for maintenance

More Advantages
Metric / Imperial
Size
Performance
Power
Tire
Weight
Features
Work Height 11.55m
Platform Height 9.55m
Horizontal Outreach 6.85m
Up and Over Height 4.6m
A - Stowed Length 5.5m
B - Stowed Width 1.19m
C - Stowed Height 1.98m
D - Platform Length 1.17m
E - Platform Width 0.76m
F - Wheelbase 1.65m
G - Ground Clearance 0.1m
Jib length 1.24m
Transport Length (jib tucked under) 3.95m
Transport Height (jib tucked under) 2.45m
Platform Capacity 230kg
Drive Speed 5km/h
Gradeability 35% (19°)
Axles Oscillation -
Turning Radius (Inside) 1.7m
Turning Radius (Outside) 3.25m
Jib Swing 355° non-continuous
Turntable Swing ±90°
Platform Rotation ±90°
H-Tail Swing 0m
Max. Working Slope -
Max. Wind Speed 12.5m/s
Battery 24×2V/330Ah
Charger 48V/35A
Drive Motor AC 32V/3.3kW
Lift Motor DC 48V/4.5kW
Auxiliary Power Electric pumpDC
Hydraulic Tank Capacity 15L
Type 22×7×17.75 seamless tire
Gross 6550kg
Standard

Proportional control

All motion alarm

Flashing beacon

Self-closing entry gate

Emergency descent system

Emergency stop button

Auto-leveling system

On-board diagnostic system

Over tilt protection system

Solid seamless tire

Load sensing system

4.3' LED display

Horn

Timer

Jib rotation

Vertical lifting function

Thumb joystick for steering

35A battery smart charger

Battery level display

Low electric quantity protection


Option

Platform light

AC power to platform

Airline to platform

Electric auxiliary pump

Platform console cover (Rated capacity reduced by 10kg)

Anti-crushing device (Rated capacity reduced by 10kg)

Work Height 37ft 11in
Platform Height 31ft 4in
Horizontal Outreach 22ft 5in
Up and Over Height 15ft 1in
A - Stowed Length 18ft 1in
B - Stowed Width 3ft 11in
C - Stowed Height 6ft 6in
D - Platform Length 3ft 10in
E - Platform Width 2ft 6in
F - Wheelbase 5ft 5in
G - Ground Clearance 4in
Jib length 4ft 1in
Transport Length (jib tucked under) 13ft
Transport Height (jib tucked under) 8ft
Platform Capacity 510lb
Drive Speed 3.11mph
Gradeability 35% (19°)
Axles Oscillation -
Turning Radius (Inside) 5ft 7in
Turning Radius (Outside) 10ft 8in
Jib Swing 355° non-continuous
Turntable Swing ±90°
Platform Rotation ±90°
H-Tail Swing 0m
Max. Working Slope -
Max. Wind Speed 28mph
Battery 24×2V/330Ah
Charger 48V/35A
Drive Motor AC 32V/4.4hp
Lift Motor DC 48V/6hp
Auxiliary Power Electric pumpDC
Hydraulic Tank Capacity 3.96(us gal)
Type 22×7×17.75 seamless tire
Gross 14440lb
Standard

Proportional control

All motion alarm

Flashing beacon

Self-closing entry gate

Emergency descent system

Emergency stop button

Auto-leveling system

On-board diagnostic system

Over tilt protection system

Solid seamless tire

Load sensing system

4.3' LED display

Horn

Timer

Jib rotation

Vertical lifting function

Thumb joystick for steering

35A battery smart charger

Battery level display

Low electric quantity protection


Option

Platform light

AC power to platform

Airline to platform

Electric auxiliary pump

Platform console cover (Rated capacity reduced by 10kg)

Anti-crushing device (Rated capacity reduced by 10kg)
