ZS0812HA

HA/HA-Li Series Scissor Lifts

ZS0812HA

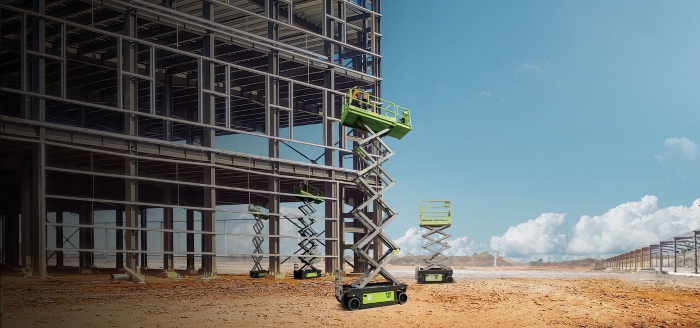

HA series scissor lifts excels in construction, plant building and housing mainrenance featuring low CG, stable operation and large lift capacity. Platform height ranges from 4 to 14 meters (14ft9in to 44ft 11in). Hydraulic pump-driven provides excellent performance to complete work on adverse jobsites.

Get Pricing

Advantage introduction

High Performance

1. Optimized design increases 20% more duty cycles with longer runtime

2. IP67 protection level with longer lifespan

3. Precision control for stable operation

4. Large ground clearance (Pothole Protection retracted), great trafficability

Cost Effectiveness

1. Knuckles lubrication-free and maintenance-free;

2. AC motor maintenance-free;

3. Swing-out tray easy to service

More Advantages

Metric / Imperial

Param


Work Height	10m
A - Platform Height-Elevated	8m
B - Platform Height-Stowed	1.26m
C - Platform Length	2.3m
D - Platform Width	1.12m
Platform Extension	0.91m
E Overall Height (Rails Up)	2.4m
Overall Height (Rails Down)	1.73m
F Overall Length	2.49m
G Overall Width	1.15m
H Wheelbase	1.85m
I Ground Clearance (Stowed)	0.11m
J Ground Clearance (Raised)	0.02m

Platform Capacity	450kg
Capacity on Deck Extension	113kg
Max. Number of Workers	2/1
Drive Speed (Stowed)	3.5km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Inside)	0.1m
Turning Radius (Outside)	2.2m
Lifting Motor	24V/3.3KW
Drive Motor	-
Up/Down Time	31s/40s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф381mm×127mm

Battery	4×6V/190Ah (TIANPENG)
Charger	24V/30A
Charger (Option)	-

Gross	2320kg


Work Height	32ft 10in
A - Platform Height-Elevated	26ft 3in
B - Platform Height-Stowed	4ft 2in
C - Platform Length	4ft 7in
D - Platform Width	3ft 8in
Platform Extension	3ft
E Overall Height (Rails Up)	7ft 11in
Overall Height (Rails Down)	5ft 8in
F Overall Length	8ft 2in
G Overall Width	3ft 9in
H Wheelbase	6ft 1in
I Ground Clearance (Stowed)	4.5in
J Ground Clearance (Raised)	0.75in

Platform Capacity	990lb
Capacity on Deck Extension	250lb
Max. Number of Workers	2/1
Drive Speed (Stowed)	2.2mph
Drive Speed (Raised)	0.5mph
Turning Radius (Inside)	4in
Turning Radius (Outside)	7ft 3in
Lifting Motor	24V/3.3KW
Drive Motor	-
Up/Down Time	31s/40s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф15in×5in

Battery	4×6V/190Ah (TIANPENG)
Charger	24V/30A
Charger (Option)	-

Gross	5155lb
