ZC123S
ZC123S

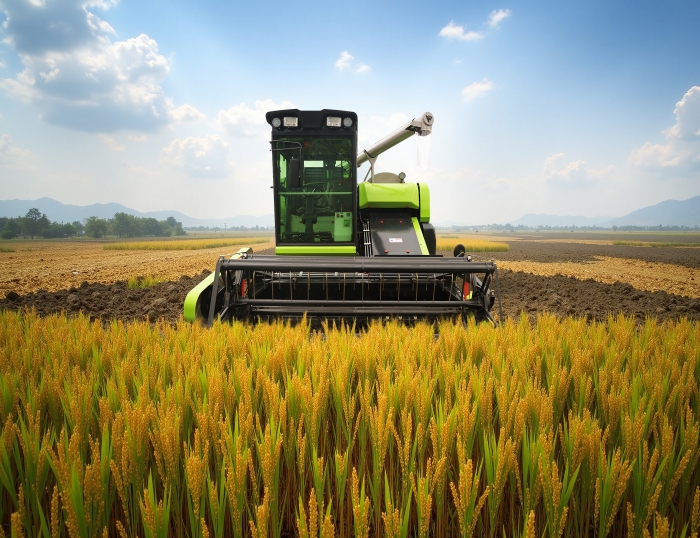

Combine Harvester
ZC123S

120hp

Xinchai engine

Large 1800L grain tank & 220L fuel tank

Well design robust chassis suite for navigate field ridges

Hydraulic variable speed motor operated reel

Using high-strength materials for extended lifetime

270° rotating unloading auger

Suitability for corn, wheat & rapeseed with optional attachments

Ability to attach optional straw chopper for straw managements

  • 120 hp
    Horse Power
  • 2200/2600 mm
    Cutting width
  • 4250 kg
    Weight
  • 120 hp
    Horse Power
  • 2200/2600 mm
    Cutting width
  • 4250 kg
    Weight
Advantage introduction
    • Equipped with 120hp turbocharged engine to match various field conditionswith high fuel efficiency.

    • Operate by steering wheel with modern A/C cabin for easy maneuvering and comfort.

    • Hydraulic dual-drive motor system provides harvester in a 360-degree sharp turningradius for superior paddy field steering rotation.

    • Large 1800L grain tank & 220L fuel tank loading capacity for increase productivity.

    • Well design robust chassis suite for navigate field ridges.

    • Modern lubrication system, making easy maintenance & expand part's life.

    • High-performance threshing cylinder & adjustable double-layer vibrating screen supports for superior cleaning negligible losses.

    • Operator control air flush radiator cleaning system expand life time of engine.

    • Hydraulic variable speed motor operated reel suit for deferent crop varieties & efficientharvesting without tangling.

    • 270-degree rotating unloading auger for efficient grain discharge.

    • Used high-strength materials for extended lifetime.

    • Suitability for corn, wheat & rapeseed with optional attachments.

    • Ability to attach optional straw chopper for straw management.


More Advantages
Param
Rated HP 120HP
Feeding capacity 7kg/s
Cutting Width 2200/2600mm
Rated speed -
Gauge 1300mm
Minimum ground clearance 300mm
Threshing  Drum (Diameter×Length) 605×2220
Main roller(O.D.×length) -
Auxiliary roller(O.D.×length) -
Operation Productivity 0.3-0.6hm²/h
Rated HP 120HP
Feeding capacity 7kg/s
Cutting Width 2200/2600mm
Rated speed -
Gauge 1300mm
Minimum ground clearance 300mm
Threshing  Drum (Diameter×Length) 605×2220
Main roller(O.D.×length) -
Auxiliary roller(O.D.×length) -
Operation Productivity 0.3-0.6hm²/h
