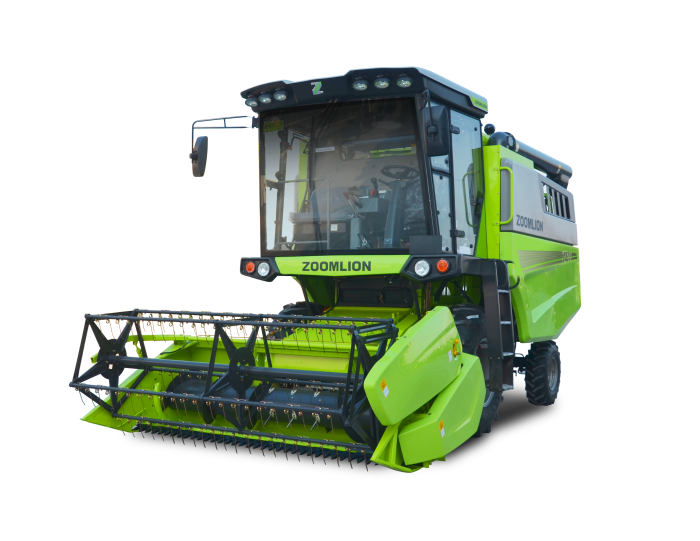

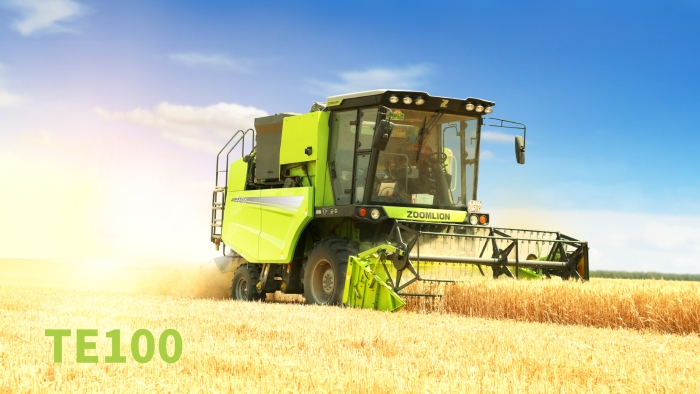

TE100
TE100
Combine Harvester
TE100

A longitudinal axial combine harvester designed for wheat, corn, millet, sorghum and other grain crops.

TE100
TE100
TE100
TE100
TE100
TE100
TE100
  • images
  • 7300 kg
    Weight
  • 10 kg/s
    Throughput capacity
  • L/s 60
    Unloading rate
  • 7300 kg
    Weight
  • 10 kg/s
    Throughput capacity
  • L/s 60
    Unloading rate
TE100
TE100
TE100
TE100
TE100
TE100
TE100
  • images
Advantage introduction
    • Excellent crop adaptability: A single longitudinal axial threshing system with steplessly adjustable cylinder speed and concave clearance delivers superior threshing and separation efficiency. Suitable for harvesting wheat, corn kernel, soybean, rice and other grain crops.

    • High productivity: Powered by a Yuchai 140 kW engine featuring turbocharging and high-pressure common rail technology. Coupled with a hydrostatic 4WD system, it effortlessly conquers complex field conditions and rugged terrain, ensuring highly efficient harvesting operations.

    • Enhanced operator comfort: Pressurized, fully enclosed luxury cab with HVAC system, delivering low vibration and low noise levels. Ergonomic deluxe suspension seat for low vibration and improved ride comfort. Standard electric rearview mirrors with in-cab one-touch adjustment for improved operator convenience.

    • High reliability: High-strength steel frame increases structural strength by over 50%. Critical components are equipped with maintenance-free imported PEER bearings for enhanced reliability.


More Advantages
Param


Product SeriesTE100
Machine
Throughput capacitykg/s10
Overall dimensions (excluding header)
(L × W × H)
mm6100×2900×3420
Operating weight (excluding header)
kg7300
Min. ground clearancemm420
Engine
Model/Yuchai YCA05190-T300
Number of cylinderscylinders4
Fuel tank capacityL440
Threshing & Cleaning System
Structural design/Single axial rotor (combined threshing & separation)
Cylinder (diameter × length)mmφ620×3180
Cylinder speedr/min310-1030
Total separation area2.5
Cleaning system type/Air & sieve cleaning system
Grain Tank
Grain tank capacitym33.6
Unloading rateL/s60
Chassis System
Transmission type/Mechanical + HST
Tires (front/rear)/19.5L-24, 380/70R20
Drive type/4WD
Header
Rigid grain headerDimensionsm2.96/3.25/4
Weightkg726/785/895
Soybean flex headerDimensionsm4
Weightkg1200
Corn header
(with stalk chopper)
Dimensionsrows/m5*700/5*750/4*900
Weightkg1867/1720/1675
Multi-crop headerDimensionsrows/m7*410
Weightkg1100


Rated HP 190hp
Feeding capacity -
Cutting Width -
Rated speed 910-1480RPM
Gauge -
Minimum ground clearance -
Threshing  Drum (Diameter×Length) φ620×3230mm
Main roller(O.D.×length) -
Auxiliary roller(O.D.×length) -
Operation Productivity 0.8-1.6hm²/h
