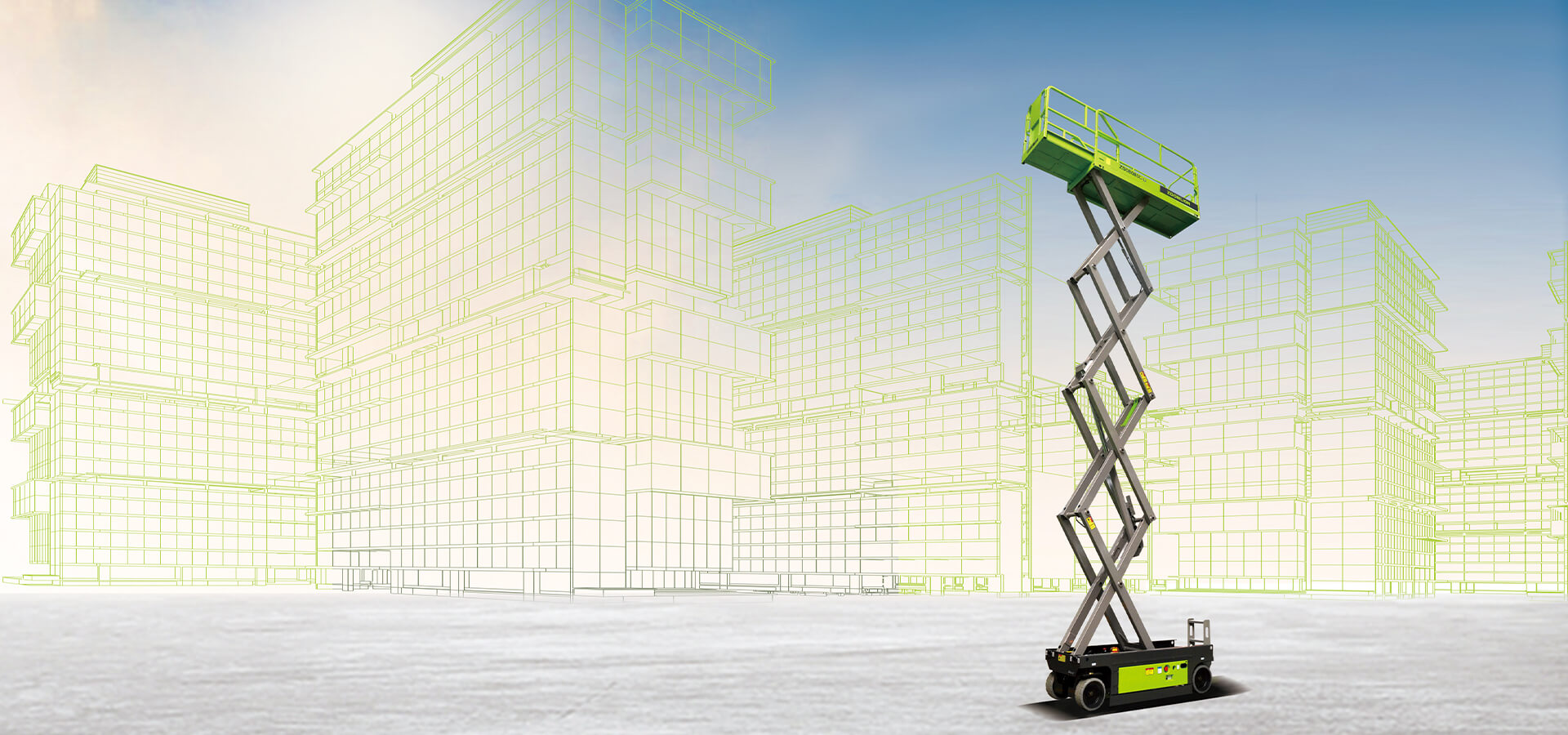

Electric powered scissor lifts, boosting high productivity with zero emission and low noise working conditions.
High Performance
The efficiency of direct electric-driven almost doubles hydraulic pump-driven
Greater platform capacity with better performance on-the-job
Front-wheel drive and brake offer mobility and versatility
Easy Maintenance & Service
Common components and modular design, easy to maintenance
Bilateral swing-out trays (battery & hydraulic), simple to service
Robust & build to last, reliable and safe
Work Height | 7.8m |
A - Platform Height-Elevated | 5.8m |
B - Platform Height-Stowed | 1.05m |
C - Platform Length | 1.65m |
D - Platform Width | 0.74m |
Platform Extension | 0.91m |
E Overall Height (Rails Up) | 2.20m |
Overall Height (Rails Down) | 1.79m |
F Overall Length | 1.85m |
G Overall Width | 0.76m |
H Wheelbase | 1.37m |
I Ground Clearance (Stowed) | 0.06m |
J Ground Clearance (Raised) | 0.016m |
Platform Capacity | 230kg |
Capacity on Deck Extension | 113kg |
Max. Number of Workers | 2 |
Drive Speed (Stowed) | 4km/h |
Drive Speed (Raised) | 0.8km/h |
Turning Radius (Inside) | 0.1m |
Turning Radius (Outside) | 1.6m |
Lifting Motor | 24V/3.3KW |
Drive Motor | 2×0.65KW |
Up/Down Time | 20s/24s |
Gradeability | 25%(14°) |
Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
Control | Proportional Control |
Drive | Front Wheels |
Brake | Front Wheels |
Tire | ф323mm×100mm |
Battery | 4×6V/170Ah (HOPPECKE) 4×6V/180Ah (QUIMO) |
Charger | 24V/30A |
Charger (Option) | - |
Gross | 1455kg |
Proportional controls
All motion alarm
Fold-down handrails
Flashing beacon
Self-closing entry gate
Emergency descent system
Active pothole protection system
Hour meter
Forklift pockets
Maintenance-free battery
Drivable at full height
Scissor maintenance prop
Charging protection system
Extension deck (unidirectional)
Autobrake system
On-board diagnostic
Emergency stop button
Over tilt protective system
Horn
Load sensing system
Airline to platform
AC power to platform
Platform work lights
Work Height | 25ft 7in |
A - Platform Height-Elevated | 19ft |
B - Platform Height-Stowed | 3ft 5in |
C - Platform Length | 5ft 5in |
D - Platform Width | 2ft 5in |
Platform Extension | 3ft |
E Overall Height (Rails Up) | 7ft 3in |
Overall Height (Rails Down) | 5ft 10in |
F Overall Length | 6ft 1in |
G Overall Width | 2ft 6in |
H Wheelbase | 4ft 6in |
I Ground Clearance (Stowed) | 2.4in |
J Ground Clearance (Raised) | 0.65in |
Platform Capacity | 510lb |
Capacity on Deck Extension | 250lb |
Max. Number of Workers | 2 |
Drive Speed (Stowed) | 2.5mph |
Drive Speed (Raised) | 0.5mph |
Turning Radius (Inside) | 4in |
Turning Radius (Outside) | 5ft 3in |
Lifting Motor | 24V/3.3KW |
Drive Motor | 2×0.65KW |
Up/Down Time | 20s/24s |
Gradeability | 25%(14°) |
Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
Control | Proportional Control |
Drive | Front Wheels |
Brake | Front Wheels |
Tire | ф13in×4in |
Battery | 4×6V/170Ah (HOPPECKE) 4×6V/180Ah (QUIMO) |
Charger | 24V/30A |
Charger (Option) | - |
Gross | 3210lb |
Proportional controls
All motion alarm
Fold-down handrails
Flashing beacon
Self-closing entry gate
Emergency descent system
Active pothole protection system
Hour meter
Forklift pockets
Maintenance-free battery
Drivable at full height
Scissor maintenance prop
Charging protection system
Extension deck (unidirectional)
Autobrake system
On-board diagnostic
Emergency stop button
Over tilt protective system
Horn
Load sensing system
Airline to platform
AC power to platform
Platform work lights
