ZT96A
ZT96A
Mining Dump Truck
ZT96A
SUITABLE FOR THE CONDITION OF LONG-TERM LOW-SPEED AND HIGH- TORQUE

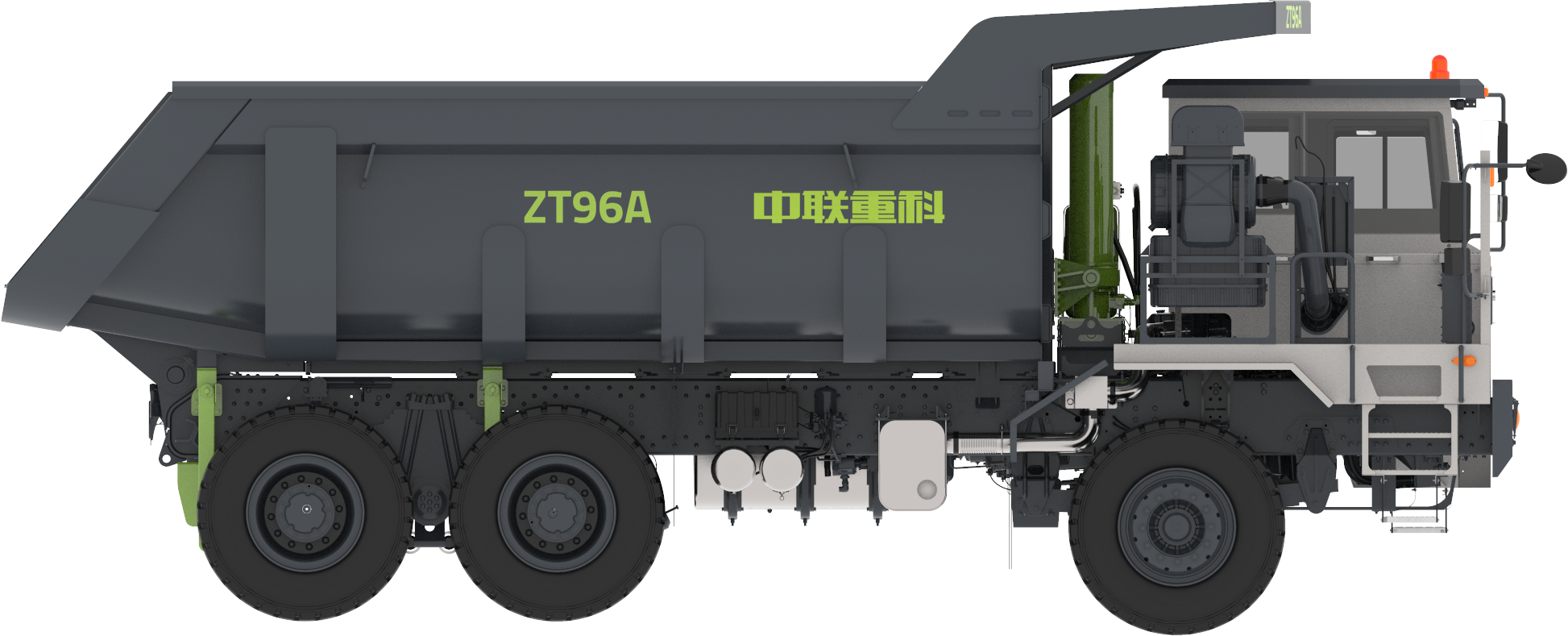

The ZT96A(MT)/ZT96A(AT) dump trucks are flagship models of Zoomlion Heavy Industry Science and Technology Co., Ltd. They are fitted with the Yuchai YC6K480-GT30 engine. The ZT96A(MT) is equipped with an 8-speed high-torque manual transmission, while the ZT96A(AT) uses a 6-speed high-torque flexible automatic transmission. Both models feature a double-layer riveted reinforced frame (four-layer structure in partial areas), high-speed ratio drive axles and a U-shaped cargo body with an upturned tail. The drive configuration is 6×4.

ZT96A
ZT96A
ZT96A
ZT96A
ZT96A
  • images
  • 353 kW
    Engine Power
  • 36
    Body Capacity
  • 62000 kg
    Rated Payload
  • 30000 kg
    Curb Weight
  • 353 kW
    Engine Power
  • 36
    Body Capacity
  • 62000 kg
    Rated Payload
  • 30000 kg
    Curb Weight
ZT96A
ZT96A
ZT96A
ZT96A
ZT96A
  • images
Advantage introduction

    The axle housing is made of new materials and processed by advanced technology to ensure the reliable operation of the whole machine. The assembly has high strength, strong load-bearing capacity, and resistance to impact load, which is not easy to deform.

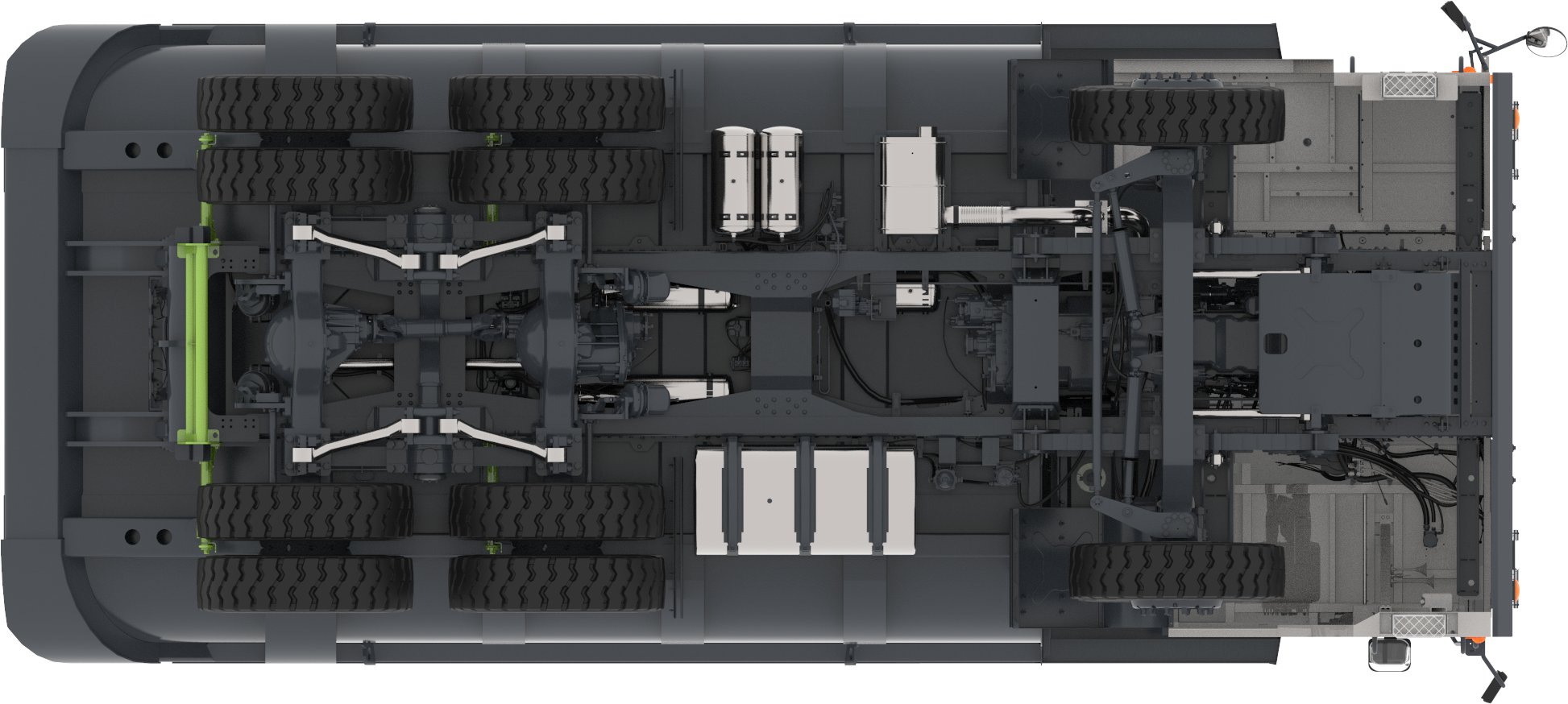

    The non-independent front suspension enables reliable wheel alignment, and stable and comfortable driving. The leaf springs and double acting cylinder shock absorbers of the front suspension allow for smooth and comfortable driving experience. The intermediate and rear axles are connected to the frame through leaf springs and rods, which can adapt to changes in load and road conditions, ensuring high reliability.



    The offset narrow-body cab provides a wide field of vision. It is fully equipped with display instruments, alarms, lightings, control switches, radios, electric wiper and washer, air conditioner (cool & warm) and adjustable shockabsorbing seat.

More Advantages
Param

Main   Parameters

Unit

Value

Curb weight

t

30

Rated payload

t

62

Max. speed

km/h

41

Max.   gradeability

%

33

Min. turning   radius

m

12

Capacity   (struck)

30

Capacity (heaped   2:1)

36

Tires

/

14.00R25

Engine model

/

YC6K480-GT30

Engine   displacement

L

12.16

Emission standard

/

China Non-road   Stage III

Rated power

kW

353

Max. torque

N · m/rpm

2200 N ·   m/1100~1500 r/min

Transmission   (MT)

/

Z8S240A

Steering system

/

Fully hydraulic
