ZS1212AC

AC/AC-Li Scissor Series

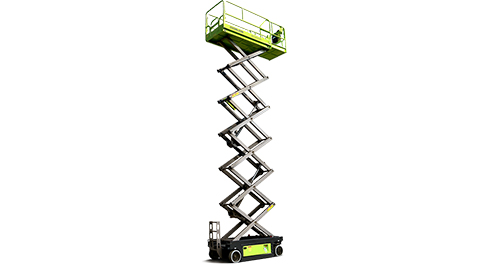

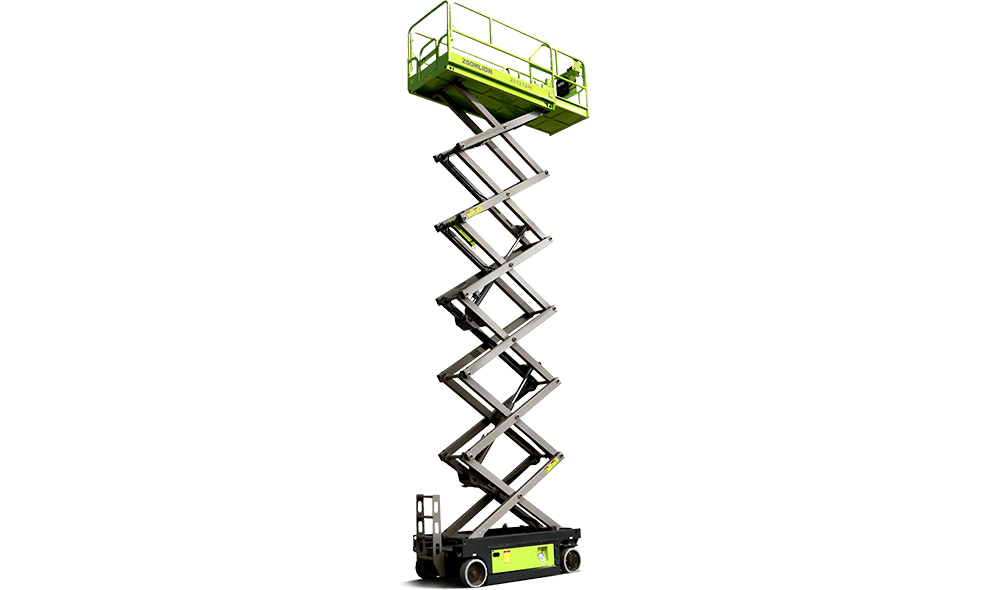

ZS1212AC

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.

Get Pricing

images

13.80 m

Work Height
0.91 m

Platform Extension
2.13 m

Overall Height (Rails Down)
350 kg

Platform Capacity

13.80 m

Work Height
0.91 m

Platform Extension
2.13 m

Overall Height (Rails Down)
350 kg

Platform Capacity

images

Advantage introduction

High Performance

AC system offers higher working efficiency;
IP67 rated waterproof protection on AC wheel motorsfor longer lifespan

Cost Effectiveness

Knuckles lubrication-free and maintenance-free;
AC motor full lifecycle maintenance-free;
Swing-out tray easy to service.

More Advantages

Metric / Imperial

Size

Performance

Power

Weight

Features

Work Height	13.80m/10m
A - Platform Height-Elevated	11.80m/8m
B - Platform Height-Stowed	1.52m
C - Platform Length	2.30m
D - Platform Width	1.12m
Platform Extension	0.91m
E - Overall Height (Rails Up)	2.66m
Overall Height (Rails Down)	2.13m
F - Overall Length	2.49m
G - Overall Width	1.15m
H - Wheelbase	1.85m
I - Ground Clearance (Stowed)	0.11m
J - Ground Clearance (Raised)	0.02m

Platform Capacity	350kg
Capacity on Deck Extension	113kg
Max. Number of Workers	3/1 (CE) 2/1 (ANSI)
Drive Speed (Stowed)	4km/h
Drive Speed (Raised)	0.8km/h
Turning Radius (Inside)	0.1m
Turning Radius (Outside)	2.2m
Lifting Motor	24V/3.3KW
Drive Motor	2x0.75KW
Up/Down Time	62s/42s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф381mm×127mm

Gross	3000kg

Work Height	45ft 3in/32ft 10in
A - Platform Height-Elevated	38ft 9in/26ft 3in
B - Platform Height-Stowed	4ft 12in
C - Platform Length	7ft 7in
D - Platform Width	3ft 8in
Platform Extension	3ft
E - Overall Height (Rails Up)	8ft 9in
Overall Height (Rails Down)	6ft 12in
F - Overall Length	8ft 2in
G - Overall Width	3ft 9in
H - Wheelbase	6ft 1in
I - Ground Clearance (Stowed)	4.5in
J - Ground Clearance (Raised)	0.75in

Platform Capacity	770lb
Capacity on Deck Extension	250lb
Max. Number of Workers	3/1 (CE) 2/1 (ANSI)
Drive Speed (Stowed)	2.5mph
Drive Speed (Raised)	0.5mph
Turning Radius (Inside)	4in
Turning Radius (Outside)	7ft 3in
Lifting Motor	24V/3.3KW
Drive Motor	2x0.75KW
Up/Down Time	62s/42s
Gradeability	25%(14°)
Max. Working Slope (Lateral/Vertical)	1.5°/3°
Control	Proportional Control
Drive	Front Wheels
Brake	Front Wheels
Tire	ф15in×5in

Battery	4×6V/220Ah(HOPPECKE) 4×12V/270Ah(QUIMO)
Charger	24V/30A
Charger (Option)	-

Gross	6615lb

Gross

6615lb

Standard

Proportional controls

All motion alarm

Fold-down handrails

Flashing beacon

Self-closing entry gate

Horn

Load sensing system

Autobrake system

Emergency descent system

Emergency stop button

On-board diagnostic

Over tilt protective system

Active pothole protection system

AC power to platform

Drivable at full height

Hour meter

Extension deck (unidirectional)

Charging protection system

Scissor maintenance prop

Forklift pockets

Option

Platform work lights

Airline to platform

Overhead protection bar
