PL1604
PL1604
Tractor

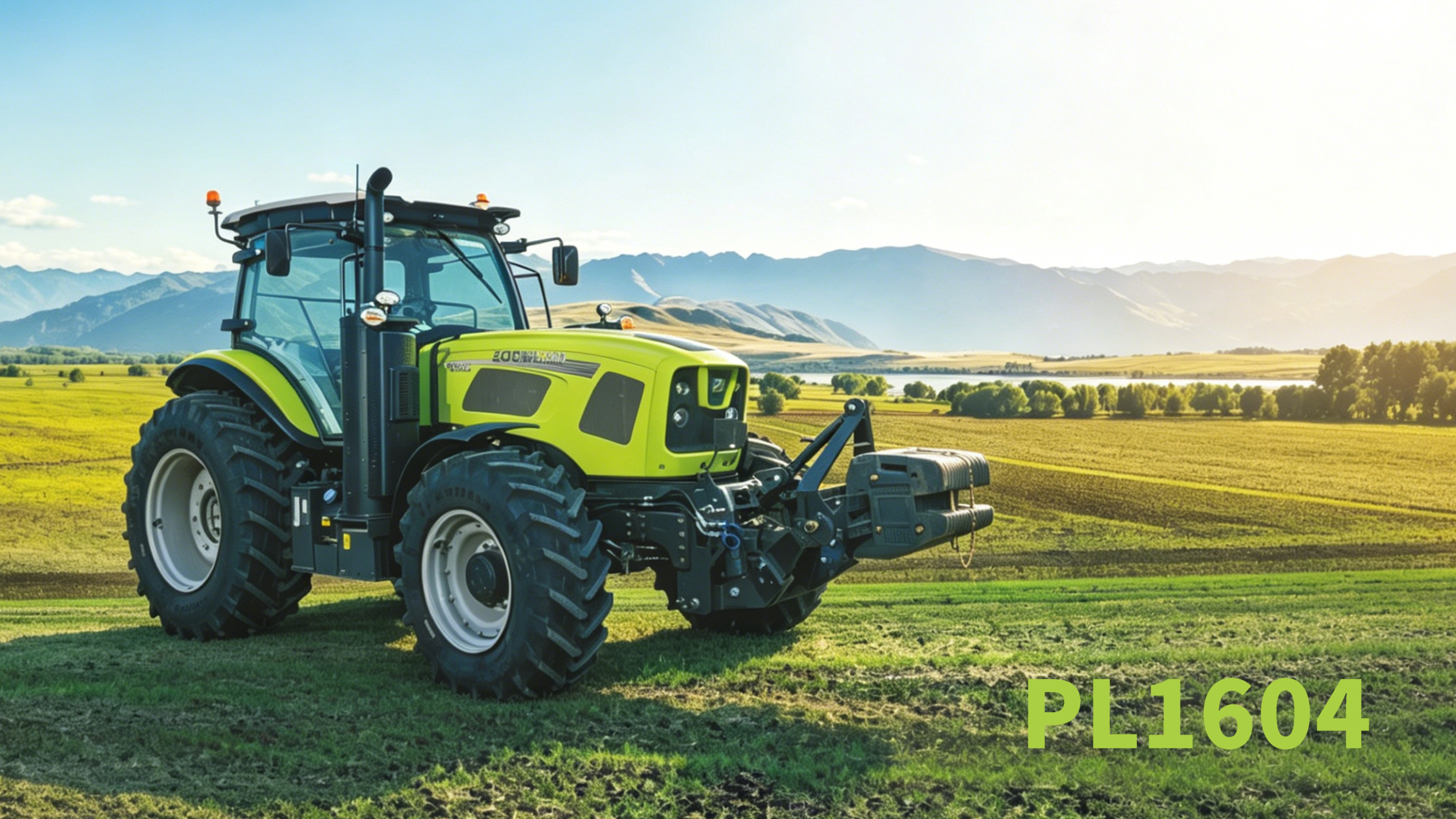

PL1604

A mid-to-high-end, multi-purpose power shift tractor designed for tillage, PTO-powered, seeding, harvesting, cultivation and transport operations in dryland farming.

  • 160 HP
    Hoesepower
  • 375 L
    Fuel tank capacity
  • 48F+24R /
    Gear configuration
  • 160 HP
    Hoesepower
  • 375 L
    Fuel tank capacity
  • 48F+24R /
    Gear configuration
Advantage introduction
    •  High reliability: The tractor is equipped with a Yuchai six-cylinder high-pressure common rail engine, a ZF imported chassis, a Carraro front axle, a Laoka suspension system, and Rexroth hydraulic valves, ensuring high overall reliability.

    • High operational efficiency: With a 48F+24R power shift transmission featuring high gear density and power shuttle, the tractor offers an operational speed range of 0.36-40 km/h, adapting to various working conditions.

    • Electro-hydraulic operation: The electronically controlled hydraulic system is equipped with four sets of remote hydraulic valves, delivering a hydraulic flow capacity of 114 L/min. The flow rate and timing can be individually programmed to meet the demands of various working conditions. It supports the traction and driving operations of high-end and large-scale combined implements.

    • Comfortable driving experience and convenient operation: The tractor features a 10.1-inch touch-sensitive color LCD bus instrument panel that displays real-time vehicle information. The concise fault alarm interface facilitates efficient and convenient human-machine interaction.

More Advantages
Param
ModelPL1604
ParameterUnitValue/Specification
Engine
Brand/Model/YCA07165-E500
Engine type/Vertical, direct injection, water-cooled, four-stroke
Torque reserve%40.00%
Fuel tank capacityL375
Drivetrain
Transmission type/Range power shift
Gear configuration/48F+24R
Speed rangekm/h0.36~40 (forward); 0.4~40 (reverse)
Min. turning radiusm6.3+0.5
Hydraulic System
Hydraulic flow rateL/min114
Remote hydraulic valves (sets)set4
Rear Hitch System
Hitch type and category/Rear-mounted three-point hitch, category 3
Hitch lift capacity max. 610 mm behindkN57.5
Power Take-off (PTO)
PTO speed optionsr/min540/1000
Brake System
Air brake/Dual-circuit air brake
Weight
Max. operating weightkg8580
Dimensions
L × W × Hmm6308x2290x3070 (w/ front loader)
Wheel basemm2860
Wheel track (front/rear)mm1900/1860
Min. ground clearancemm355
Tire Configuration
Front wheel - rear wheel (radial tires)Standard configuration420/85R28 (front); 520/85R38 (rear)
