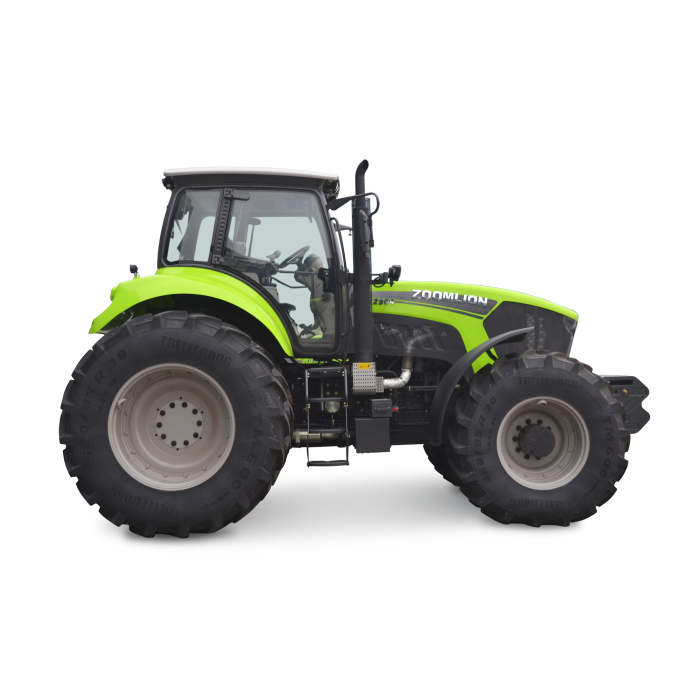

PL2304
PL2304
Tractor
PL2304

A heavy-duty power shift tractor developed for family farms, large-scale farming operations and agricultural service providers engaged in intensive tillage, seeding, forage harvesting, spraying, transport and high-draft applications in dryland farming.

PL2304
PL2304
PL2304
PL2304
PL2304
PL2304
PL2304
  • images
PL2304
PL2304
PL2304
PL2304
PL2304
PL2304
PL2304
  • images
Advantage introduction
    • Powerful performance: Equipped with a high-torque engine featuring a 27% torque reserve, coupled with a hydraulic system that delivers a 62 kN lift capacity measured at 610 mm behind hitch.

    • Excellent maneuverability: Equipped with a ZF-imported 40F+40R transmission, offering effortless gear selection and automation functions that significantly improve operational efficiency and adaptability across varying working conditions.

    • Enhanced operator comfort: Features a deluxe cab with excellent visibility, low noise levels, ergonomic controls, and a highly comfortable working environment.

    • Intelligent control: Factory-prepared for an automatic guidance system capable of delivering ±2.5 cm steering accuracy, substantially improving field efficiency.

More Advantages
Param
ModelPL2304
ParameterUnitValue/Specification
Engine
Brand/Model/Weichai WP7
Engine type/Inline, direct-injection, water-cooled, four-stroke, turbocharged engine
Torque reserve%27
Fuel tank capacityL400
Drivetrain
Transmission type/Range power shift
Gear configuration/40F+40R
Speed rangekm/h0.4-40
Min. turning radiusm6.8
Hydraulic System
Hydraulic flow rateL/min160
Remote hydraulic valves (sets)set5
Rear Hitch System
Hitch type and category/Rear-mounted three-point hitch, category 3
Hitch lift capacity max. 610 mm behindkN62
Power Take-off (PTO)
PTO speed optionsr/min540E/1000N/1000E
Brake System
Air brake/Dual-circuit air brake
Weight
Max. operating weightkg10165
Dimensions
L × W × Hmm6230X2845X3400
Wheel basemm3085
Wheel track (front/rear)mm2130/2200
Min. ground clearancemm420
Tire Configuration
Front wheel - rear wheel (radial tires)Standard configurationFront: 540/65R30
Rear: 650/65R42
