PV3204
PV3204

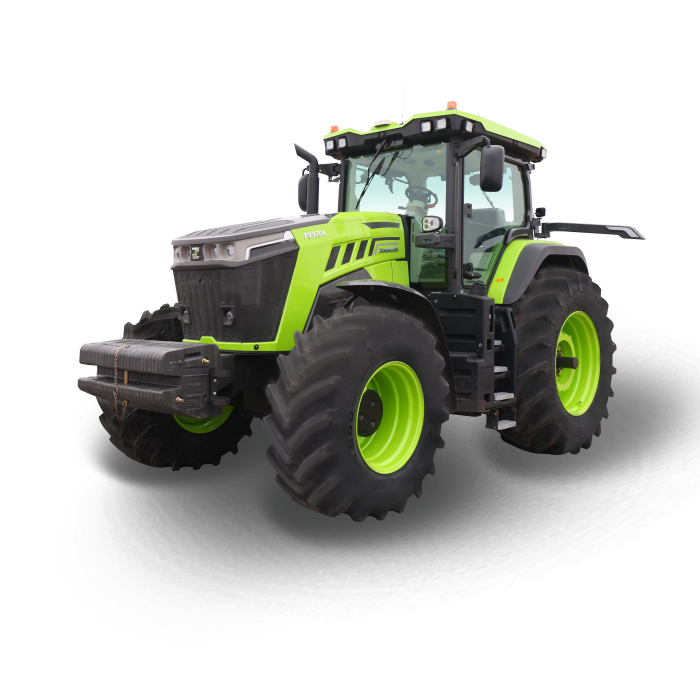

Tractor
PV3204

A mid-to-high-end tractor designed for family farms, large-scale farming operations and agricultural service providers engaged in intensive tillage, seeding, harvesting, crop management, transport, and PTO-powered operations.

PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
  • images
  • 320 HP
    Horsepower
  • 630 L
    Fuel tank capacity
  • 48F+24R /
    Gear configuration
  • 320 HP
    Horsepower
  • 630 L
    Fuel tank capacity
  • 48F+24R /
    Gear configuration
PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
PV3204
  • images
Advantage introduction

    1. Outstanding reliability:

    • Powered by a 6-cylinder, high-pressure common-rail engine with a rated output of 235 kW. Large-capacity 630 L fuel tank provides at least 12 hours of non-stop operation under full-load conditions.

    2. Versatile performance and high productivity:

    • Equipped with a 48F+24R power shift transmission with creeper gears, featuring high gear density and power shuttle, the tractor offers an operational speed range of 0.33-36.37 km/h, adapting to various field conditions.

    3. Intelligent hydraulic system for precise control:

    • Electro-hydraulic system with four remote hydraulic valves and 200 L/min hydraulic flow capacity. Electronic hitch control with draft and position control delivers a maximum lift capacity of 80 kN, making it ideal for high-end, high-capacity combination implements.

    • Equipped with auto-guidance and ISOBUS.

    4. Smart cab for maximal comfort and efficiency:

    • The tractor features a 10.1-inch touch-sensitive color LCD bus instrument panel that displays real-time vehicle information. Integrated 360° surround-view camera system enhances visibility, simplifies implement hitching, and improves operational safety.

More Advantages
Param
ModelPV3204 (Russia)PV3204 (Brazil)
ParameterUnitValue/SpecificationValue/Specification
Engine
Brand/Model/YCK09320-S300YCK09320-M300
Engine type/6-cylinder inline, turbocharged, high-pressure common rail engine
Torque reserve%45%
Fuel tank capacityL630
Drivetrain
Transmission type/Partial power shift
Gear configuration/48F+24R
Speed rangekm/h0.33~36.37
Min. turning radiusm7.3±0.3
Hydraulic System
Hydraulic flow rateL/min200
Remote hydraulic valvesset5
Rear Hitch System
Hitch type and category/Rear-mounted three-point suspension, category 4N
Hitch lift capacity max. 610 mm behindkN80
Power Take-off (PTO)
PTO speed optionsr/min540/540E/1000
Brake System
Air brake/Dual-circuit air brake
Weight
Max. operating weightkg13710
Dimensions
L × W × Hmm6000×2930×3490
Wheel basemm3090
Wheel track (front/rear)mm2130/2200
Min. ground clearancemm500
Tire Configuration
Tires (front/rear)/600/70R30 (front duals); 710/70R42 (rear duals)
