PQ Series
PQ Series
Tractor
PQ Series

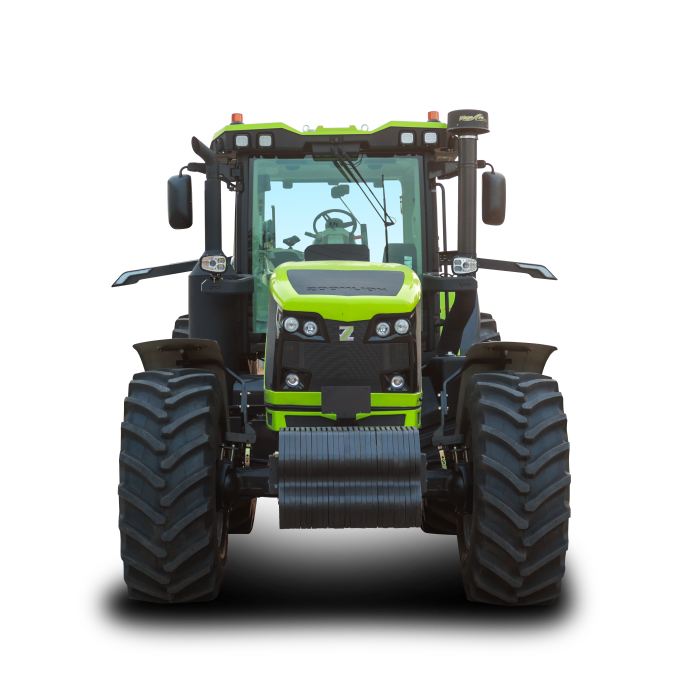

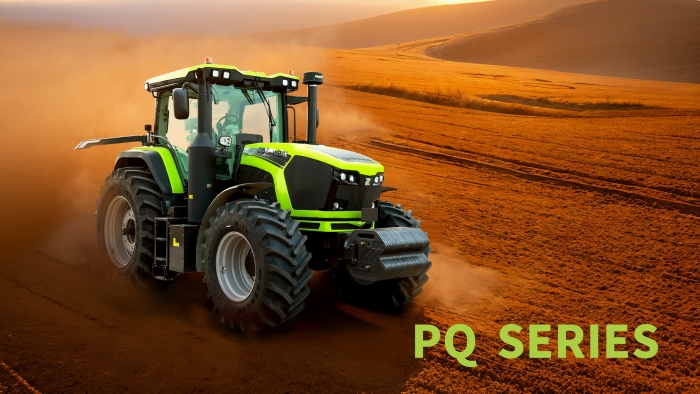

A range of high-horsepower tractors designed for family farms, large-scale farming operations, and agricultural service providers, delivering outstanding performance across diverse field conditions and farming applications.

PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
  • images
  • 260/275 HP
    Horsepower
  • 630 L
    Fuel tank
  • 48F+24R /
    Gear configuration
  • 260/275 HP
    Horsepower
  • 630 L
    Fuel tank
  • 48F+24R /
    Gear configuration
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
PQ Series
  • images
Advantage introduction
    • Powerful performance: Powered by an engine delivering 39.3% torque reserve, providing rapid power response under heavy draft loads and fluctuating field conditions.

    • High-efficiency driveline: Equipped with a 48F+24R transmission with operating speeds ranging from 0.24–38.85 km/h. High gear density enables improved fuel economy and enhanced versatility across a broad range of applications.

    • Excellent fuel endurance: Large-capacity 630 L fuel tank supports up to 13 hours of continuous operation on a single fill.

    • Enhanced operator comfort: Air-suspension seat with adjustable height, fore-aft position, suspension stiffness and backrest angle for maximal operating comfort.

    • Intelligent control: Features ergonomically designed multi-function armrest with adjustable height and integrated machine controls. Electro-hydraulic operation allows hydraulic functions to be controlled via buttons, switches and rotary dials for greater precision and ease of use.

    • Low-maintenance design: Equipped with an air intake system featuring an internal dry-type air filter and external pre-cleaner. 9.6 kg dust-holding capacity extends service intervals and ensures reliable operation in harsh, dusty field environments.

More Advantages
Param
ModelPQ2604PQ2754
ParameterUnitValue/SpecificationValue/Specification
Engine
Brand/Model/YCK09300-T301YCK09320-T300
Engine type/6-cylinder inline, turbocharged, high-pressure common rail engine
Torque reserve%39.30%45.00%
Fuel tankL630
Drivetrain
Transmission type/Range power shift
Gear configuration/48F+24R
Speed rangekm/h0.24-38.85
Min. turning radiusm7±0.3
Hydraulic System
Hydraulic flow rateL/min120
Remote hydraulic valves (sets)set5
Rear Hitch System
Hitch type and category/Rear-mounted three-point hitch, category 3
Hitch lift capacity max. 610 mm behindkN72
Power Take-off (PTO)
PTO speed optionsr/min540/540E/1000
Brake System
Air brake/Dual-circuit air brake
Weight
Maximum operating weightKG12150
Dimensions
L × W × Hmm5880×2925×3490
Wheel basemm3085
Wheel track (front/rear)mm2200/2200
Min. ground clearancemm510 (under the lower edge of the towing hitch)
Tire Configuration
Tire (front/rear)Standard configuration600/70R30
710/70R42
