Four wheel drive
130/16o HP Six-cylinder high-pressure common - rail National Ill engine High-strength steel for chassis, chassis performance improved by 30%
5.8m turning radius
16F+8R Meshing sleeve gearshift
Hydraulic-driven steering system(add priority valve) Luxury AC Cab , more comfortable operation

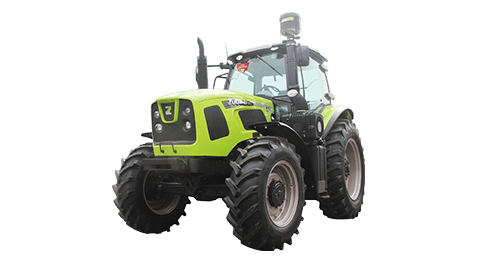

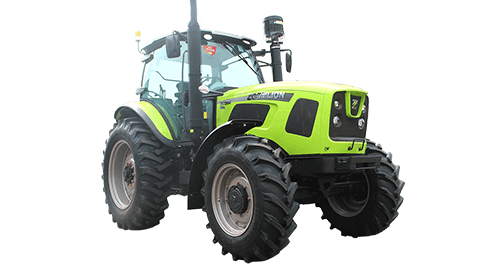

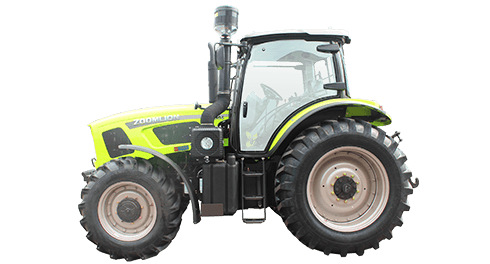

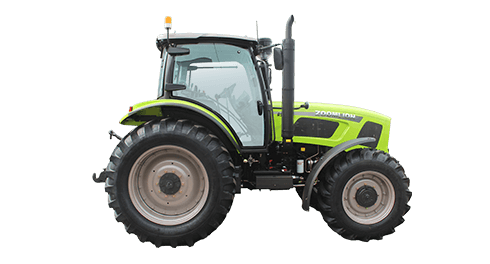

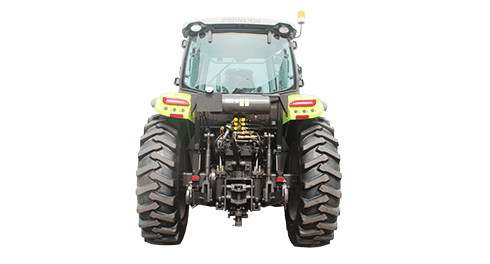

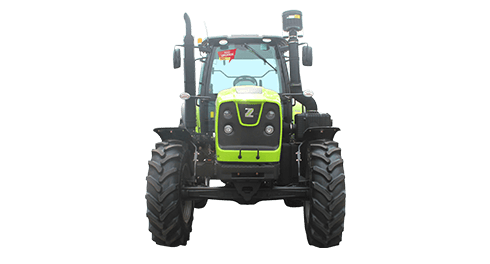

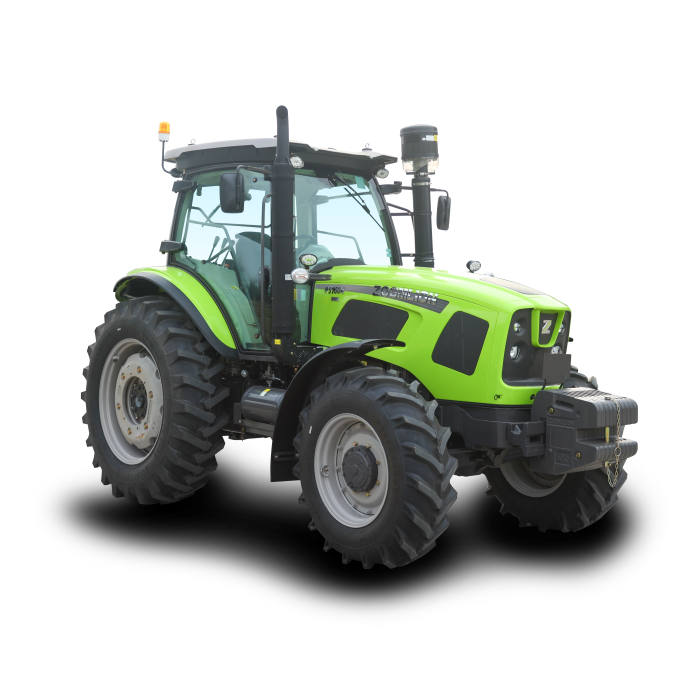

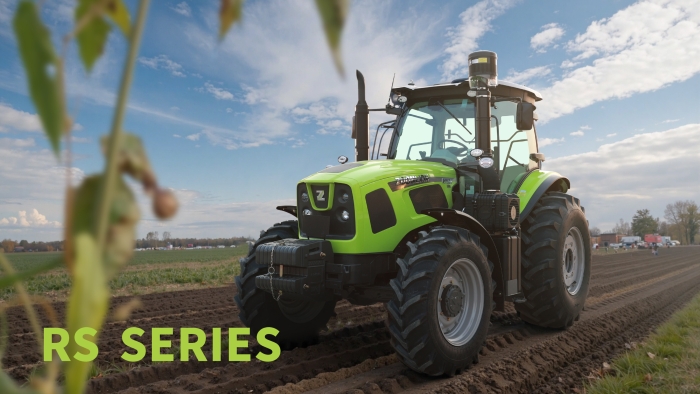

The RS series tractor is a versatile, general-purpose machine that is compact, lightweight, powerful, andhighly maneuverable.
With a horsepower range of 130-160 HP, it offers rich configurations and strong power, making it especiallysuitable for light tillage, seeding, transportation, and harvesting operations.
The RS series is equipped with a 6-cylinder turbocharged water-cooled engine featuring BOCH high-pressure common rail fuel controltechnology, ensuring better fuel efficiency. it boasts a torque reserve of 37% and a maximum torque of 920N.m.
The engine meets China l emission standards. With a minimum operating weight of 6500 kg, it can beeq uipped with an additional 1340 kg counterweight, enhancing traction and work efficiency.
The RS series tractors have obtained EAc, E-mark, OEcD, and LCVM certifications, demonstrating outstanding quality that stands the test of time.
The RS series comes with a 16F+16R partially synchronized transmission, with an optional 24F+8R fulysynchronized gearbox.
lt achieves a m aximum speed of 33.06 km/h, while the optional crawler gear allows fora minimum speed of 0,45 km/h, the forward and reverse gears are conveniently controled by a lever locatedbeside the steering wheel, making operation easy and efficient.It features an electronicallv controlled armrest, an intelligent digital instrument panel, and real-time monitor.ing of the tractor's status.
The electronic control work system helps you handle intensive farm work withease. lt comes standard with 3 hydraulic output groups, with additional groups available as options.
The hydraulic pump provides a standard output of 50L/min, with an optional 100L/min output. The three-pointhitch has a minimum lifting force of 28200 kg @ 610mm.
The Zoomlion Aurora cabin is designed for maximum comfort, featuring an air suspension seat and a largeintelligent display. lt supports 360° rearview imaging, one-touch lifting, assisted driving, and other smartoperation technologies.
The high-performance air conditioning system ensures a comfortable workingenvironment with excellent air filtration, allowing you to breathe dean and healthy air at all times.
Zoomlion's global subsidiary company, our service personnel and spare parts warehouses are strategicallylocated around the world, You can easily find a full range of spare parts and repair tools in our warehousesWe also provide professional service training and sales training, ensuring you receive the best supportpossible.
Model | Unit | RS1304/1604 | RS1304/1604(2025 new) |
Dimensions (L x W x H) | mm | 5200×2435×3250 | |
Wheelbase | mm | 2640 | |
Minimum usable mass | kg | 5810 | 6500 |
Minimum ground clearance | mm | 450 | 490 |
Engine emissions | / | National III | |
Calibrated power | kW | 95.5/117.6 | |
Fuel consumption rate | g/kW•h | ≤250 | |
Clutch type | / | Dry, independently operated double action | |
Number of gears in the gearbox | / | 16F+8R | 24F+8R |
Tyre size (front/rear) | / | 14.9-26/18.4-38 | |
Hydraulic lifting system type | / | Lifting device with separated unites | |
Maximum lifting force | kg | 28200(@610mm) | |
Tillage depth control method | / | Position control | Draft and position controlby elec-hydraulic |
Hydraulic output multi-way valves | / | 3 groups | |
Hydraulic suspension mechanism | / | Three-point rear suspension, Class III | |
Calibrated traction | kN | 51 | |
PTO power output | kW | 85/105 | |
Power output speed | r/min | 540/1000 | |
Safety rack or cab | / | Air-conditioned cab |
Wheelbase | 2640mm |
Minimum ground clearance | 450mm |
Rated power | 95.6/117.6kW |
Number of gears of the gearbox | 16F+8R Meshing sleeve gearshift |
Maximum lifting capacity | ≥35KN |
Traction force | 51KN |
PTO output power | 85/105kW |
Power output speed | 540/1000 |
