ZL145
ZL145

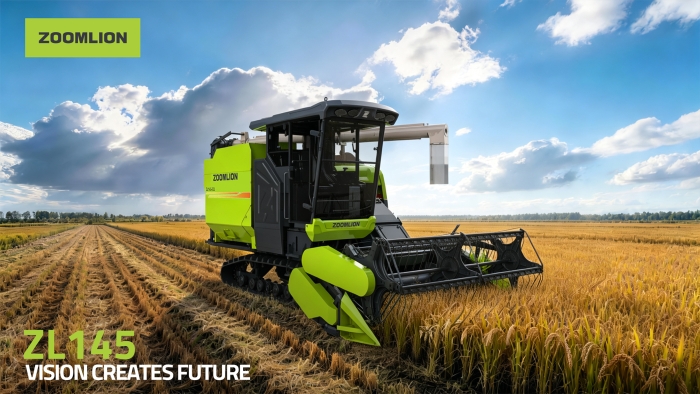

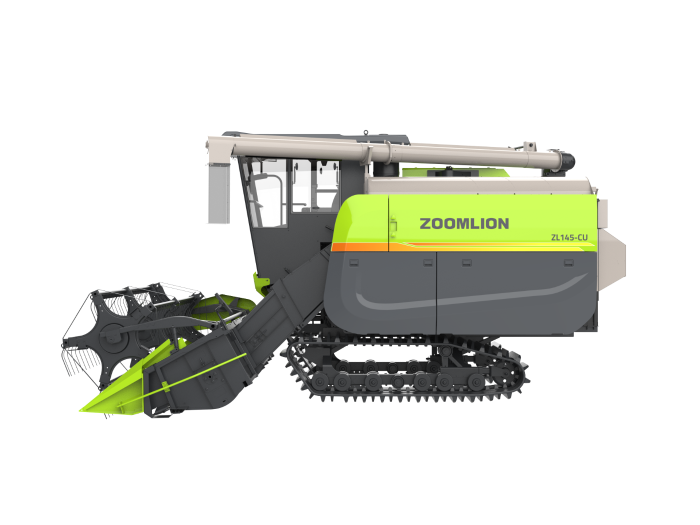

Combine Harvester
ZL145

A 140 hp combine harvester designed for harvesting operations in large-scale fields.

ZL145
ZL145
ZL145
ZL145
ZL145
  • images
  • 4510 kg
    Operating weight
  • 103{140} kW/PS
    Power/Horsepower
  • 210 L
    Fuel tank capacity
  • 4510 kg
    Operating weight
  • 103{140} kW/PS
    Power/Horsepower
  • 210 L
    Fuel tank capacity
ZL145
ZL145
ZL145
ZL145
ZL145
  • images
Advantage introduction
    • Powerful performance: Powered by a renowned domestic-brand 120/140 hp engine delivering outstanding performance. Equipped with a 56 cc HST and reinforced YD100 transmission, providing ample power reserve, high torque output and stable performance under load.

    • Superior field performance: With a travel speed of up to 2.5 m/s and a 2.4/2.56 m header, this model achieves best-in-class harvesting efficiency. Equipped with a high-efficiency threshing and cleaning system featuring a 2.2 m extended threshing cylinder and a high-performance airflow-air-and-sieve cleaning shoe, reducing grain loss to as low as 1.5%.

    • Excellent maneuverability: Designed for superior mobility and field performance. 350 mm ground clearance and 550 × 90 × 58 high-lug rubber tracks deliver low ground pressure and superior mobility in muddy fields.

    • Enhanced reliability: Reinforced chassis and bogie-style track system provide improved load distribution and extended service life. Critical bearings utilize imported PEER components, while Key wear components are manufactured from highly wear-resistant materials.

    • Excellent fuel endurance: Standard large-capacity 210 L fuel tank supports a full day of continuous harvesting operations.

    • Easy operation: Integrated electronic control joystick simplifies machine operation. Electrically controlled unloading auger rotates left and right for convenient unloading. Optional one-touch auger return function further enhances unloading efficiency and operator convenience.

    • Enhanced operator comfort: Equipped with a deluxe A/C cab, a hydraulic reel and hydraulic lateral-shift header. Reel speed can be continuously adjusted to match harvesting speed and crop conditions.


More Advantages
Param
ZL145 Combine Harvester Spec Sheet
SpecificationUnitDesign Value
VersionSouth America Version
ModelZL145-CUZL145-CU
Overall Dimensions
L × W × Hmm6180×2850×28706180×2850×2870
Operating weightkg45104510
Engine
Model/YC4DK140-T302-DKD9S0YC4DK140-T302-DKD9S0
Type/Inline, vertical, water-cooled, four-stroke engineInline, vertical, water-cooled, four-stroke engine
Power/HorsepowerkW/PS103{140}103{140}
Fuel tank capacityL210210
Travel Drive
Track gaugemm12501250
Width × Pitch × Links/600×90×58 links550×90×58 links
Ground contact length/18851885
Hydrostatic transmission (HST) displacementml/r5656
Travel transmission/100 heavy-duty transmission100 heavy-duty transmission
Min. ground clearancemm350350
Header
Cutting width (tip-to-tip of crop divider)mm28002360
Reel diametermm900900
Number of reel batspcs55
Threshing System
Main threshing cylinder dimensions (outer diameter × length)mmφ620×2200φ620×2200
Unloading System
Grain tank capacity2.0 2.0
Harvesting Performance
Travel speed - low rangem/s0~1.330~1.33
Travel speed - field rangem/s0~1.780~1.78
Travel speed - transport rangem/s0~2.580~2.58
