H7-4500
H7-4500

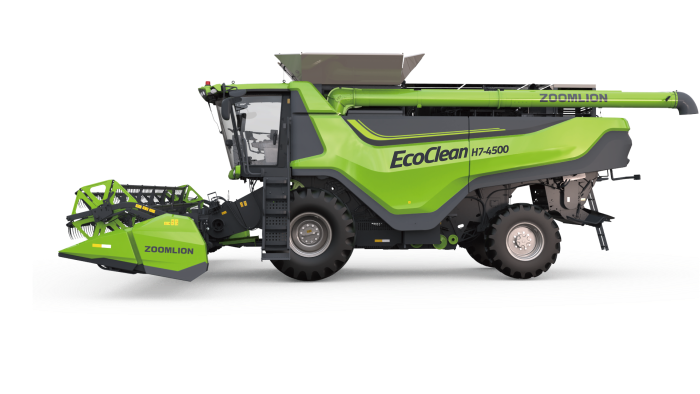

Combine Harvester
H7-4500

An intelligent, high-capacity combine harvester engineered for large-scale farming operations worldwide, delivering low grain loss and superior harvesting efficiency.


H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
  • images
  • 18 kg/s
    Throughput capacity
  • 10790×3790×3950 (without header) mm
    Overall dimensions (without header) (L × W × H)
  • 466 mm
    Min. ground clearance
  • 18 kg/s
    Throughput capacity
  • 10790×3790×3950 (without header) mm
    Overall dimensions (without header) (L × W × H)
  • 466 mm
    Min. ground clearance
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
H7-4500
  • images
Advantage introduction
    • Powerful performance: Powered by a robust 480 hp engine. Three selectable operating modes—Light Duty, Standard, and Heavy Duty—optimize fuel efficiency and field performance.

    • High throughput capacity: up to 18 kg/s.

    • Multi-crop versatility: Compatible with a wide range of headers, enabling efficient harvesting of wheat, corn, soybeans, rice, sunflower, rapeseed and flaxseed.

    • Intelligent harvesting management: Equipped with 13 intelligent sensing and monitoring channels for real-time monitoring of grain loss, grain damage and impurity levels.

    • Threshing & cleaning system: Combines hybrid flexible threshing technology with a dual-layer, dual-airflow cleaning system to maximize crop separation efficiency, maintaining grain loss below 0.6%.

    • Heavy-duty chassis: Features a wheel-track interchangeable running gear, achieving a maximum transport speed of 40 km/h and a gross carrying capacity exceeding 35 tons.

More Advantages
Param
Product SeriesH7-4500
SpecificationsValue/Specification
Machine
Throughput capacitykg/s18
Overall dimensions (without header) (L × W × H)mm10790×3790×3950 (without header)
Operating weight (excluding header)kg18950 (unloaded)
Min. ground clearancemm466
Engine
Model/YC-K11480
Number of cylinderscylinders6
Fuel tank capacityL1000
Threshing & Cleaning System
Structural design/3-stage tangential separation + twin axial rotors
Cylinder (diameter × length)mmΦ600×1440
Cylinder speedr/min330~930
Total separation area3.7
Cleaning system type/Air & sieve cleaning system
Grain Tank
Grain tank capacitym311.5
Unloading rateL/s110
Chassis System
Transmission type/Electro-hydraulic shift + HST
Tires (front/rear)/IF600/70R28 (front)
900/60 R32 (rear)
Drive type/4WD
Header
Rigid grain headerDimensionsm8030×2300×1550
Weightkg2350
Soybean flex headerDimensionsm9800×2820×1600
Weightkg2850
Corn headerDimensionsrows/m12 rows/6300×3190×1210
 12 rows/8150×3190×1210
12 rows/8750×3190×1210
Weightkg3400/4600
Multi-crop headerDimensionsrows/m/
Weightkg/
