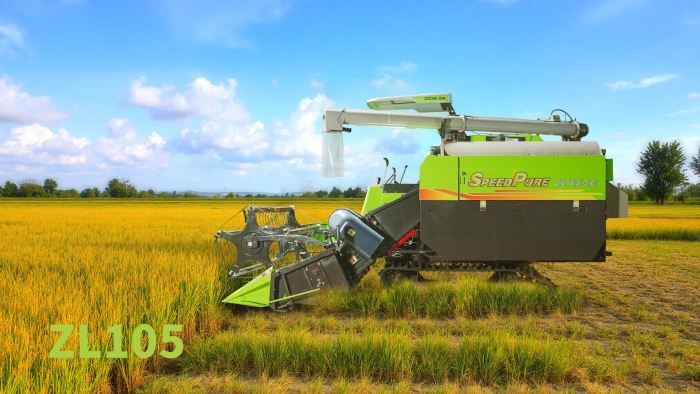

ZL105
ZL105
Combine Harvester
ZL105

A 105 hp combine harvester designed for harvesting operations in medium to large-sized fields.

  • 81{110} kW/PS
    Power/Horsepower
  • 1.7
    Grain tank capacity
  • 81{110} kW/PS
    Power/Horsepower
  • 1.7
    Grain tank capacity
Advantage introduction
    • Powerful performance: Powered by a renowned domestic-brand 105/110 hp engine delivering outstanding performance. Equipped with a 56 cc HST and reinforced YD100 transmission, providing ample power reserve, high torque output and stable performance under load.

    • Superior field performance: With a travel speed of up to 2.5 m/s and a 2.2/2.4 m header, this model achieves best-in-class harvesting efficiency. The grain bagging version delivers a proven field capacity of up to 0.86 ha/h.

    • Equipped with a high-efficiency threshing and cleaning system featuring a 2.0 m extended threshing cylinder and a high-performance airflow-air-and-sieve cleaning shoe, reducing grain loss to as low as 1.5%.

    • Excellent maneuverability: Designed for superior mobility and field performance. 350 mm ground clearance and 550 × 90 × 56 high-lug rubber tracks deliver low ground pressure and superior mobility in muddy fields. ;

    • Enhanced reliability: Reinforced chassis and bogie-style track system provide improved load distribution and extended service life. Critical bearings utilize imported PEER components, while Key wear components are manufactured from highly wear-resistant materials.

    • Excellent fuel endurance: Standard large-capacity 210 L fuel tank supports a full day of continuous harvesting operations.

    • Easy operation: Integrated electronic control joystick simplifies machine operation. Electrically controlled unloading auger rotates left and right for convenient unloading. Optional one-touch auger return function further enhances unloading efficiency and operator convenience.

More Advantages
Param
ZL105 Combine Harvester Spec Sheet
SpecificationUnitDesign Value
VersionStandardIndia Non-standard
ModelZL105-EUZL105-SUZL105-SU
Overall Dimensions
L × W × Hmm5250×3060×30905250×2700×30905250×2570×3090
Operating weightkg3750 (with ballast)39503950 (with ballast)
Engine
Model/YC4FA110LYC4FA110LYC4FA110L
Type/Inline, vertical, water-cooled, four-stroke engineInline, vertical, water-cooled, four-stroke engineInline, vertical, water-cooled, four-stroke engine
Power/HorsepowerkW/PS81{110}81{110}81{110}
Fuel tank capacityL210210210
Travel Drive
Track gaugemm125012501250
Width × Pitch × Links/550×90×56 links550×90×56 links550×90×56 links (60 lug height)
Ground contact length/180018001800
Hydrostatic transmission (HST) displacementml/r565656
Travel transmission/YD100 heavy-duty transmissionYD100 heavy-duty transmissionYD100 heavy-duty transmission
Min. ground clearancemm335335350
Header
Cutting width (tip-to-tip of crop divider)mm240024002240
Reel diametermm900900900
Number of reel batspcs555
Threshing System
Main threshing cylinder dimensions (outer diameter × length)mmφ620×2000φ620×2000φ620×2000
Unloading System
Grain tank capacity0.661.71.7
Harvesting Performance
Travel speed - low rangem/s01.3301.3301.33
Travel speed - field rangem/s01.7801.7801.78
Travel speed - transport rangem/s02.5802.5802.58
