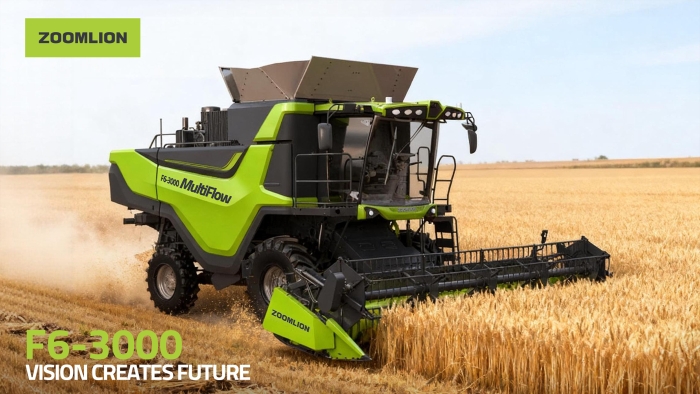

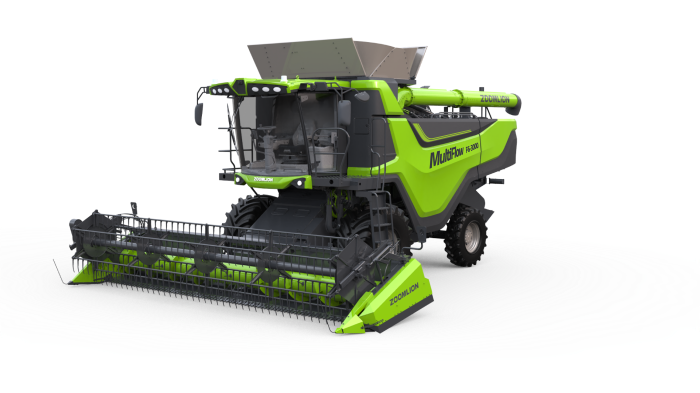

F6-3000

Combine Harvester

F6-3000

A multi-crop, high-efficiency, self-propelled grain combine harvester designed for commercial farms

Get Pricing

images

15 kg/s

Throughput capacity
8225×3650×3975 mm

Overall dimensions (without header) (L × W × H)
13248 kg

Operating weight (excluding header)

15 kg/s

Throughput capacity
8225×3650×3975 mm

Overall dimensions (without header) (L × W × H)
13248 kg

Operating weight (excluding header)

images

Advantage introduction

Faster harvesting speeds, reduced grain loss, superior grain quality retention and stable operation

One machine for multiple harvesting applications: Easily adapts to different crop types without extensive modifications. Maximizes equipment utilization by supporting multiple harvesting seasons throughout the year.

More Advantages

Param

Product Series			F6-3000
Specifications			Value/Specification
Machine
Throughput capacity		kg/s	15
Overall dimensions (without header) (L × W × H)		mm	8225×3650×3975
Operating weight (excluding header)		kg	13248
Min. ground clearance		mm
Engine
Model		/	YCA07K300-T300/YCA08300-S301
Number of cylinders		cylinders	6
Fuel tank capacity		L	605
Threshing & Cleaning System
Structural design		/	Tangential separation +twin axial rotors
Cylinder (diameter × length)		mm	Φ480×3180
Cylinder speed		r/min	368-1137rpm
Total separation area		m²	4.3
Cleaning system type		/	Air & sieve cleaning system
Grain Tank
Grain tank capacity		m³	8.8
Unloading rate		L/s	55
Chassis System
Transmission type		/	/
Tires (front/rear)		/	380/85R26, 750/65R26
Drive type		/	Hydraulic on-demand 4WD
Header
Rigid grain header	Dimensions	m	6.6
	Weight	kg	2150
Soybean flex header	Dimensions	m	5.6
	Weight	kg	1150
Corn header	Dimensions	rows/m	6 rows/8 rows
	Weight	kg	/
Multi-crop header	Dimensions	rows/m	/
	Weight	kg	/
